Tractor · Unverified

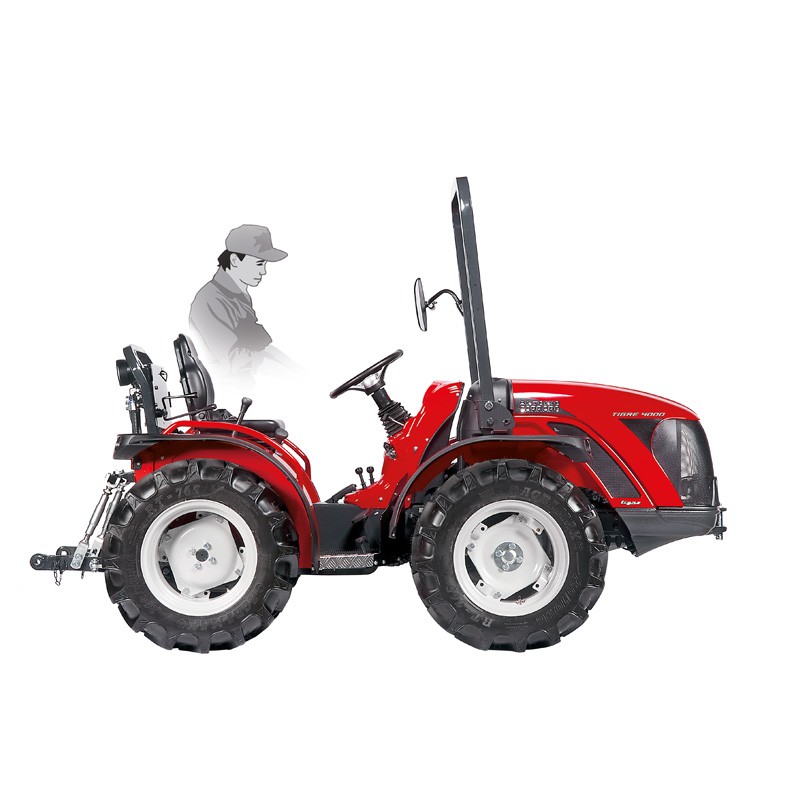

Antonio Carraro Tigre 4000
Antonio Carraro Tigre 4000 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1050 kg
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Compact Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)23.1 kWReference
Yanmar 3TNV82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 84 mmReference
Rated Power (gross)23.1 kWReference
Fuel systemdirect injectionReference
Rated RPM3000Reference
Torque86.1 NmReference
Torque RPM1700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pressure125.0 barReference
Pump flow29.9 lpmReference
Rear TypeIReference
Rear lift850 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase119 cmReference
Weight1050 kgReference
Front tire7.50x16Reference
Rear tire7.50x16Reference
Ag front7.50x16Reference
Ag rear7.50x16Reference
Length284 cmReference
Width110 cmReference
Height (ROPS)191 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
