Tractor · Unverified

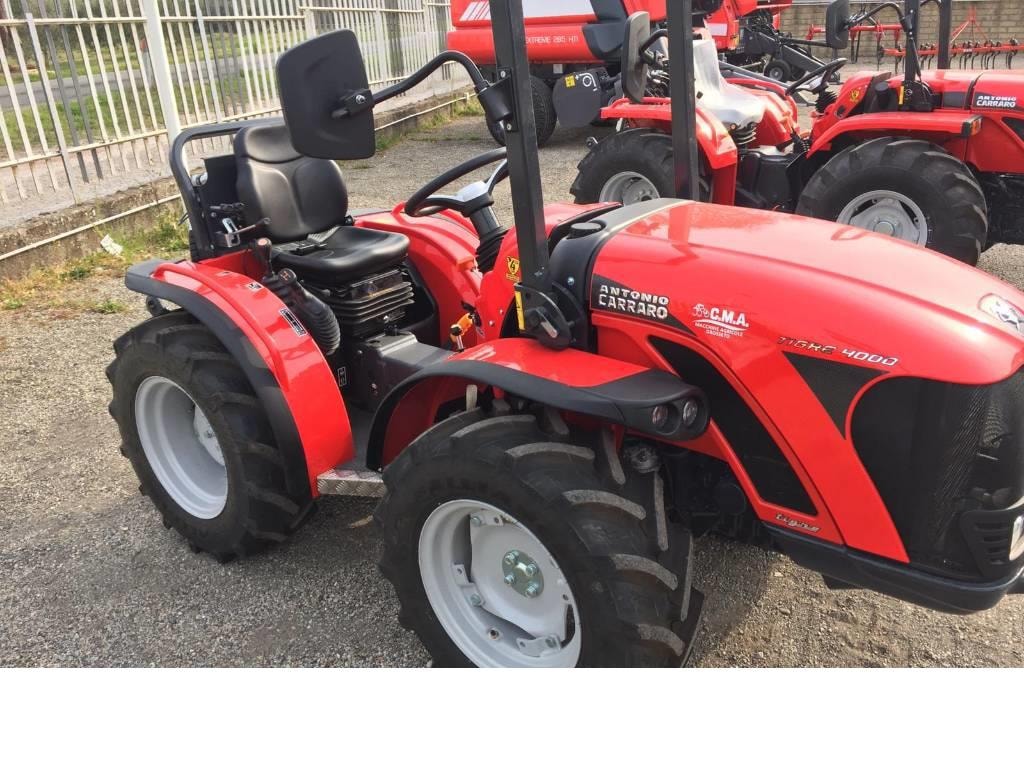

Antonio Carraro Tigre 4000F
Antonio Carraro Tigre 4000F — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1250 kg
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Compact Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)28.3 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Rated Power (gross)28.3 kWReference
Fuel systemdirect injectionReference
Rated RPM3000Reference
Torque111.1 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pressure160.0 barReference
Pump flow29.9 lpmReference
Rear TypeIReference
Rear lift1000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase124 cmReference
Weight1250 kgReference
Front tire7.50x16Reference
Rear tire300/70R20Reference
Standard tires (ag)Front: 7.50x16. Rear: 300/70R20Reference
Length294 cmReference
Width127 cmReference
Height (ROPS)191 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
