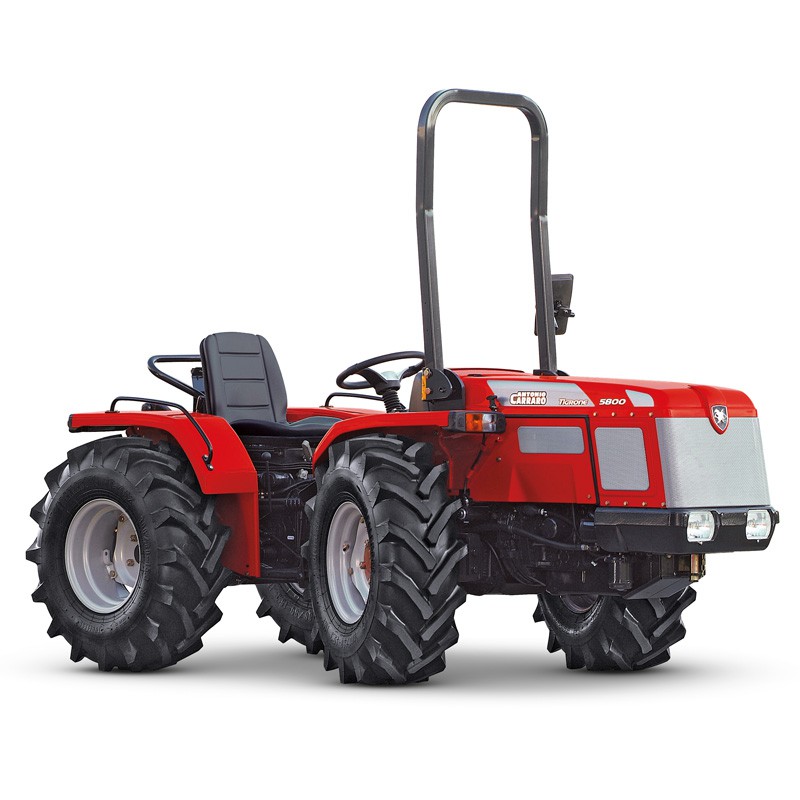

The Antonio Carraro Tigrone 5800 is a compact tractor model with a power rating of 48 hp. It features a 4-cylinder diesel liquid-cooled engine, which drives a four-wheel drive system via an 8-speed gearbox. The tractor has a listed weight of 1549 kg and is suitable for applications involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1549 kg
Catalogue coverage
Variants represented
2
Richest spec table
45 rows
Recorded power
48 hp
Recorded weight
1549 kg
Transmissions
8-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Compact Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)35.8 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
EmissionsStage 3AReference
Rated Power (gross)35.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
Torque140.1 NmReference
Torque RPM1680Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift1999 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase138 cmReference
Weight1549 kgReference
Front tire7.50x16Reference
Rear tire7.50x16Reference
Ag front7.50x16Reference
Ag front8.25x16Reference
Ag front7.50x18Reference
Ag rear7.50x16Reference
Ag rear8.25x16Reference
Ag rear7.50x18Reference
Length313 cmReference
Width123 cmReference
Height (ROPS)205 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
