Tractor · Unverified

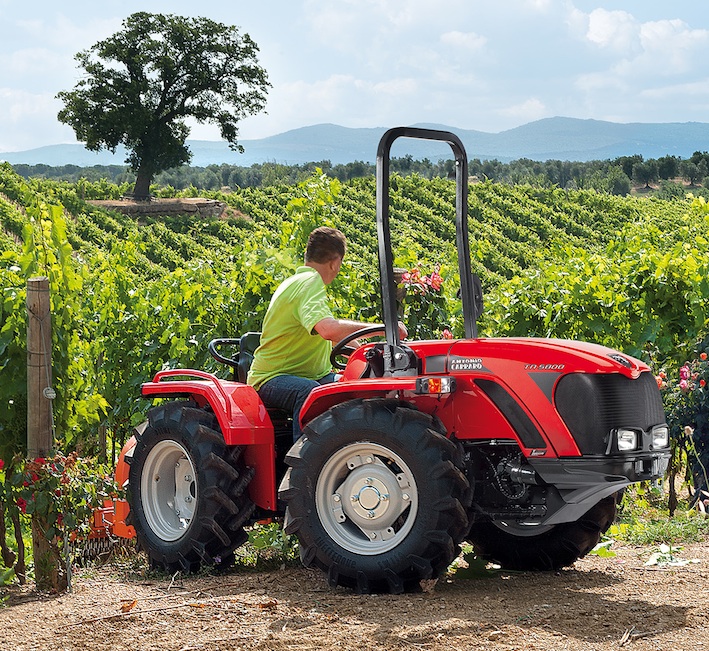

Antonio Carraro Tigrone Jona 5800
Antonio Carraro Tigrone Jona 5800 — Compact Utility tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1599 kg
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Compact Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)35.8 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
EmissionsStage 3AReference
Rated Power (gross)35.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2800Reference
Torque140.1 NmReference
Torque RPM1680Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift2100 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540E/1000 (optional)Reference
Dimensions
Wheelbase138 cmReference
Weight1599 kgReference
Front tire7.50x16Reference
Rear tire7.50x16Reference
Ag front7.50x16Reference
Ag front8.25x16Reference
Ag front7.50x18Reference
Ag rear7.50x16Reference
Ag rear8.25x16Reference
Ag rear7.50x18Reference
Length314 cmReference
Width123 cmReference
Height (ROPS)211 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
