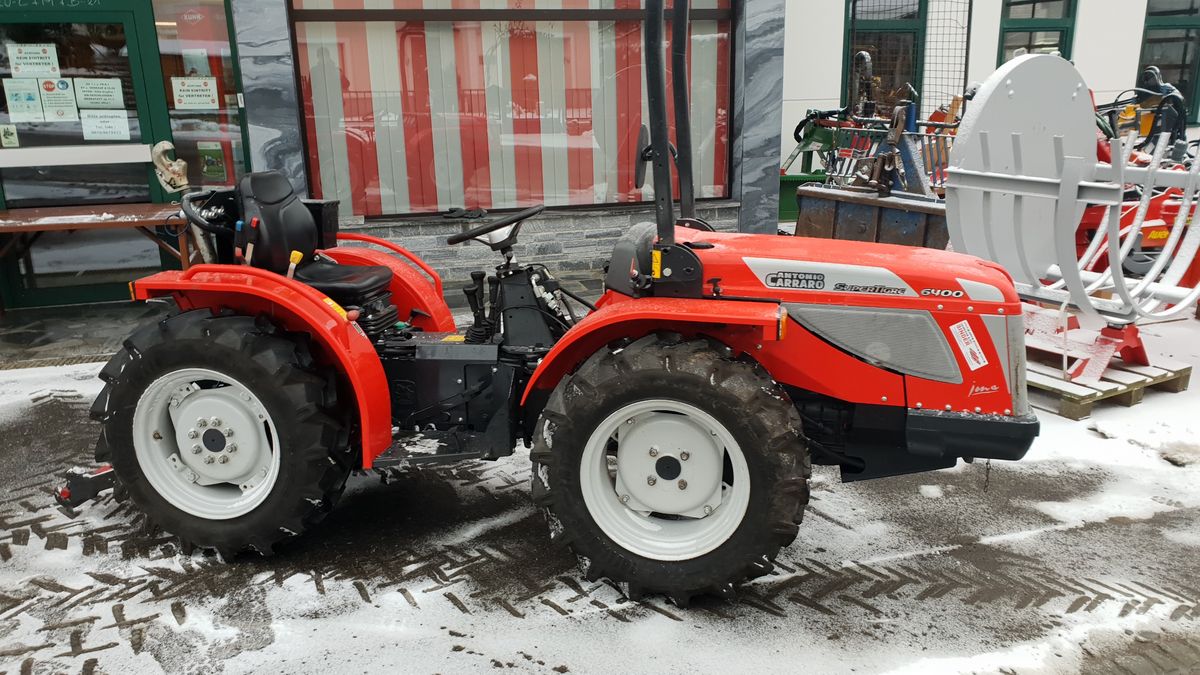

Antonio Carraro Tigrone Jona 6400F
Antonio Carraro Tigrone Jona 6400F — Compact Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
1749 kg
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Compact Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Variants
6400equal-size wheelsReference
6400Funequal size wheelsReference
Engine
VM Motori 2.1L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)41.8 kWReference
VM Motori D703Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke94 x 100 mmReference
EmissionsStage 3AReference
Rated Power (gross)41.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
Torque195.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift1899 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540E/1000 (optional)Reference
Dimensions
Wheelbase146 cmReference
Weight1749 kgReference
Front tire8.25x16Reference
Rear tire280/85R20Reference
Standard tires (ag)Front: 8.25x16. Rear: 280/85R20Reference
Length323 cmReference
Width132 cmReference
Height (ROPS)211 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
