Tractor · Unverified

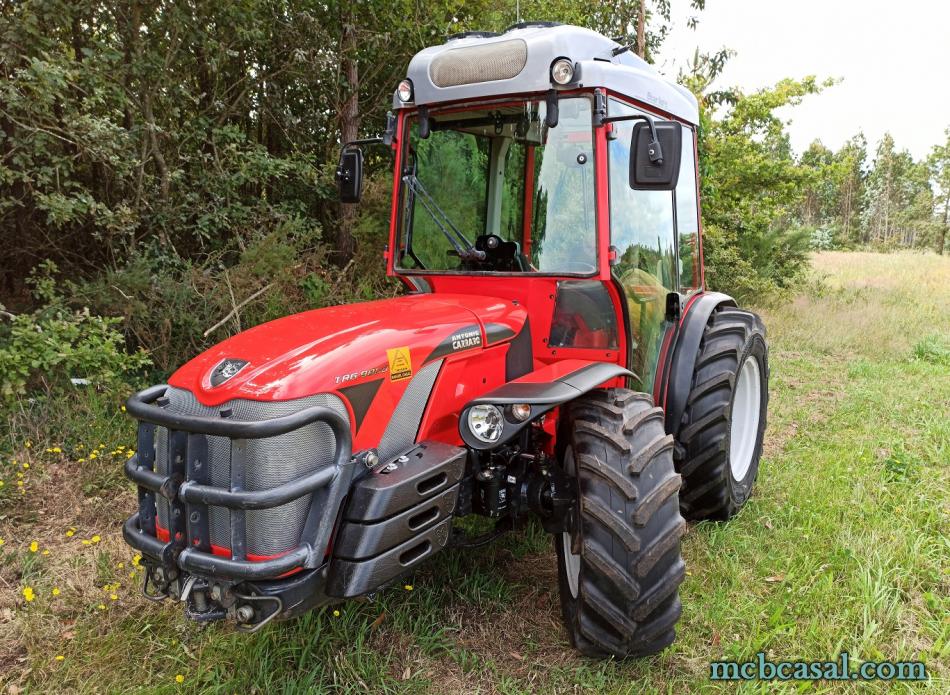

Antonio Carraro TRG 9800

Name: Antonio Carraro TRG 9800
Brand: Antonio Carraro

Antonio Carraro TRG 9800 — Ergit 100 SeriesUtility tractor · 87 hp. Reference specifications; pending source verification.

The Antonio Carraro TRG 9800 is a tractor model with a rated output of 87 hp, placing it within the middle power range of its class. It is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives the four-wheel drive system through a 16-speed gearbox. The listed weight of the TRG 9800 ranges from 5423 to 5490 pounds. This model is designed to handle tasks on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

87 hp

Weight

5423 to 5490 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

87 hp

Recorded weight

2459 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAntonio CarraroReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Differential lockelectro-hydraulic front optionalReference

Steeringhydraulic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional StarLight cab with air-conditioning.Reference

Engine

Yanmar 3.3L 4-cyl dieselReference

Fuel tank60.2 LReference

Engine (gross)64.9 kWReference

YanmarReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

EmissionsStage 3AReference

Rated Power (gross)64.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

Torque286.8 NmReference

Torque RPM1850Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

32-speedReference

Gears16 forward and reverseReference

Gears32 forward and reverseReference

PTO & Hydraulics

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift2399 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase162 cmReference

Weight5423 to 5490 poundsReference

Front tire11.2R20Reference

Rear tire320/85R24Reference

Standard tires (ag)Front: 11.2R20. Rear: 320/85R24Reference

Optional tires (ag)Front: 320/70R20. Rear: 360/70R24Reference

Optional tires (ag)Front: 300/80-15.3. Rear: 360/70R20Reference

Optional tires (ag)Front: 320/65R18. Rear: 420/65R20Reference

Optional tires (ag)Front: 320/70R20. Rear: 420/65R24Reference

Length350 cmReference

Width141 cmReference

Height (ROPS)245 cmReference

Height (cab)232 cmReference

Weight2459 kgReference

Weight2490 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
