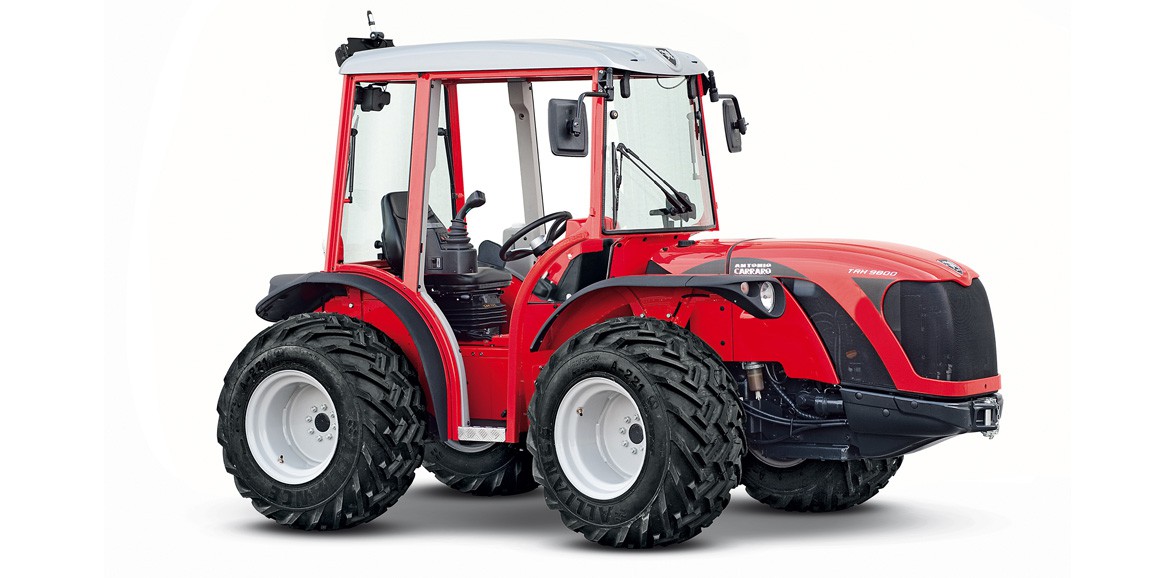

Antonio Carraro TRH 9800
Antonio Carraro TRH 9800 — Ergit 100 SeriesUtility tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5104 to 5456 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional six-post ROPS canopy frame with windscreen. Optional StarLight cab with air-conditioning.Reference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)64.9 kWReference
YanmarReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage 3AReference
Rated Power (gross)64.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque286.8 NmReference
Torque RPM1850Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (4-range)Reference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase150 cmReference
Weight5104 to 5456 poundsReference
Front tire250/80R18Reference
Rear tire250/80R18Reference
Ag front250/80R18Reference
Ag front280/70R18Reference
Ag front9.5R20Reference
Ag front300/70R20Reference
Ag front320/70R20Reference
Ag front300/80-15.3Reference
Ag front320/65R18Reference
Ag front280/85R20Reference
Ag rear250/80R18Reference
Ag rear280/70R18Reference
Ag rear9.5R20Reference
Ag rear300/70R20Reference
Ag rear320/70R20Reference
Ag rear300/80-15.3Reference
Ag rear320/65R18Reference
Ag rear280/85R20Reference
Lawn/turf front31x15.50-15Reference
Lawn/turf rear31x15.50-15Reference
Length350 cmReference
Width137 cmReference
2315 kgReference
2385 kgReference
2474 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Antonio Carraro TRH 9800 Height
ROPS231 cmReference
Cab206 cmReference
Cab213 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
