Tractor · Unverified

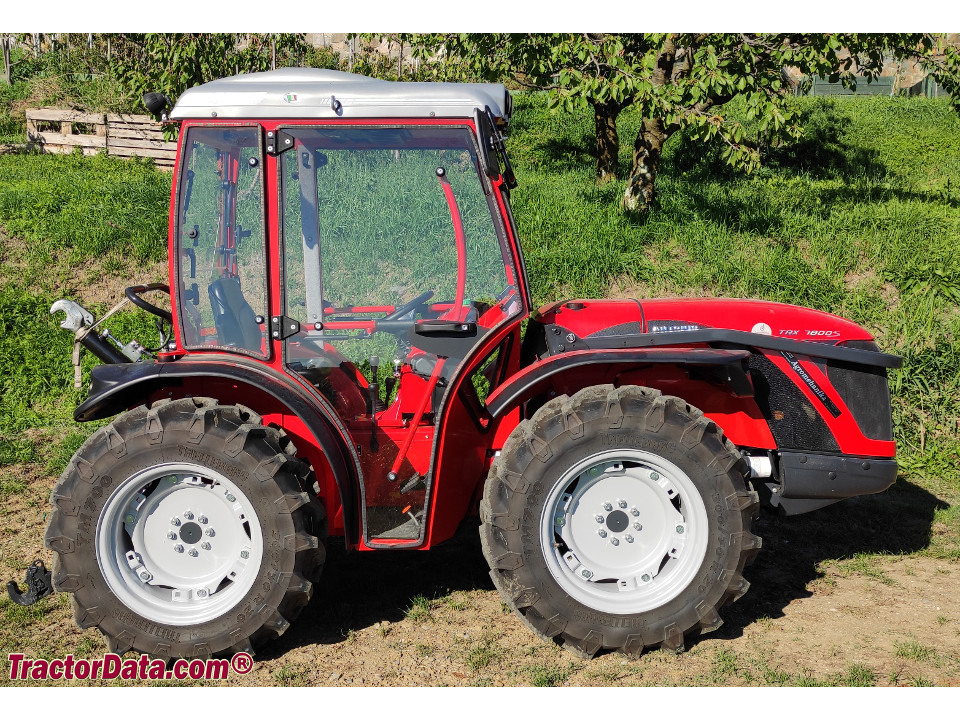

Antonio Carraro TRX 7800S
Antonio Carraro TRX 7800S — Utility tractor · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
4806 to 5115 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Reversible operator platform with two-post ROPS. Optional EasyStar six-post canopy with optional windscreens. Optional StarLight cab with air-conditioning.Reference
Variants
TXsingle-directionReference
TRXreversibleReference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Fuel tank50.0 LReference
Engine (gross)52.9 kWReference
YanmarReference
dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage 3AReference
Rated Power (gross)52.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque236.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift2150 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase149 cmReference
Weight4806 to 5115 poundsReference
Front tire250/80-18Reference
Rear tire250/80-18Reference
Ag front250/80-18Reference
Ag front300/50/15.3Reference
Ag front320/65R18Reference
Ag front300/70R20Reference
Ag front280/70R18Reference
Ag front320/70R20Reference
Ag front400/55-17.5Reference
Ag rear250/80-18Reference
Ag rear300/50/15.3Reference
Ag rear320/65R18Reference
Ag rear300/70R20Reference
Ag rear280/70R18Reference
Ag rear320/70R20Reference
Ag rear400/55-17.5Reference
Length339 cmReference
Width137 cmReference
2180 kgReference
2229 kgReference
2320 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Antonio Carraro TRX 7800S Height
ROPS236 cmReference
ROPS212 cmReference
Cab222 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
