Tractor · Unverified

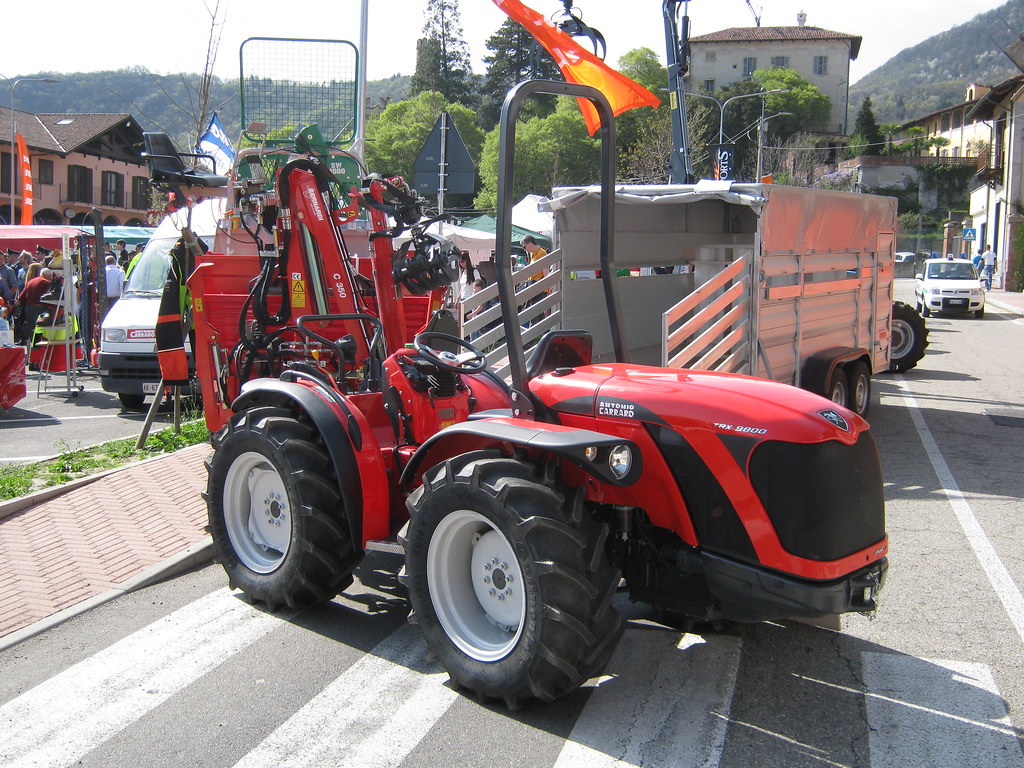

Antonio Carraro TRX 9800

Name: Antonio Carraro TRX 9800
Brand: Antonio Carraro

Antonio Carraro TRX 9800 — Ergit 100 SeriesUtility tractor · 87 hp. Reference specifications; pending source verification.

The Antonio Carraro TRX 9800 is a tractor with a rated power output of 87 hp, a mid-range figure for its class. It features a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, paired with a 16-speed gearbox. The tractor's operating weight ranges from 5004 to 5170 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

87 hp

Weight

5004 to 5170 pounds

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

87 hp

Recorded weight

2269 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAntonio CarraroReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Differential lockelectro-hydraulic front optionalReference

Steeringhydraulic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional six-post EasyStar ROPS canopy frame with windscreen. Optional StarLight cab with air-conditioning.Reference

Engine

Yanmar 3.3L 4-cyl dieselReference

Fuel tank60.2 LReference

Fuel tank50.0 LReference

Engine (gross)64.9 kWReference

YanmarReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

EmissionsStage 3AReference

Rated Power (gross)64.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

Torque286.8 NmReference

Torque RPM1850Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

32-speedReference

Gears16 forward and reverseReference

Gears32 forward and reverseReference

PTO & Hydraulics

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift2399 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase107 cmReference

Weight5004 to 5170 poundsReference

Front tire250/80R18Reference

Rear tire250/80R18Reference

Standard tires (ag)Front: 250/80R18. Rear: 250/80R18Reference

Optional tires (ag)Front: 280/70R18. Rear: 280/70R18Reference

Optional tires (ag)Front: 9.5R20. Rear: 9.5R20Reference

Optional tires (ag)Front: 300/70R20. Rear: 300/70R20Reference

Optional tires (ag)Front: 11.2R20. Rear: 11.2R20Reference

Optional tires (ag)Front: 320/70R20. Rear: 320/70R20Reference

Optional tires (ag)Front: 300/80-15.3. Rear: 300/80-15.3Reference

Optional tires (ag)Front: 320/65R18. Rear: 320/65R18Reference

Optional tires (ag)Front: 340/65R18. Rear: 340/65R18Reference

Length340 cmReference

Width137 cmReference

Weight2269 kgReference

Weight2345 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Antonio Carraro TRX 9800 Height

ROPS231 cmReference

Cab203 cmReference

Cab213 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
