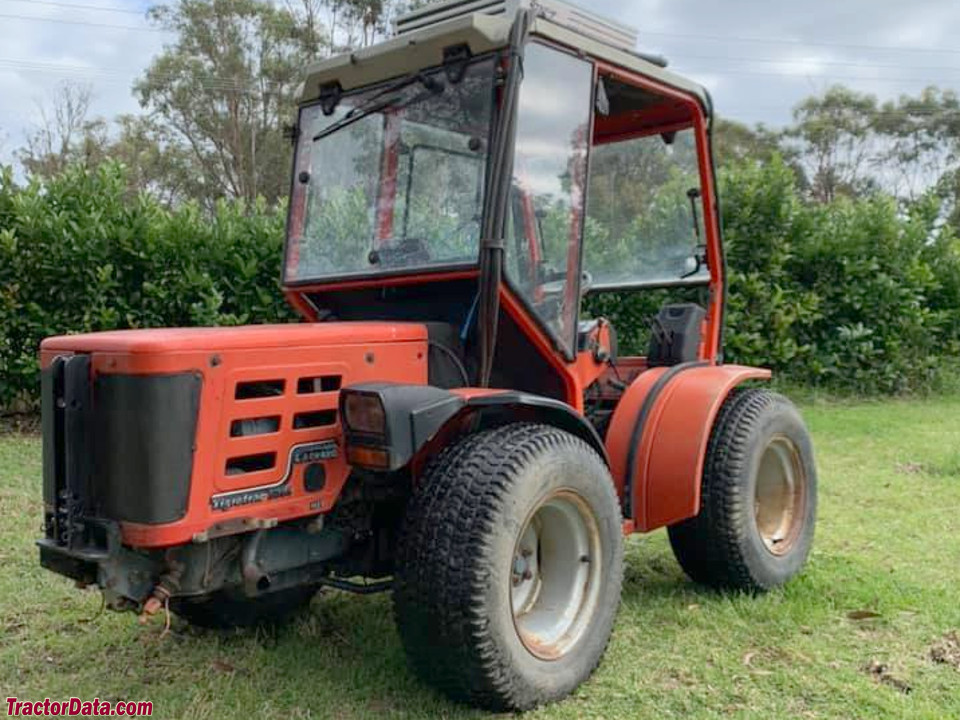

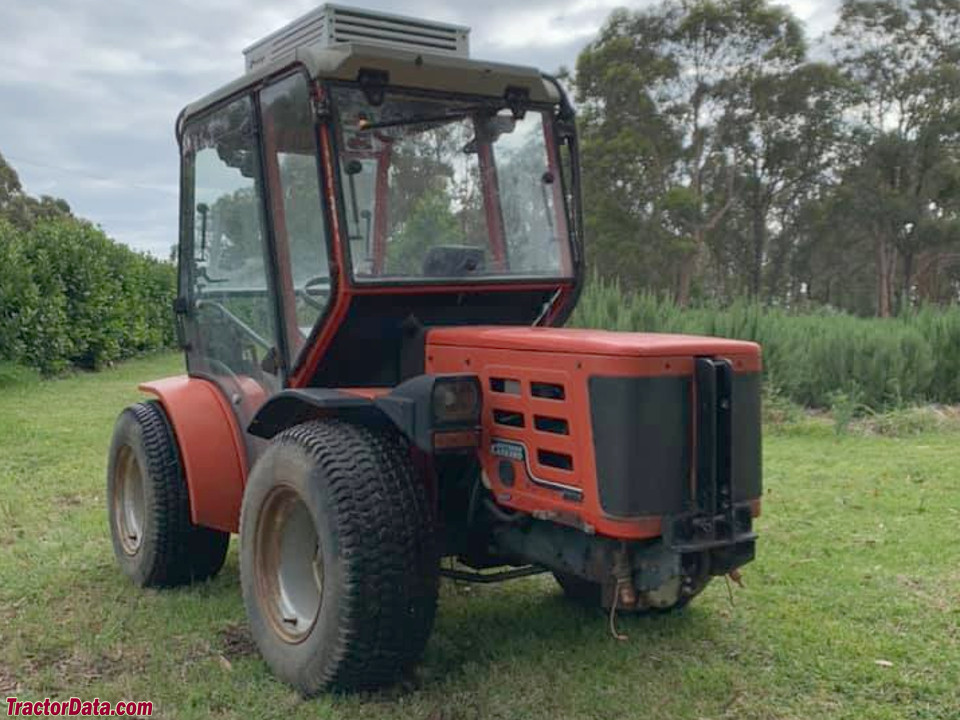

The Antonio Carraro TTR 3800 is a tractor model rated at 36 hp — making it one of the more compact options in its class. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive. Listed weight is 975 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
975 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
36 hp
Recorded weight
975 kg
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Four-wheel driveReference
Articulated power steeringReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Lombardini 1.6L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine26.8 kWReference
Lombardini 1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 85 mmReference
Power26.8 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydroastaticReference
TypehydroastaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift1850 kgReference
Front HitchIReference
Front lift400 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase130 cmReference
Weight975 kgReference
Front tire6.50x16Reference
Rear tire6.50x16Reference
Ag front6.50x16Reference
Ag rear6.50x16Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
