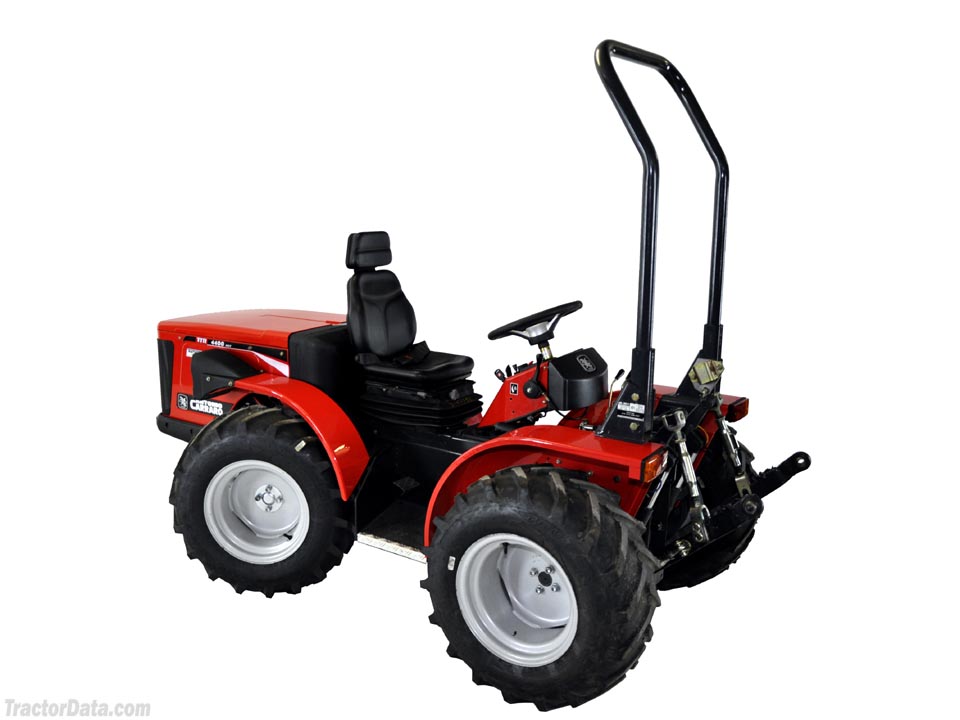

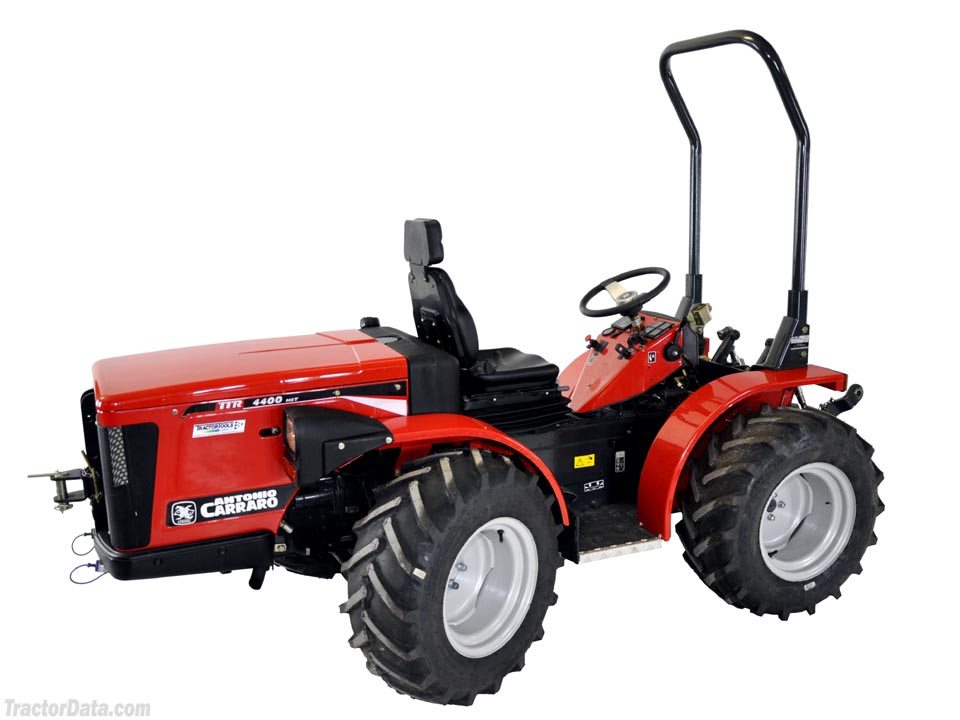

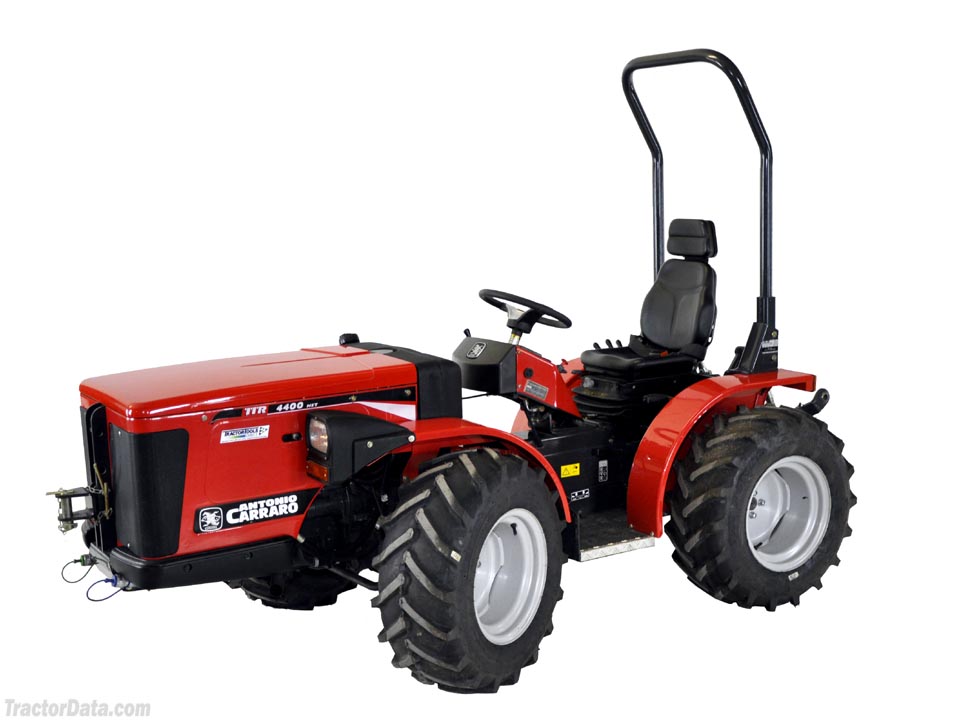

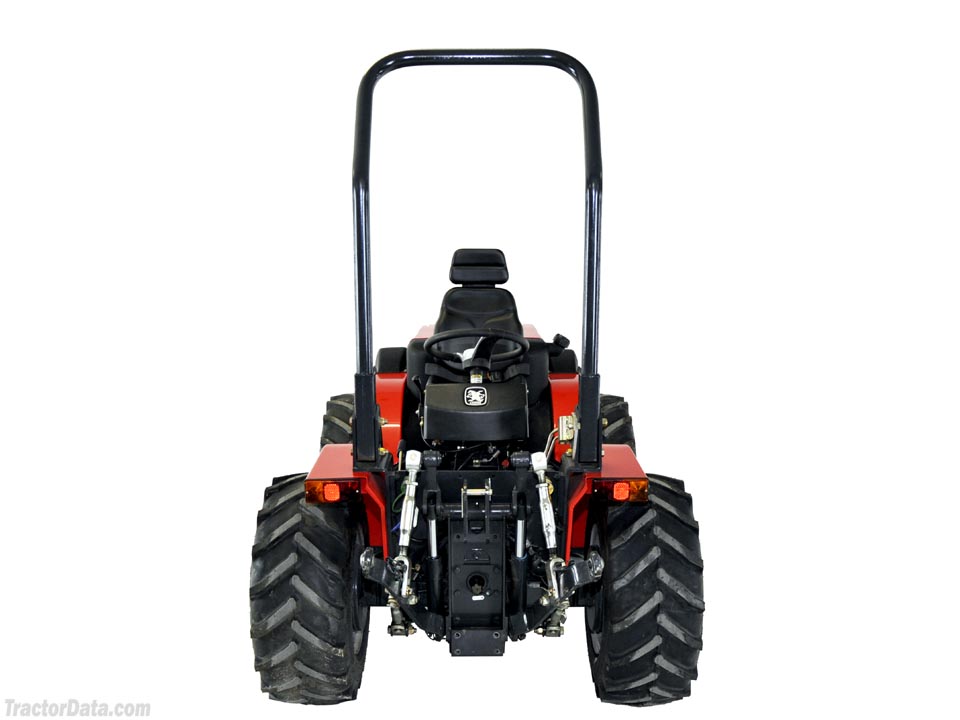

The Antonio Carraro TTR 4400 is a compact tractor with a power rating of 38 hp, making it suitable for smaller-scale operations. It features a 3-cylinder diesel liquid-cooled engine, and four-wheel drive is achieved through a hydrostatic transmission. The listed weight of the tractor ranges from 2811 to 3175 pounds. It is designed for use on plots of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2811 to 3175 pounds
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
38 hp
Recorded weight
1275 kg
Transmissions
hydrostatic
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Compact Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Hydraulic drum brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)28.3 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Rated Power (gross)28.3 kWReference
Fuel systemdirect injectionReference
Rated RPM3000Reference
Torque113.0 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift910 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase135 cmReference
Weight2811 to 3175 poundsReference
Front tire7.50x16Reference
Rear tire7.50x16Reference
Ag front7.50x16Reference
Ag front6.50x16Reference
Ag rear7.50x16Reference
Ag rear6.50x16Reference
Lawn/turf front240/70R15Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf rear240/70R15Reference
Lawn/turf rear29x12.50-15Reference
Length300 cmReference
Width119 cmReference
Weight1275 kgReference
Weight1440 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Antonio Carraro TTR 4400 Height
ROPS203 cmReference
ROPS170 cmReference
Cab209 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
