Tractor · Unverified

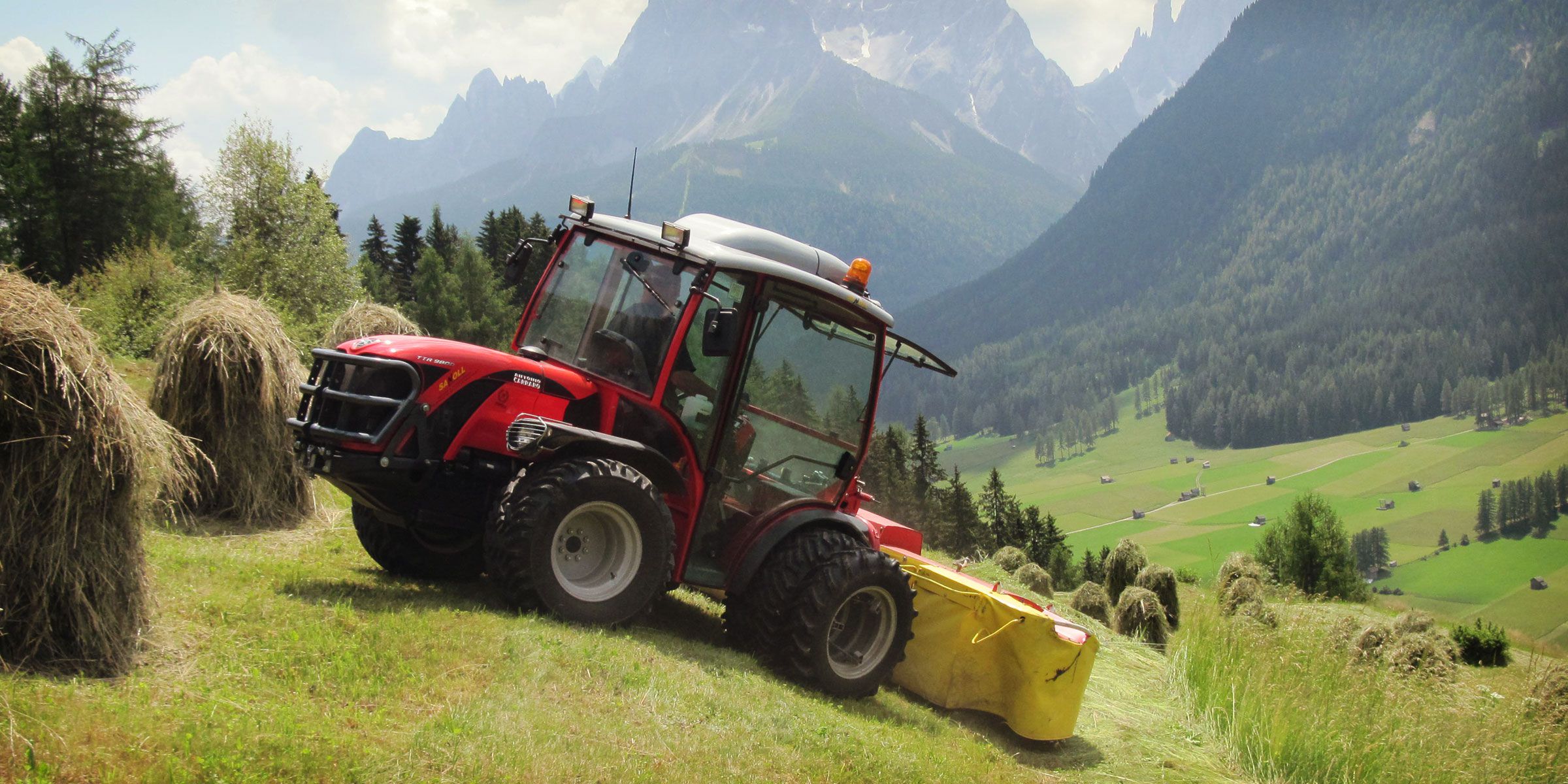

Antonio Carraro TTR 7800

Name: Antonio Carraro TTR 7800
Brand: Antonio Carraro

Antonio Carraro TTR 7800 — Ergit 100 SeriesUtility tractor · 71 hp. Reference specifications; pending source verification.

The Antonio Carraro TTR 7800 is a tractor with a rating of 71 horsepower, placing it in the mid-range of its class in terms of power output. It features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a 16-speed gearbox. The listed weight of the tractor ranges from 5159 to 5445 pounds. It is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Weight

5159 to 5445 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

71 hp

Recorded weight

2340 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAntonio CarraroReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Steeringhydraulic powerReference

Hydraulic wet disc brakesReference

Six-post ROPS canopy with windscreen. Optional cab with air-conditioning.Reference

Engine

Yanmar 3.3L 4-cyl dieselReference

Fuel tank60.2 LReference

Engine (gross)52.9 kWReference

YanmarReference

dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

EmissionsStage 3AReference

Rated Power (gross)52.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

Torque236.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

32-speedReference

Gears16 forward and reverseReference

Gears32 forward and reverseReference

PTO & Hydraulics

Rear lift2399 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E (1.375)Reference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase152 cmReference

Weight5159 to 5445 poundsReference

Front tire31x15.50-15Reference

Rear tire31x15.50-15Reference

Ag front31x15.50-15Reference

Ag front300/80-15.3Reference

Ag front340/65R18Reference

Ag front425/55R17Reference

Ag rear31x15.50-15Reference

Ag rear300/80-15.3Reference

Ag rear340/65R18Reference

Ag rear425/55R17Reference

Lawn/turf front31x15.50-15Reference

Lawn/turf rear31x15.50-15Reference

Length350 cmReference

Width131 cmReference

Height (cab)221 cmReference

Weight2340 kgReference

Weight2469 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
