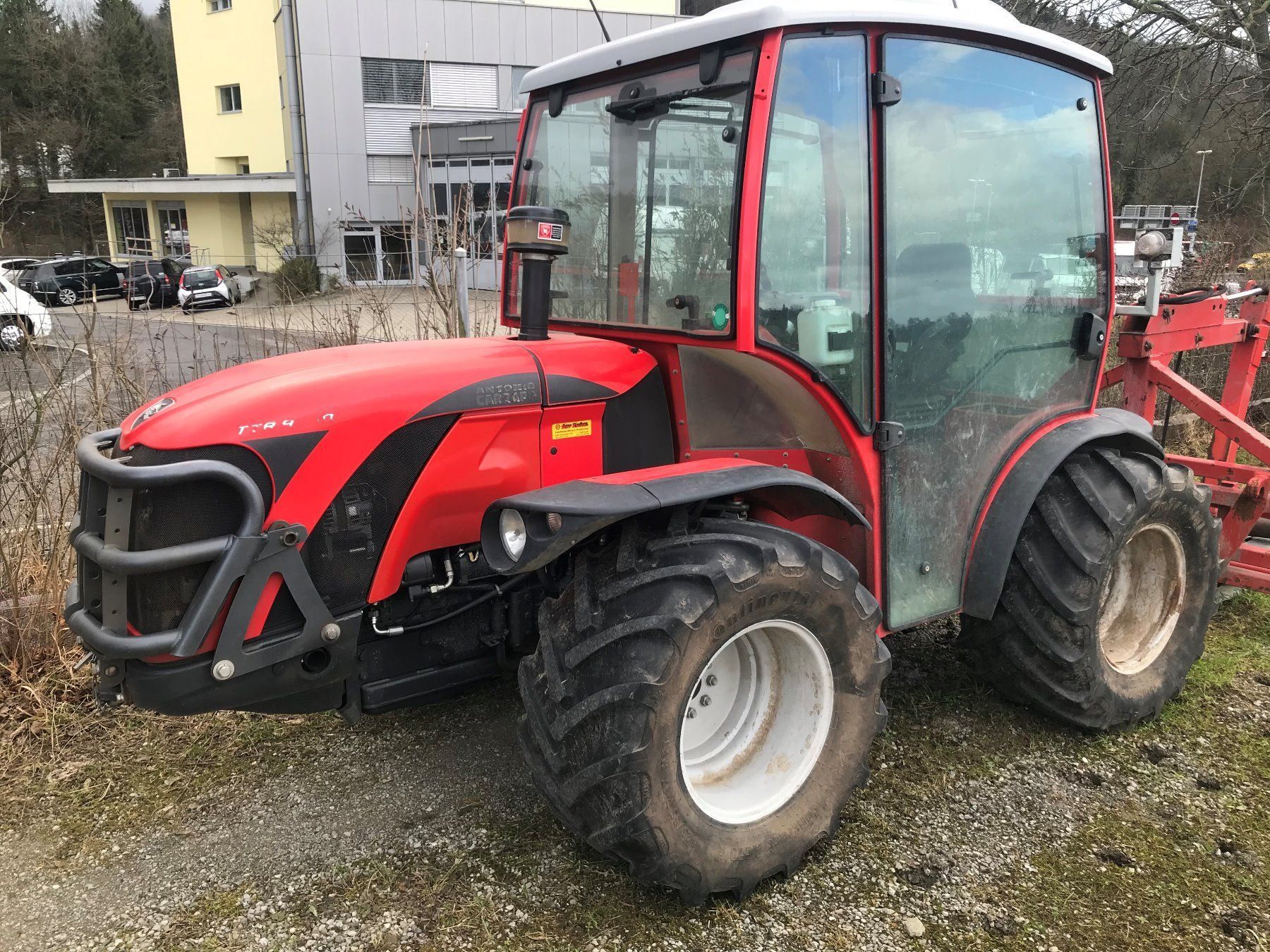

Antonio Carraro TTR 9800
Antonio Carraro TTR 9800 — Ergit 100 SeriesUtility tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5159 to 5445 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Six-post ROPS canopy with windscreen. Optional cab with air-conditioning.Reference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)64.9 kWReference
YanmarReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage 3AReference
Rated Power (gross)64.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque286.8 NmReference
Torque RPM1850Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
Gears16 forward and reverseReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Dimensions
Wheelbase152 cmReference
Weight5159 to 5445 poundsReference
Front tire31x15.50-15Reference
Rear tire31x15.50-15Reference
Ag front31x15.50-15Reference
Ag front300/80-15.3Reference
Ag front340/65R18Reference
Ag front425/55R17Reference
Ag rear31x15.50-15Reference
Ag rear300/80-15.3Reference
Ag rear340/65R18Reference
Ag rear425/55R17Reference
Lawn/turf front31x15.50-15Reference
Lawn/turf rear31x15.50-15Reference
Length350 cmReference
Width131 cmReference
Height (cab)221 cmReference
Weight2340 kgReference
Weight2469 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
