Tractor · 2012Unverified

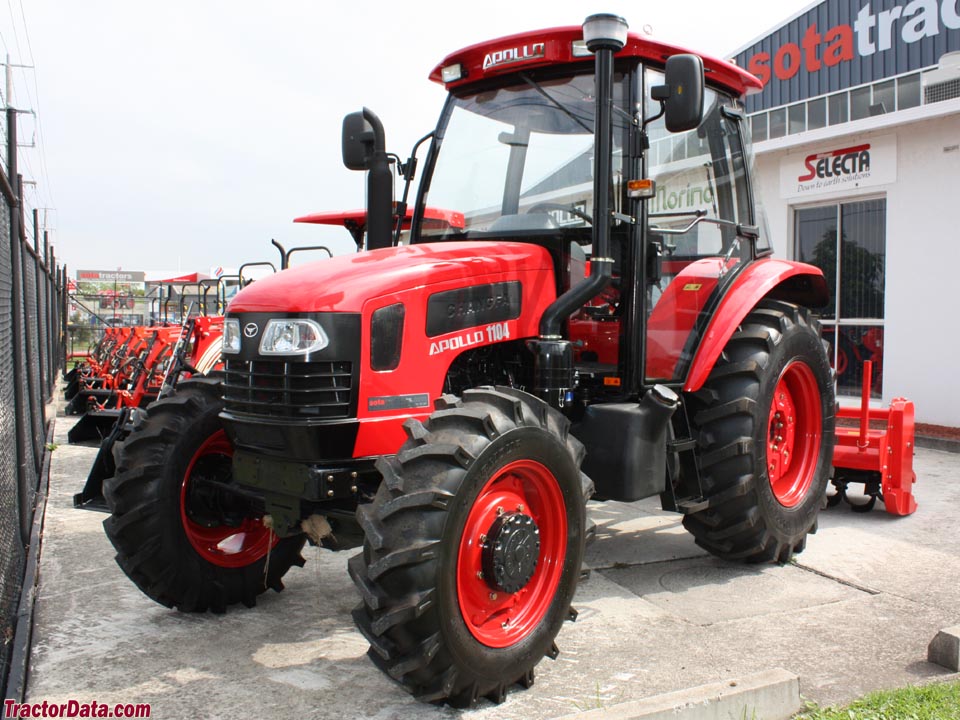

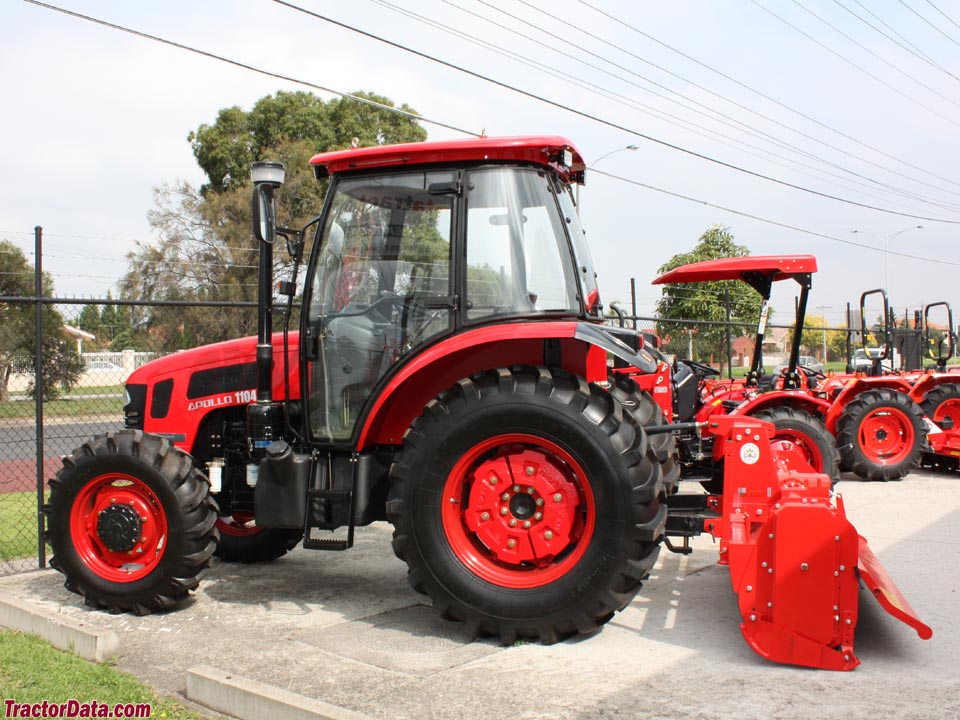

Apollo 1104
Apollo 1104 — Utility tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
10710 to 11240 pounds
Hover a source tag to verify
Overview
DistributorApolloReference
ManufacturerChangfaReference
Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
Dual plate wet disc brakesReference
Two-post foldable ROPS with canopy. Optional cab with air-conditioning.Reference
Engine
Yuchai 5.0L 4-cyl dieselReference
Fuel tank169.9 LReference
Engine (gross)82.0 kWReference
Yuchai YC4A110Z-T20Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Power (gross)82.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Five gears (1-5) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Valves2Reference
Total flow43.9 lpmReference
Rear TypeIIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight10710 to 11240 poundsReference
Front tire12.4x24Reference
Rear tire18.4x30Reference
Standard tires (ag)Front: 12.4x24. Rear: 18.4x30Reference
Length569 cmReference
Width209 cmReference
Height (ROPS)279 cmReference
Height (cab)277 cmReference
Weight4858 kgReference
Weight5098 kgReference
Ground clearance38 cmReference
Apollo 1104 attachments

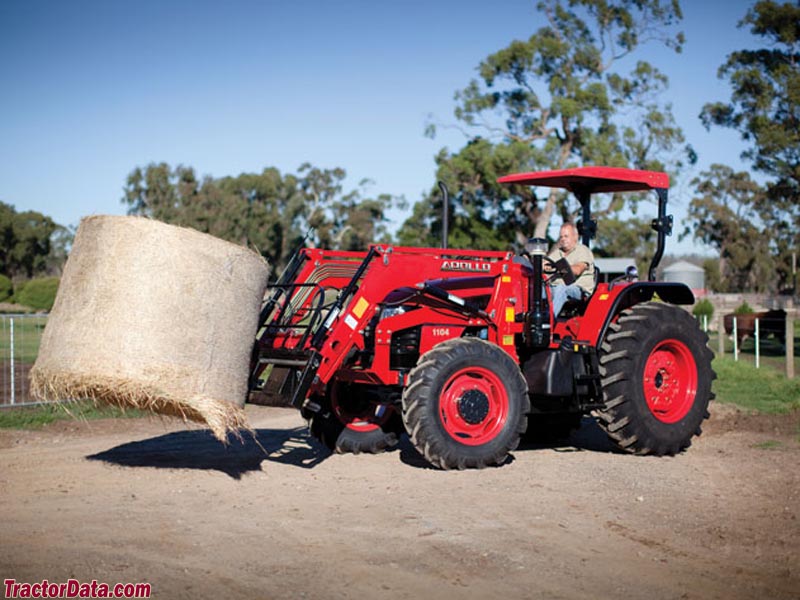

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps25Reference
Charging volts14Reference
Battery volts12Reference
Battery AH80Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
