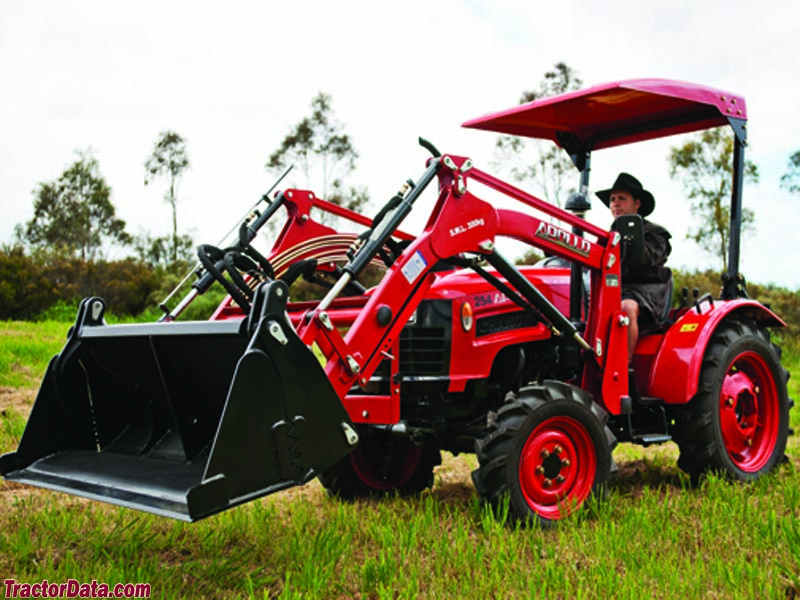

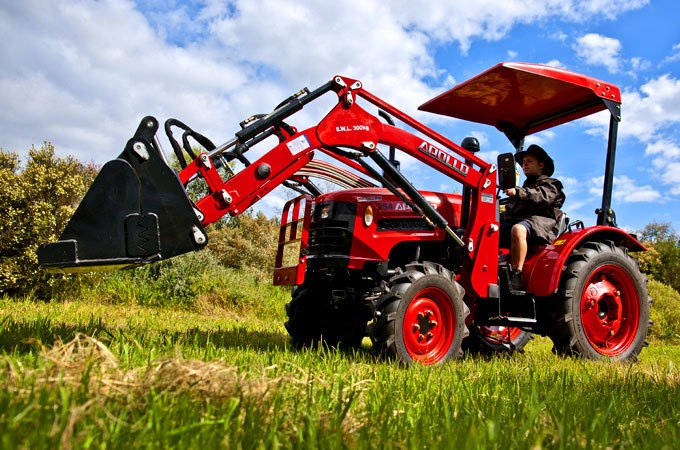

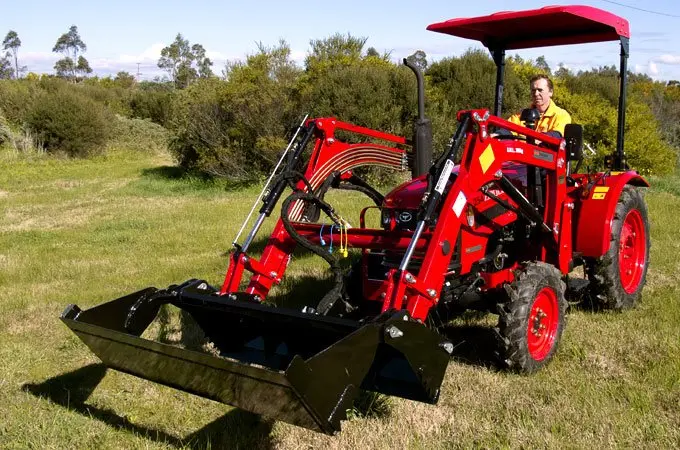

The Apollo 254 is a tractor rated at 25 hp — making it one of the more compact options in its class. This model was manufactured in 2012. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 9-speed gearbox. Listed weight is 1655 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1655 kg
Catalogue coverage
Variants represented
2
Richest spec table
49 rows
Recorded power
25 hp
Recorded weight
1655 kg
Transmissions
9-speed gear
Production years
2012-2012
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorApolloReference
ManufacturerChangfaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
Dual plate wet disc brakesReference
Two-post foldable ROPS with canopy.Reference
Engine
Changfa 1.5L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)18.6 kWReference
Changfa CF3B25TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power (gross)18.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch203mm dry discReference
Three speeds (I, II, III) in three ranges (L, M, H and R).Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Valves2Reference
Total flow32.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)600 kgReference
Rear PTO Type540Reference
Dimensions
Weight1655 kgReference
Front tire6.00x16Reference
Rear tire9.5x24Reference
Standard tires (ag)Front: 6.00x16. Rear: 9.5x24Reference
Length389 cmReference
Width144 cmReference
Height (ROPS)231 cmReference
Weight1655 kgReference
Ground clearance27 cmReference
Apollo 254 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps25Reference
Charging volts14Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
