Tractor · 2010Unverified

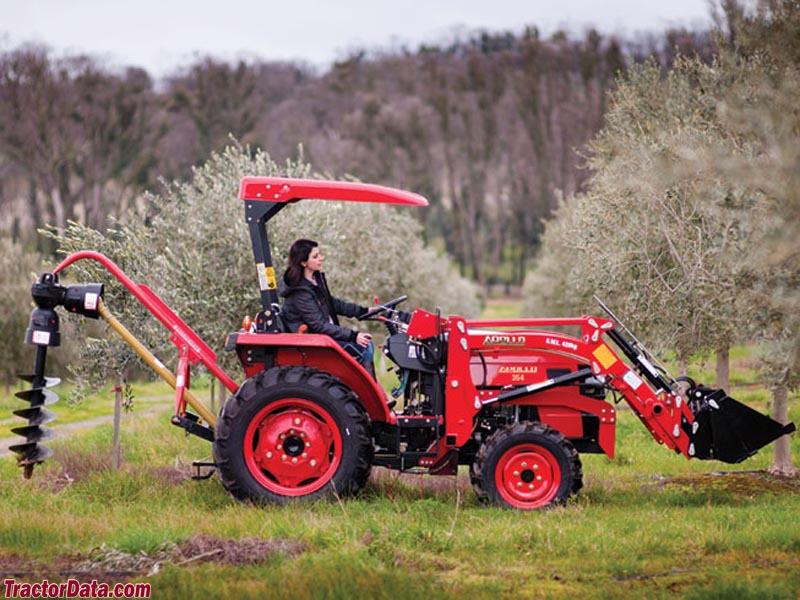

Apollo 354
Apollo 354 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1855 kg
Hover a source tag to verify
Overview
DistributorApolloReference
ManufacturerChangfaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
Dual plate wet disc brakesReference
Two-post foldable ROPS with canopy.Reference
Engine
Changfa 1.5L 3-cyl dieselReference
Fuel tank34.8 LReference
Engine (gross)26.1 kWReference
Changfa CF3B28TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power (gross)26.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutch228.6mm dry discReference
Four gears (1-4) in two ranges (low/high) with shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
Valves2Reference
Total flow32.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)753 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight1855 kgReference
Front tire6.00x16Reference
Rear tire11.2x24Reference
Standard tires (ag)Front: 6.00x16. Rear: 11.2x24Reference
Industrial front9.0x15Reference
Industrial rear15x19.5Reference
Length400 cmReference
Width144 cmReference
Height (ROPS)230 cmReference
Weight1855 kgReference
Ground clearance30 cmReference
Apollo 354 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps25Reference
Charging volts14Reference
Battery volts12Reference
Battery AH80Reference
Speeds
Reverse speeds are about 7% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
