Tractor · 2009Unverified
Apollo 454

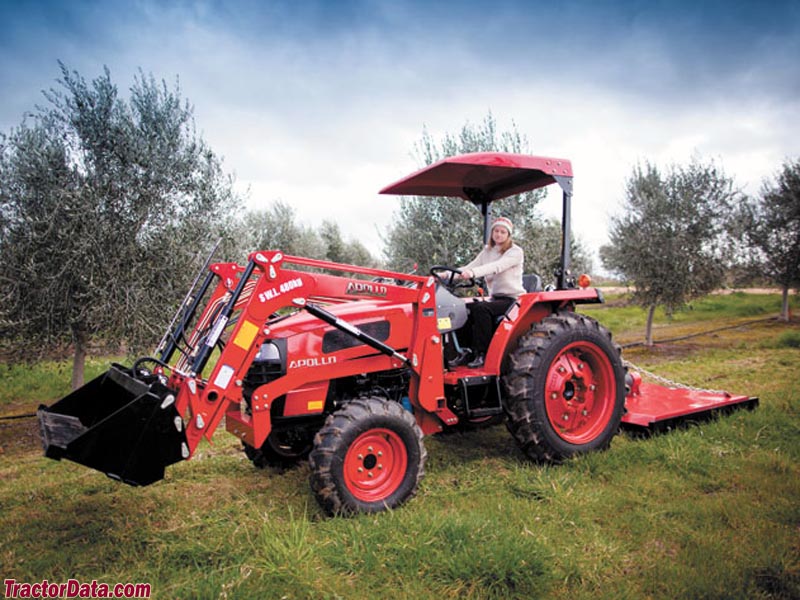

Apollo 454 — Compact Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1979 kg
Hover a source tag to verify
Overview
DistributorApolloReference
ManufacturerChangfaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
Dual plate wet disc brakesReference
Two-post foldable ROPS with canopy.Reference
Engine
Changfa 2.5L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine (gross)33.6 kWReference
Changfa CF4B35TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Power (gross)33.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutch228.6mm dry discReference
Four gears (1-4) in two ranges (low/high) with shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Valves2Reference
Total flow32.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)753 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight1979 kgReference
Front tire6.5x16Reference
Rear tire12.4x24Reference
Standard tires (ag)Front: 6.5x16. Rear: 12.4x24Reference
Industrial front10x16.5Reference
Industrial rear16.5x22.5Reference
Length424 cmReference
Width154 cmReference
Height (ROPS)230 cmReference
Weight1979 kgReference
Ground clearance33 cmReference

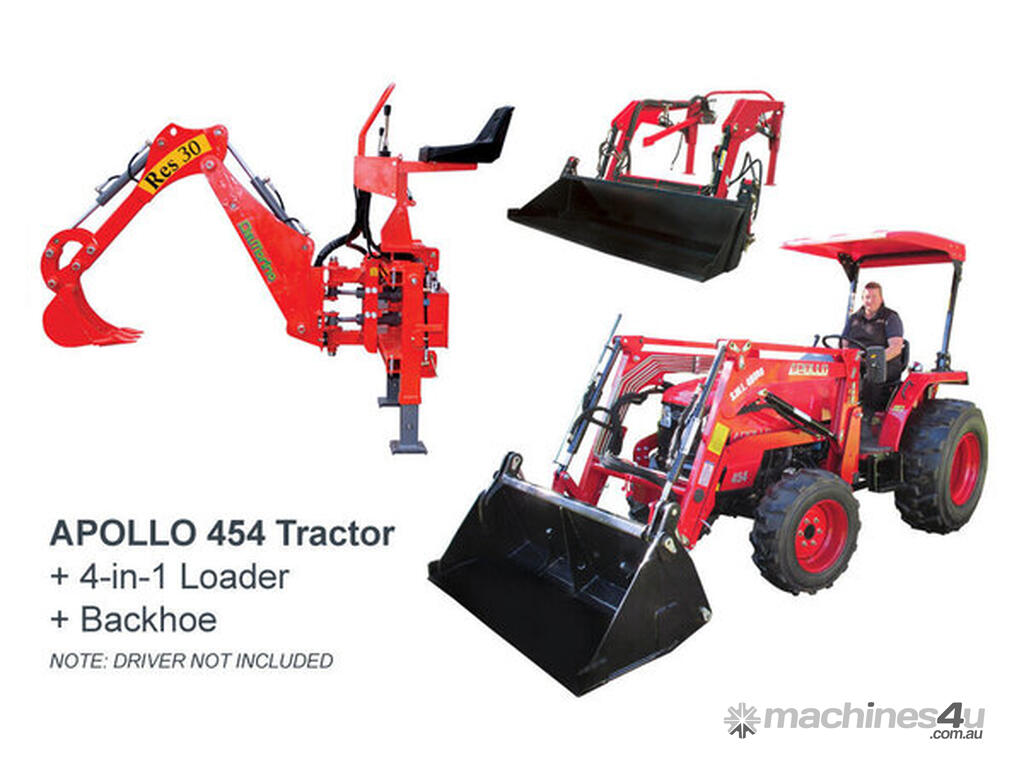

Apollo 454 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps25Reference
Charging volts14Reference
Battery volts12Reference
Battery AH80Reference
Speeds
Reverse speeds are about 7% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
