Tractor · 2007Unverified

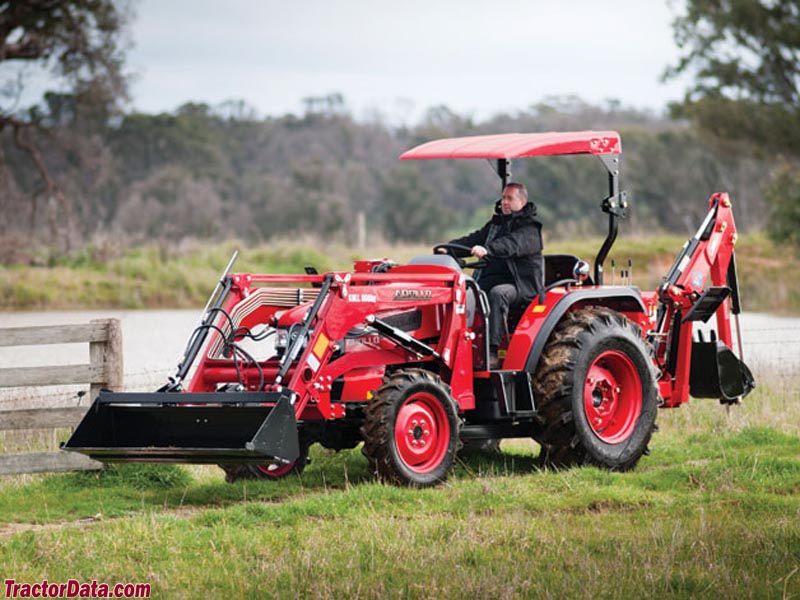

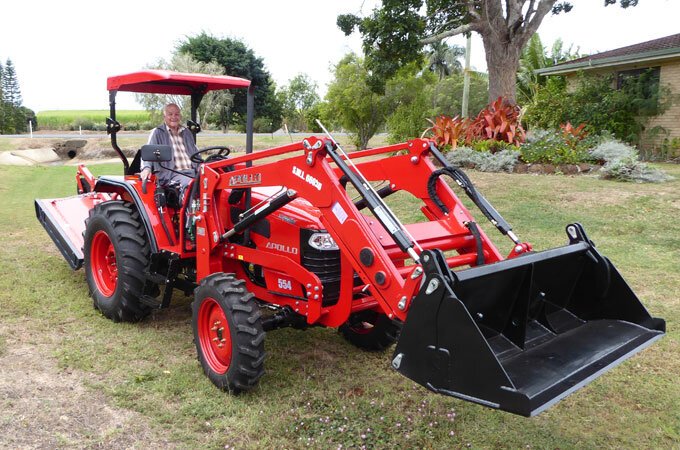

Apollo 554
Apollo 554 — Compact Utility tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2830 kg
Hover a source tag to verify
Overview
DistributorApolloReference
ManufacturerChangfaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
Dual plate wet disc brakesReference
Two-post foldable ROPS with canopy.Reference
Engine
Xinchai 3.0L 4-cyl dieselReference
Fuel tank46.0 LReference
Engine (gross)41.0 kWReference
Xinchai 498BTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Power (gross)41.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutch254mm dry discReference
Four gears (1-4) in two ranges (low/high) with shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Valves2Reference
Total flow36.0 lpmReference
Rear TypeIIReference
Controlposition, float and draft controlReference
Rear lift (at 24"/610mm)919 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight2830 kgReference
Front tire8.3x20Reference
Rear tire14.9x24Reference
Standard tires (ag)Front: 8.3x20. Rear: 14.9x24Reference
Length484 cmReference
Width165 cmReference
Height (ROPS)249 cmReference
Weight2830 kgReference
Ground clearance33 cmReference
Apollo 554 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps25Reference
Charging volts14Reference
Battery volts12Reference
Battery AH80Reference
Speeds
Reverse speeds are about 7% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
