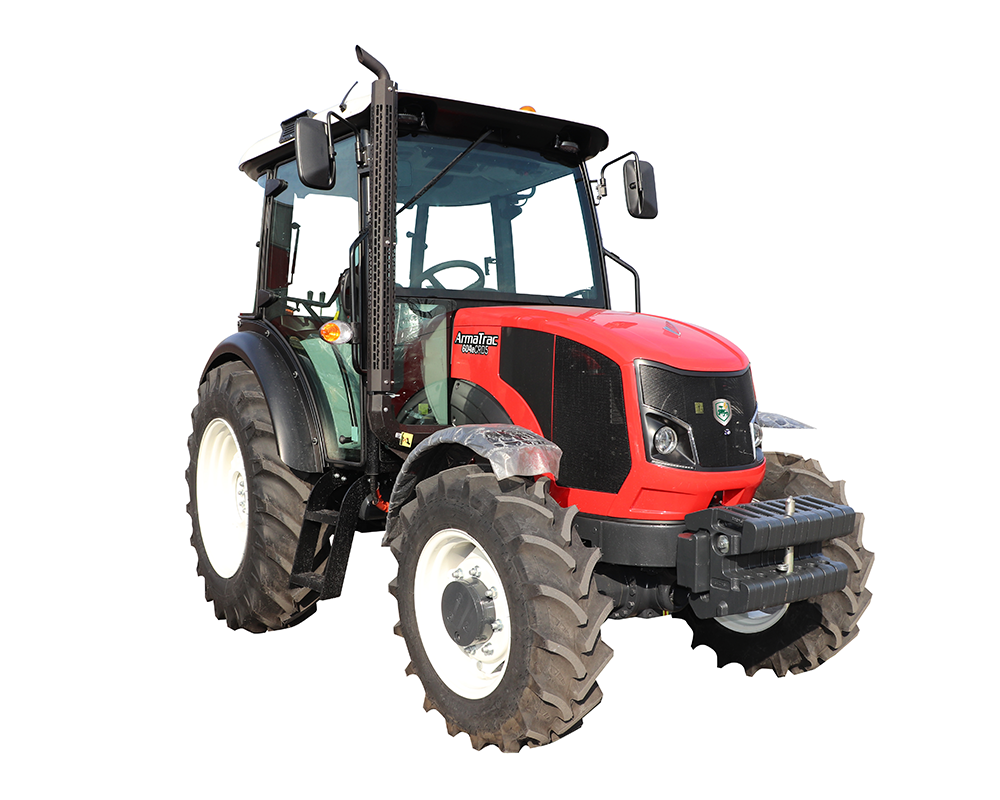

The ArmaTrac 604LP is a tractor with a rated output of 58 hp — making it one of the more compact options in its class. It is powered by a 3-cylinder diesel engine, driving through four-wheel drive with a 16-speed gearbox. Listed weight is 2849 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
58 hp
Recorded weight
2849 kg
Transmissions
16-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerArmaTracReference
Built in Ankara, TurkeyReference
Four-wheel driveReference
Multiple wet disc brakesReference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine43.0 kWReference
Perkins 1103C-33Reference
dieselReference
3-cylinderReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power43.0 kWReference
Air cleanerdry with internal prefilterReference
Compression19.25:1Reference
Rated RPM2200Reference
Torque222.0 NmReference
Torque RPM1400Reference
Oil capacity7.0 LReference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow38.0 lpmReference
Steering press.9.9 barReference
Rear lift2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase220 cmReference
Width176 cmReference
Height243 cmReference
Ballasted weight2849 kgReference
Ground clearance27 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
