Tractor · Unverified

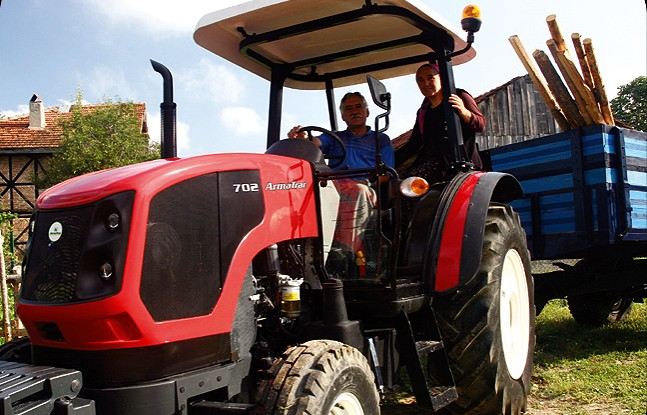

ArmaTrac 702T
ArmaTrac 702T · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Hover a source tag to verify
Overview
ManufacturerArmaTracReference
Built in Ankara, TurkeyReference
The ArmaTrac 702 is the same as the Erkunt Nimet 2x4Reference
Two-wheel driveReference
Multiple wet disc brakesReference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine48.0 kWReference
Perkins 1103C-33TReference
turbo dieselReference
3-cylinderReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power48.0 kWReference
Air cleanerdry with internal prefilterReference
Compression18.25:1Reference
Rated RPM2200Reference
Torque270.0 NmReference
Torque RPM1400Reference
Oil capacity7.0 LReference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow38.0 lpmReference
Steering press.10.7 barReference
Rear lift2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase217 cmReference
Width193 cmReference
Height257 cmReference
Ballasted weight3119 kgReference
Ground clearance36 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
