Tractor · Unverified

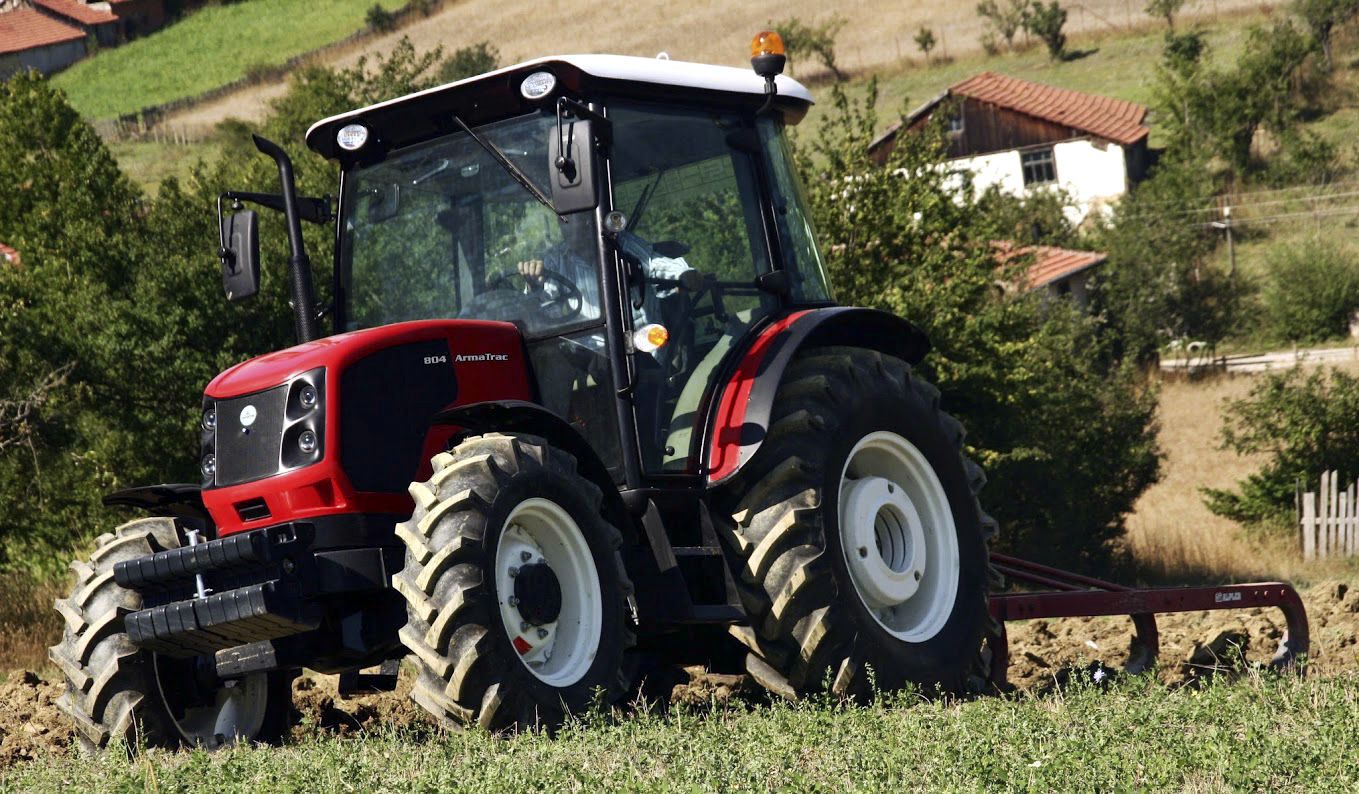

ArmaTrac 804T

Name: ArmaTrac 804T
Brand: ArmaTrac

ArmaTrac 804T · 74 hp. Reference specifications; pending source verification.

The ArmaTrac 804T is a tractor model with a rated power output of 74 horsepower, a mid-range figure for its class. It is equipped with a 3-cylinder turbocharged diesel engine, paired with four-wheel drive and a 16-speed gearbox. The tractor has a listed operating weight of 3549 kilograms. It is designed for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

74 hp

Recorded weight

3549 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerArmaTracReference

Built in Ankara, TurkeyReference

The ArmaTrac 804 is the same as the Erkunt Servet 4x4Reference

Four-wheel driveReference

Multiple wet disc brakesReference

Engine

Perkins 3.3L 3-cyl dieselReference

Fuel tank70.0 LReference

Engine55.0 kWReference

Perkins 1103C-33TReference

turbocharged dieselReference

3-cylinderReference

Displacement3.3 LReference

Bore/Stroke105 x 127 mmReference

Power55.0 kWReference

Air cleanerdry with internal prefilterReference

Compression18.25:1Reference

Rated RPM2200Reference

Torque290.7 NmReference

Torque RPM1400Reference

Oil capacity7.0 LReference

Transmission

16-speedReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Total flow38.0 lpmReference

Steering press.10.7 barReference

Rear lift2399 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Dimensions

Wheelbase220 cmReference

Width193 cmReference

Height266 cmReference

Ballasted weight3549 kgReference

Ground clearance33 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
