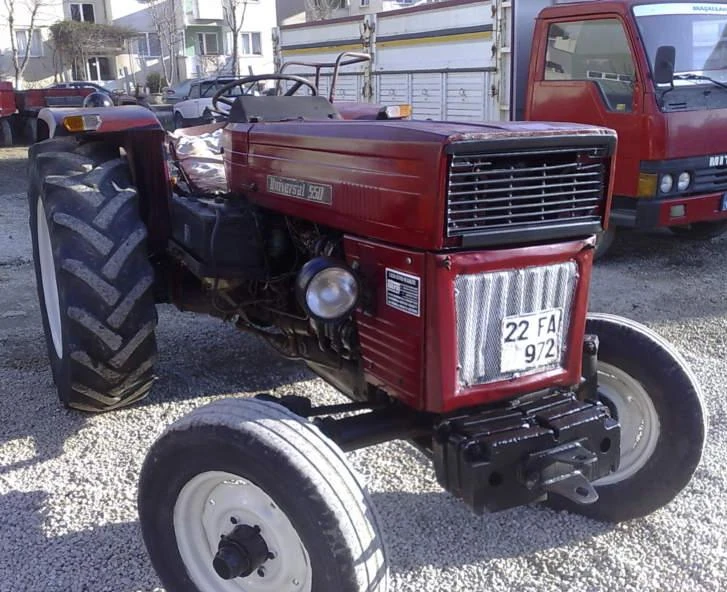

The Ascot Universal 550 is a tractor rated at 53 hp — making it one of the more compact options in its class. It is powered by a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 12-speed gearbox. Listed weight is 2086 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
2086 kg
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
53 hp
Recorded weight
2086 kg
Transmissions
12-speed constant mesh
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerAscot UniversalReference
Built in Brasov, RomaniaReference
Original price was $24,000 in 1981Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry band brakesReference
ROPS. Cab optional.Reference
Engine
UTB 3.1L 4-cyl dieselReference
Fuel tank53.7 LReference
Engine41.0 kWReference
UTBReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power41.0 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
12-speed constant meshReference
8-speed shuttleReference
Typeconstant meshReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
Four gears (1-4) plus reverse (R) in three ranges (creeper, low, and high). Gears 3 and 4 are synchronized.Reference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)39.5 kWReference
Typeopen centerReference
Valves1Reference
Pump flow40.9 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2100 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Weight2086 kgReference
Front tire7.50-16Reference
Rear tire18.4-28Reference
Ag front7.50-16Reference
Ag rear18.4-28Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 14.9x28 rear tires.Reference
With 14.9x28 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
