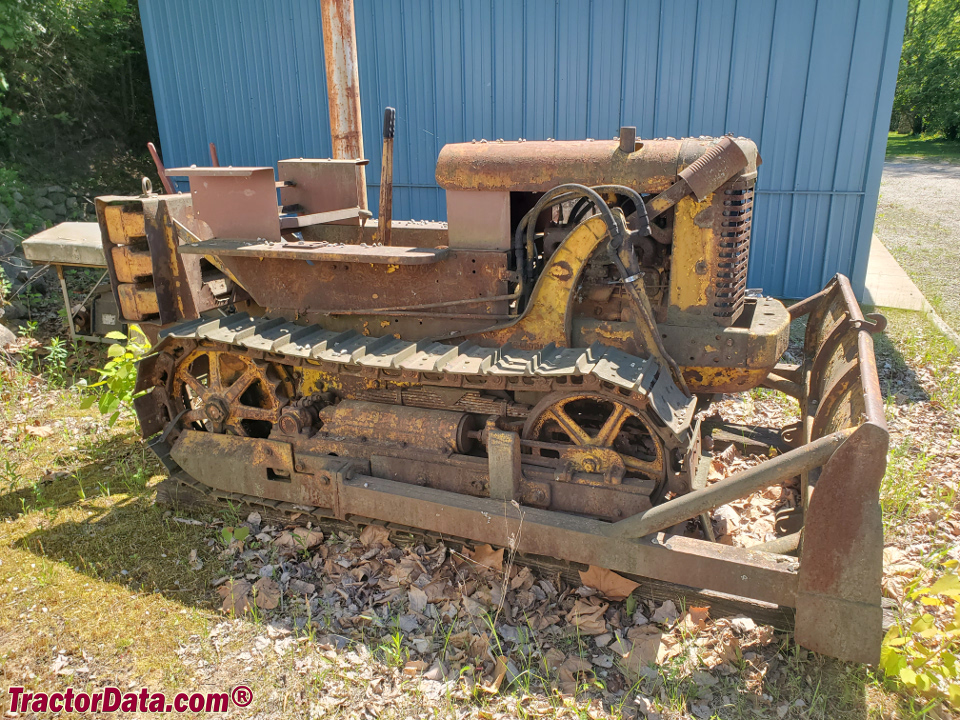

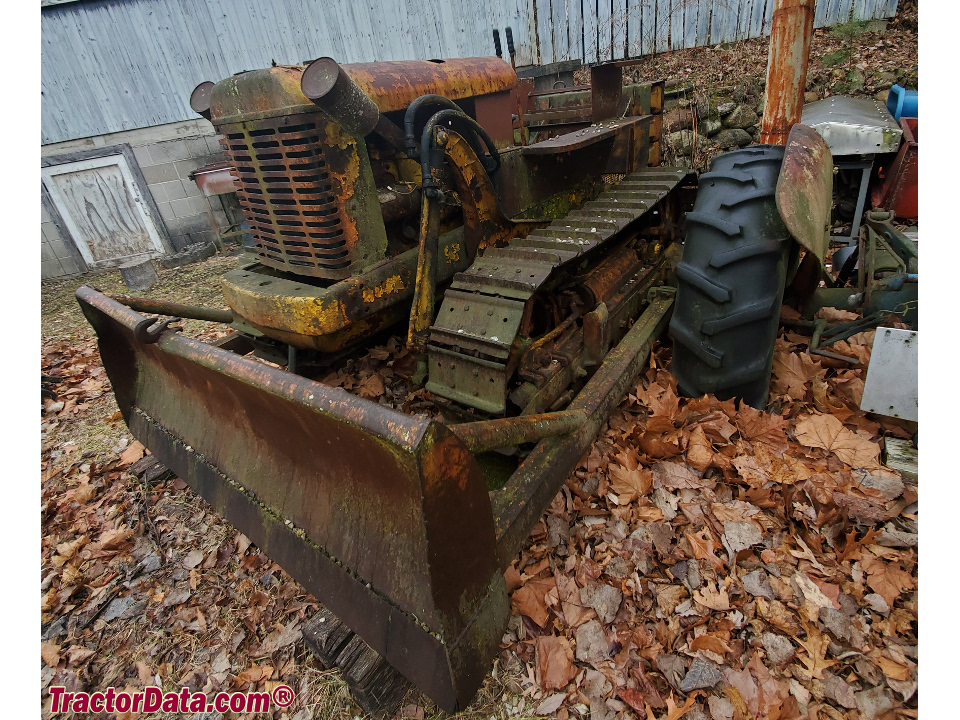

The ATC GT-32 Terratrac tractor is a compact model with a 30 hp rating. Manufactured from 1953 to 1954, it features a 4-cylinder petrol liquid-cooled engine driving a tracked undercarriage via a 3-speed gearbox. The listed weight of the model is 2043 kg, and it is suited for jobs covering around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2043 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
30 hp
Recorded weight
2043 kg
Transmissions
3-speed gear
Production years
1953-1954
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerATCReference
Agricultural Crawler tractorReference
Built in Churubusco, Indiana, USAReference
DrivecrawlerReference
Open operator station.Reference
Engine
Continental 2.3L 4-cyl gasolineReference
Engine22.4 kWReference
Plows3Reference
Continental F-140Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke81 x 111 mmReference
Power22.4 kWReference
Fuel systemcarburetorReference
Compression6:1Reference
Rated RPM1850Reference
Torque140.3 NmReference
Torque RPM1700Reference
Firing order1-3-4-2Reference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight2043 kgReference
11-inch tracksReference
Length248 cmReference
Height165 cmReference
Shipping weight2043 kgReference
Ground clearance45 cmReference
Gauge91 cmReference
GT-32 Serial Numbers
195332001Reference
195432020Reference
Final32053Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter15 cmReference
Width17 cmReference
RPM664Reference
Speed317.91 meters/minReference
ATC GT-32 Tracks
Width27 cmReference
Area on ground0.8 m²Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
