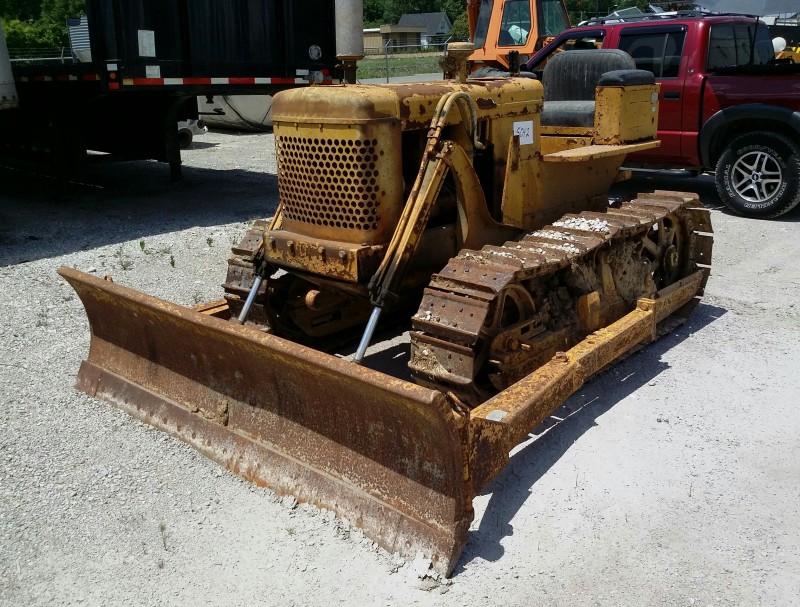

The ATC Terratrac 356 is a compact tractor with a rated output of 37 hp, produced from 1955 to 1956. It features a 4-cylinder petrol liquid-cooled engine, which drives a tracked undercarriage through a 3-speed gearbox. The tractor has a listed weight of 2190 kg and is designed for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
2190 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
37 hp
Recorded weight
2190 kg
Transmissions
3-speed gear
Production years
1955-1956
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerATC (a part of J.I. Case)Reference
Agricultural Crawler tractorReference
Built in Churubusco, Indiana, USAReference
DrivecrawlerReference
Final drivesspur gearReference
Contracting band brakesReference
Open operator station.Reference
Engine
Continental 2.3L 4-cyl gasolineReference
Engine27.2 kWReference
Plows3Reference
Continental F-140Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke81 x 111 mmReference
Power27.2 kWReference
Rated RPM1850Reference
Starter typeelectricReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight2190 kgReference
TracksReference
Length233 cmReference
Height161 cmReference
Shipping weight2190 kgReference
Ground clearance40 cmReference
356 Serial Numbers
1955356-001Reference
1956356-062Reference
Final356-468Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter15 cmReference
Width17 cmReference
RPM664Reference
Speed317.91 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
