Tractor · 1954Unverified

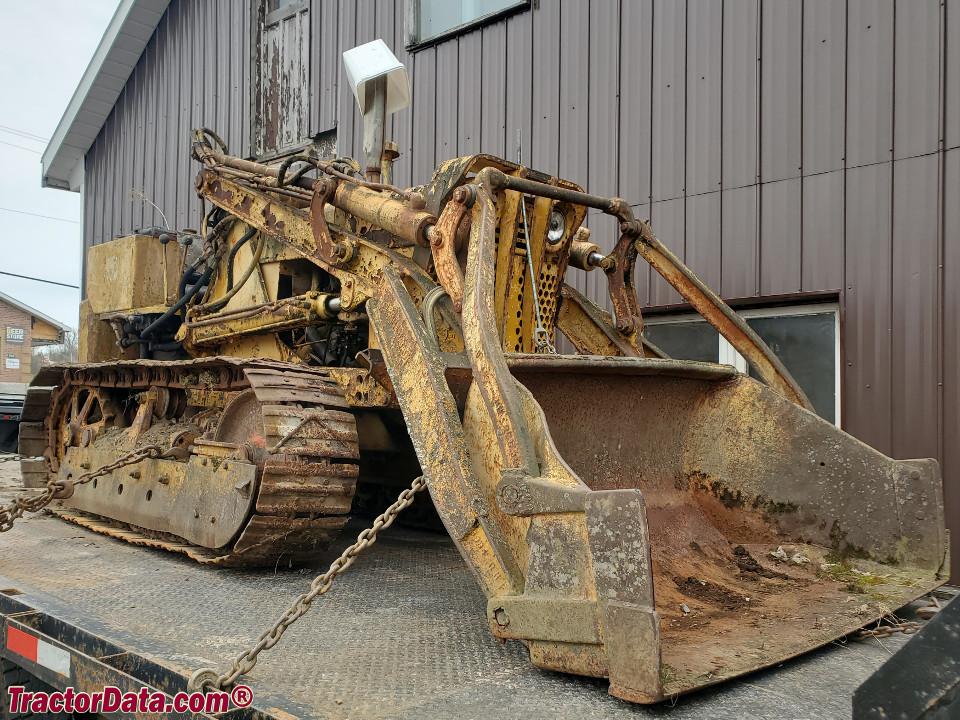

ATC Terratrac 500

Name: ATC Terratrac 500
Brand: ATC

ATC Terratrac 500 — Model year 1954-19551955-1957 · 43 hp. Reference specifications; pending source verification.

The ATC Terratrac 500 is a tractor with a rated power of 43 hp, categorised as a lighter model in its class. Produced from 1954 to 1957, it features a 4-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage and a 3-speed gearbox. The tractor's operating weight is specified as 6335 to 8440 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

43 hp

Weight

6335 to 8440 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

43 hp

Recorded weight

2873 kg

Transmissions

3-speed gear

Production years

1954-1957

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerATCReference

Agricultural Crawler tractorReference

Built in Churubusco, Indiana, USAReference

DrivecrawlerReference

Open operator station.Reference

Engine

Continental 2.7L 4-cyl gasolineReference

Continental 2.6L 4-cyl dieselReference

Fuel tank68.1 LReference

Engine (gross)31.7 kWReference

Continental FA-162Reference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke87 x 111 mmReference

Power (gross)31.7 kWReference

Rated RPM1850Reference

Torque168.6 NmReference

Torque RPM2000Reference

StarterelectricReference

Starter volts6Reference

Oil capacity7.6 LReference

Coolant capacity13.2 LReference

Continental GD-157Reference

dieselReference

Displacement2.6 LReference

Bore/Stroke86 x 111 mmReference

Power (gross)28.3 kWReference

Torque149.2 NmReference

Torque RPM1200Reference

Starter volts12Reference

Transmission

3-speed gearReference

TypegearReference

Gears3 forward and 1 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure69.0 barReference

Pump flow41.6 lpmReference

Dimensions

Weight6335 to 8440 poundsReference

13-inch tracksReference

Weight2873 kgReference

Weight3828 kgReference

ATC 500 attachments

bladeReference

front-end loaderReference

500 Serial Numbers

1954500-001Reference

1955500-032Reference

Final500-447Reference

FAQ: How to read a serial number table.Reference

Attachment overview

BladeReference

Front-end loaderReference

ATC 500 Tracks

Width33 cmReference

Length on ground144 cmReference

Area on ground1.0 m²Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
