Tractor · 1919Unverified

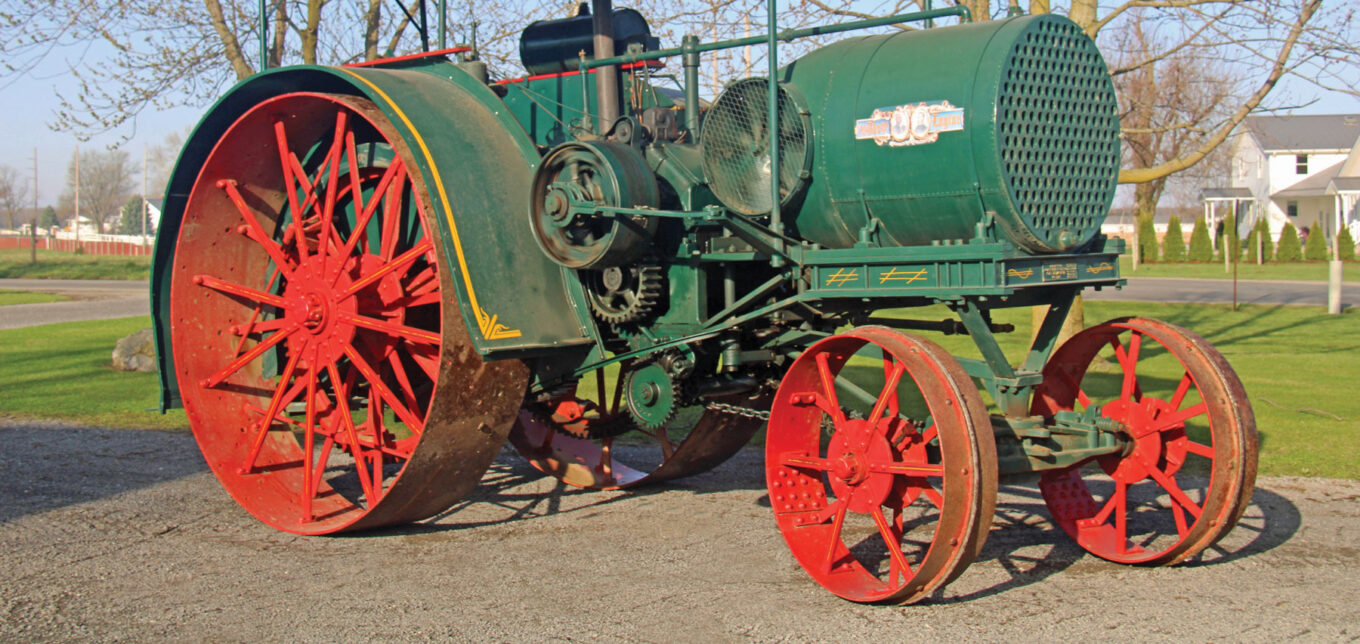

Aultman & Taylor 15-30

Name: Aultman & Taylor 15-30
Brand: Aultman & Taylor

Aultman & Taylor 15-30 · 30 hp. Reference specifications; pending source verification.

The Aultman & Taylor 15-30 is a compact tractor rated at 30 hp, featuring a 4-cylinder petrol liquid-cooled engine. Manufactured from 1919 to 1923, it is equipped with two-wheel drive and a 1-speed gearbox. The tractor's listed weight is 3737 kg, and it is designed for use in areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Max power

15.7 kW

Weight

3737 kg

Catalogue coverage

Variants represented

Richest spec table

35 rows

Recorded power

30 hp

Recorded weight

3737 kg

Transmissions

1-speed

Production years

1919-1923

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAultman & TaylorReference

Built in Mansfield, Ohio, United StatesReference

Two-wheel driveReference

Engine

Climax 8.4L 4-cyl gasolineReference

Fuel tank60.6 LReference

Aux. fuel22.7 LReference

Drawbar (tested)15.7 kWReference

Belt (tested)25.6 kWReference

ClimaxReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke127 x 165 mmReference

Rated RPM900Reference

Coolant capacity18.9 LReference

Belt power (max)25.6 kWReference

Power at rated engine speed22.7 kWReference

Max power15.7 kWReference

Transmission

1-speedReference

Gears1 forward and reverseReference

PTO & Hydraulics

PTO (tested)22.7 kWReference

Dimensions

Wheelbase250 cmReference

Weight3737 kgReference

Front tire36x5Reference

Rear tire70x12Reference

Ag front36x5 (steel)Reference

Ag rear70x12 (steel)Reference

Length447 cmReference

Height264 cmReference

Test results

Gasoline July 1920Reference

Belt fuel use (max)22.3 l/hourReference

PTO performanceReference

Fuel use15.5 l/hourReference

Drawbar performanceReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
