Tractor · 1918Unverified

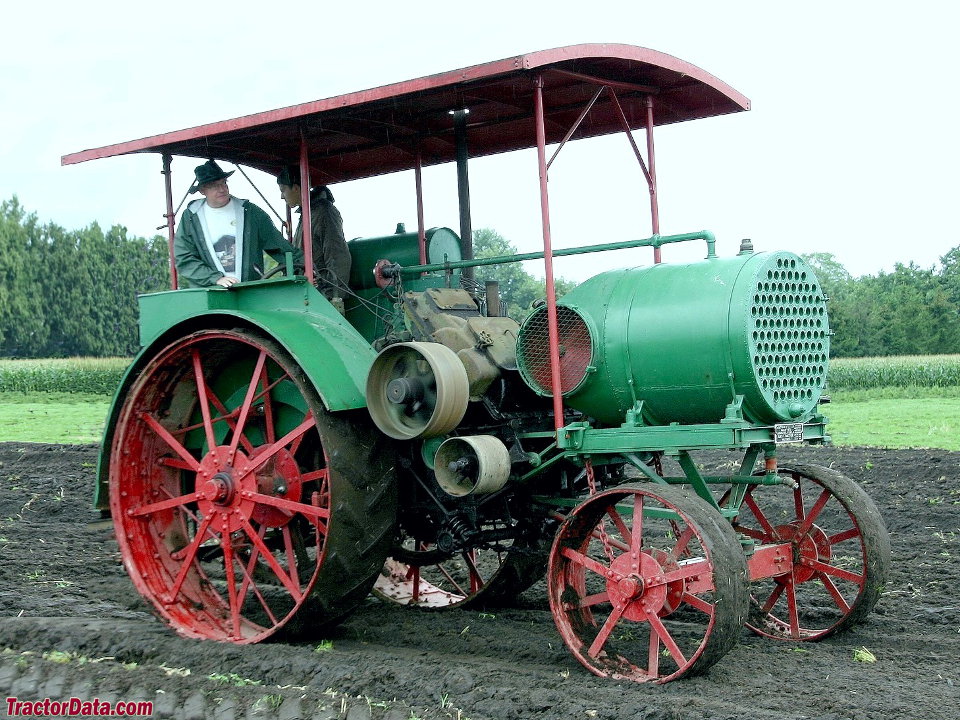

Aultman & Taylor 22-45

Name: Aultman & Taylor 22-45
Brand: Aultman & Taylor

Aultman & Taylor 22-45 — Standard-tread tractor · 22 hp. Reference specifications; pending source verification.

The Aultman & Taylor 22-45 is a tractor with an approximate engine rating of 22 hp, positioning it at the lower end of its class in terms of power output. Manufactured between 1918 and 1923, this tractor features a 4-cylinder petrol liquid-cooled engine and two-wheel drive with a 2-speed gearbox. Its operating weight is listed at 5842 kg, and it is suitable for use on areas up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Max power

21.0 kW

Weight

5842 kg

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

22 hp

Recorded weight

5842 kg

Transmissions

2-speed gear

Production years

1918-1923

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAultman & TaylorReference

Standard-tread tractorReference

Built in Mansfield, Ohio, United StatesReference

Two-wheel driveReference

Manual steeringReference

Open operator station with canopy.Reference

Engine

Aultman & Taylor 12.5L 4-cyl gasolineReference

Fuel tank132.5 LReference

Aux. fuel75.7 LReference

Drawbar (claimed)16.4 kWReference

Belt (claimed)33.6 kWReference

Drawbar (tested)21.0 kWReference

Belt (tested)34.8 kWReference

Aultman & TaylorReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement12.5 LReference

Bore/Stroke140 x 203 mmReference

Rated RPM600Reference

Coolant capacity321.8 LReference

Belt power (max)34.8 kWReference

Max power21.0 kWReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Wheelbase259 cmReference

Weight5842 kgReference

Front tire38x10Reference

Rear tire70x20Reference

Ag front38x10 (steel)Reference

Ag rear70x20 (steel)Reference

Length421 cmReference

Height317 cmReference

Test results

Kerosene 2-speed 2WDJuly 1 - 19, 1920Link: Nebraska Tractor Test 32 fileReference

Belt fuel use (max)23.5 l/hourReference

Drawbar performanceReference

Max pull2261 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
