Tractor · 1911Unverified

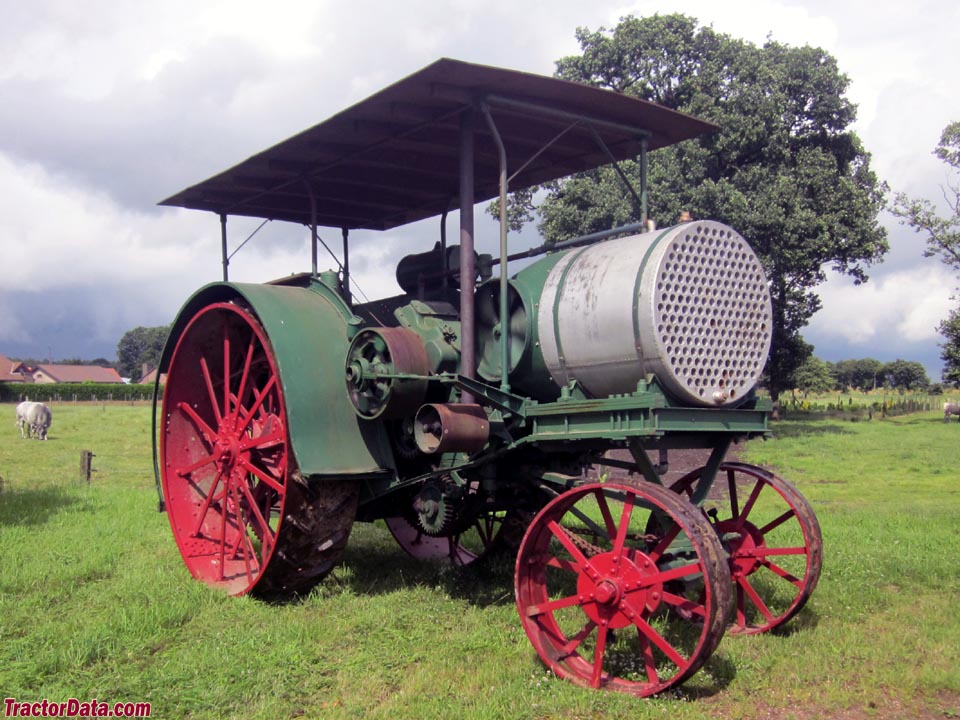

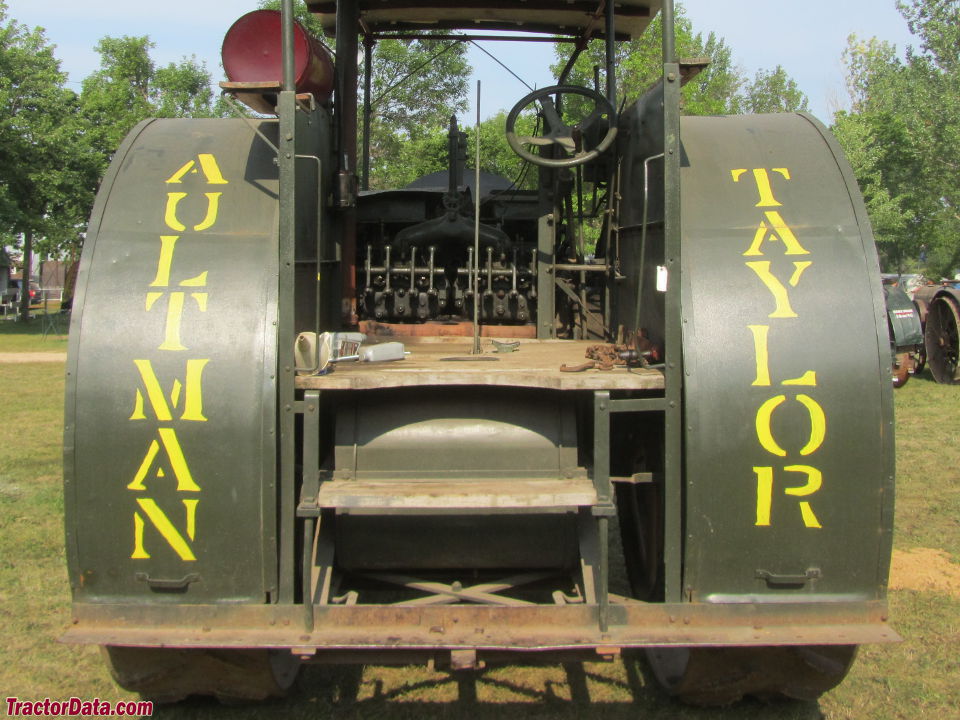

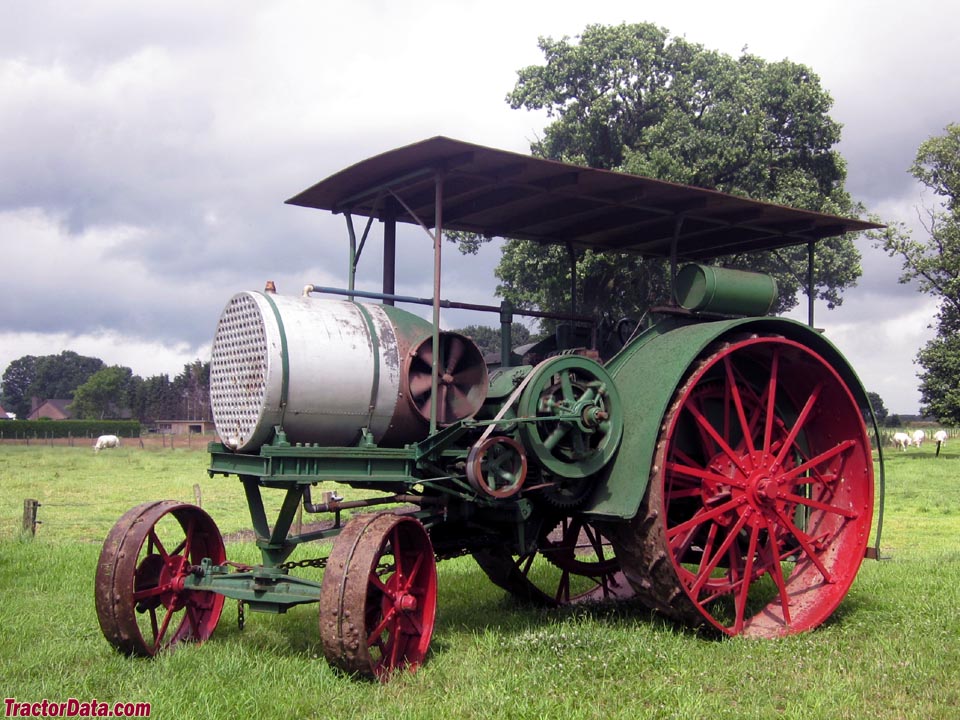

Aultman & Taylor 30-60

Name: Aultman & Taylor 30-60
Brand: Aultman & Taylor

Aultman & Taylor 30-60 — Standard-tread tractor · 58 hp. Reference specifications; pending source verification.

The Aultman & Taylor 30-60 is a tractor model with a rated output of 58 hp, categorising it as one of the more compact options in its class. It was manufactured between 1911 and 1924. The 30-60 is equipped with a 4-cylinder petrol liquid-cooled engine, which drives the vehicle through a 1-speed gearbox and two-wheel drive. Its listed weight is 11090 kg, making it suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

58 hp

Max power

43.3 kW

Weight

11090 kg

Catalogue coverage

Variants represented

Richest spec table

34 rows

Recorded power

58 hp

Recorded weight

11090 kg

Transmissions

1-speed gear

Production years

1911-1924

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAultman & TaylorReference

Standard-tread tractorReference

Built in Mansfield, Ohio, United StatesReference

Two-wheel driveReference

Open operator station with canopy.Reference

Engine

Aultman & Taylor 22.7L 4-cyl gasolineReference

Fuel tank227.1 LReference

Aux. fuel75.7 LReference

Drawbar (tested)43.3 kWReference

Belt (tested)59.7 kWReference

Aultman & TaylorReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement22.7 LReference

Bore/Stroke178 x 229 mmReference

Rated RPM550Reference

Coolant capacity454.3 LReference

Belt power (max)59.7 kWReference

Max power43.3 kWReference

Transmission

1-speed gearReference

TypegearReference

Gears1 forward and reverseReference

Dimensions

Wheelbase345 cmReference

Weight11090 kgReference

Front tire44x12Reference

Rear tire90x24Reference

Ag front44x12 (steel)Reference

Ag rear90x24 (steel)Reference

Length553 cmReference

Height345 cmReference

Test results

Gasoline 1-speed 2WDJune 30 - July 20, 1920Link: Nebraska Tractor Test 30 fileReference

Belt fuel use (max)34.4 l/hourReference

Drawbar performanceReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
