Tractor · 1916Unverified

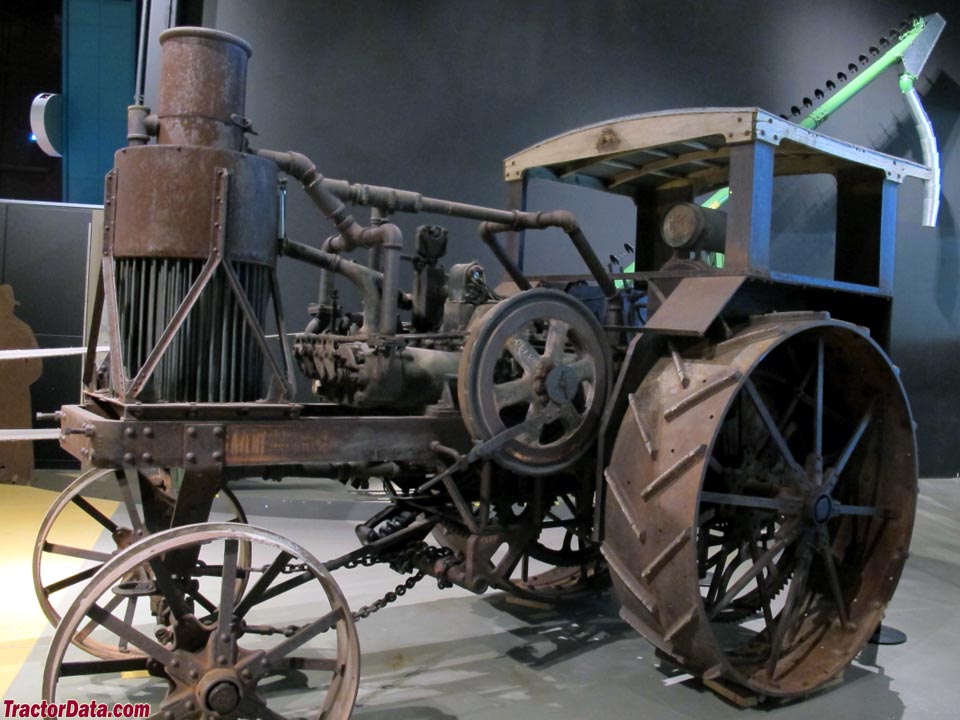

Avery 18-36
Avery 18-36 — Standard-tread tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Max power
20.5 kW
Weight
4195 kg
Hover a source tag to verify
Overview
ManufacturerAveryReference
Standard-tread tractorReference
Built in Peoria, IllinoisReference
Original price was $1,900 in 1916Reference
Two-wheel driveReference
SteeringmanualReference
Engine
Avery 9.3L 4-cyl gasolineReference
Fuel tank102.2 LReference
Aux. fuel22.7 LReference
Engine20.1 kWReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)26.8 kWReference
Drawbar (tested)20.5 kWReference
Belt (tested)33.2 kWReference
AveryReference
gasolineReference
4-cylinderReference
liquid-cooled horizontalReference
Displacement9.3 LReference
Bore/Stroke140 x 152 mmReference
Power20.1 kWReference
Rated RPM800Reference
Coolant capacity124.9 LReference
Belt power (max)33.2 kWReference
Max power20.5 kWReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight4195 kgReference
Front tire35x8Reference
Rear tire65x20Reference
Ag front35x8 steelReference
Ag rear65x20 steelReference
Length386 cmReference
Width213 cmReference
Height266 cmReference
Front axle63 mmReference
Rear axle76 mmReference
Test results
Kerosene 2-speed 2WDAugust 25 - September 9, 1920Link: Nebraska Tractor Test 58 fileReference
Drawbar performanceReference
Max pull2082 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
