Tractor · 1923Unverified

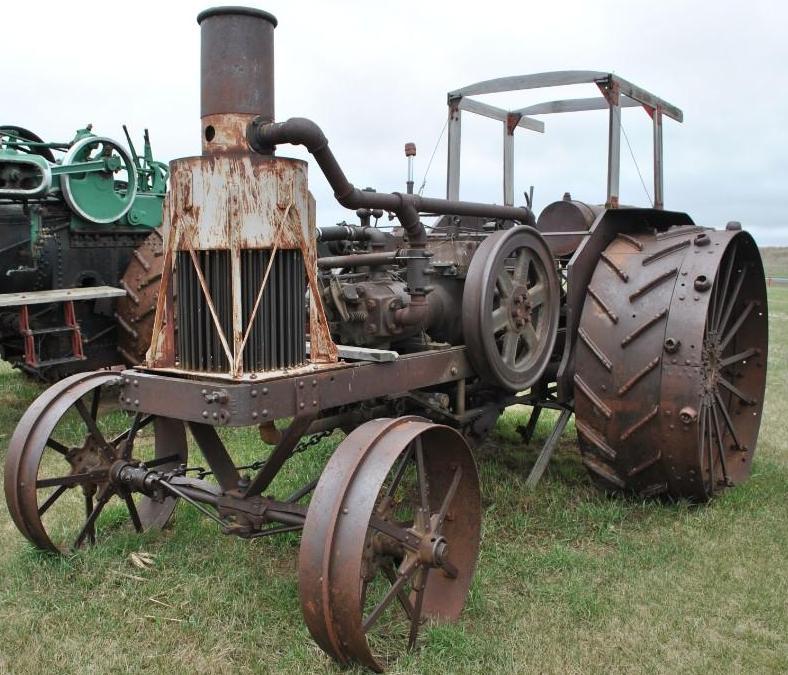

Avery 20-35
Avery 20-35 · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Max power
16.9 kW
Weight
3402 kg
Hover a source tag to verify
Overview
ManufacturerAveryReference
Built in Peoria, IllinoisReference
Two-wheel driveReference
Engine
Avery 8.6L 4-cyl keroseneReference
Fuel tank113.6 LReference
Aux. fuel13.2 LReference
Drawbar (claimed)14.9 kWReference
Belt (claimed)26.1 kWReference
Drawbar (tested)16.9 kWReference
Belt (tested)27.8 kWReference
AveryReference
keroseneReference
4-cylinderReference
opposed horizontalReference
Displacement8.6 LReference
Bore/Stroke124 x 178 mmReference
Rated RPM900Reference
Belt power (max)27.8 kWReference
Max power16.9 kWReference
Transmission
2-speedReference
Gears2 forward and 1 reverseReference
Dimensions
Weight3402 kgReference
Front tire36x6Reference
Rear tire60x16Reference
Ag front36x6 steelReference
Ag rear60x16 steelReference
Length386 cmReference
Width172 cmReference
Height203 cmReference
20-35 Serial Numbers
Location:frameReference
Test results
June 1923Reference
Drawbar performanceReference
Max pull1397 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
