Tractor · 1920Unverified

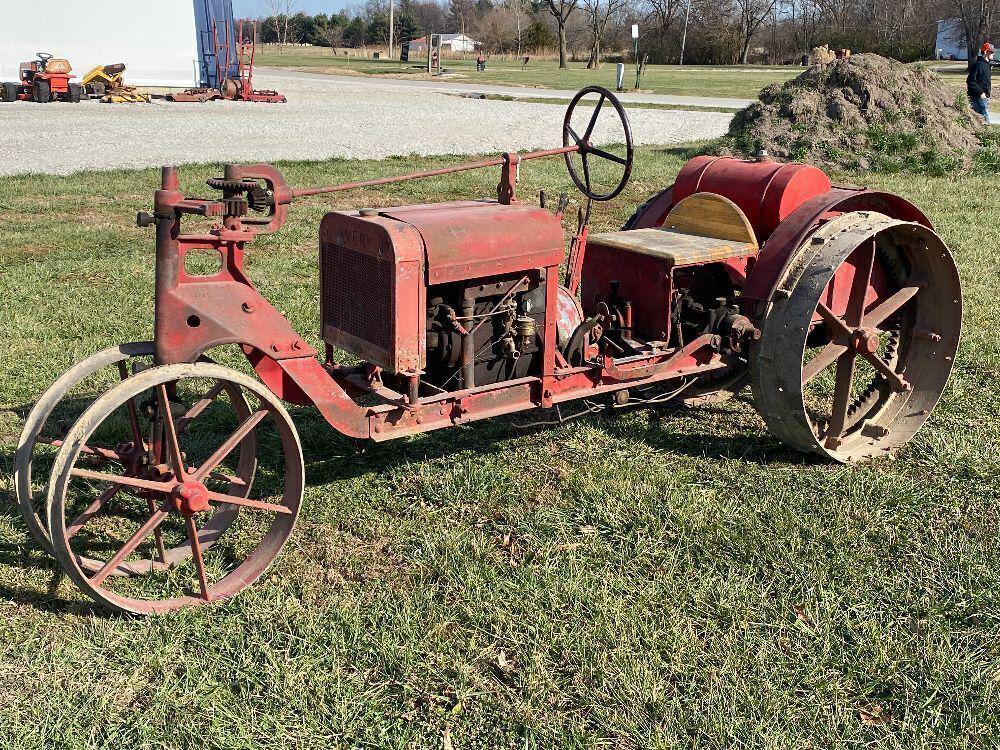

Avery 5-10

Name: Avery 5-10
Brand: Avery

Avery 5-10 · 5 hp. Reference specifications; pending source verification.

The Avery 5-10 is a tractor model with a rated power of 5 hp, which places it at the lighter end of its class. The 5-10 was built from 1920 to 1922. Under the hood is a 4-cylinder petrol liquid-cooled engine, paired with two-wheel drive with a 3-speed gearbox. It has a listed operating weight of 1202 kg, and it suits operations of up to 200 ac. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

5 hp

Max power

4.0 kW

Weight

1202 kg

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

5 hp

Recorded weight

1202 kg

Transmissions

3-speed

Production years

1920-1922

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAveryReference

Built in Peoria, IllinoisReference

Original price$365Reference

Two-wheel driveReference

Engine

Avery 1.9L 4-cyl gasolineReference

Fuel tank37.9 LReference

Drawbar (claimed)3.7 kWReference

Belt (claimed)7.5 kWReference

Drawbar (tested)4.0 kWReference

Belt (tested)8.3 kWReference

AveryReference

gasolineReference

4-cylinderReference

liquid-cooled vertical L-headReference

Displacement1.9 LReference

Bore/Stroke76 x 102 mmReference

Rated RPM1200Reference

Coolant capacity17.0 LReference

Belt power (max)8.3 kWReference

Max power4.0 kWReference

Transmission

3-speedReference

Gears3 forward and 1 reverseReference

Dimensions

Weight1202 kgReference

Front tire28x4Reference

Rear tire42x5Reference

Ag front28x4 steelReference

Ag rear42x5 steelReference

Length299 cmReference

Width129 cmReference

Test results

September 1920Reference

Drawbar performanceReference

Max pull506 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
