Tractor · 1916Unverified

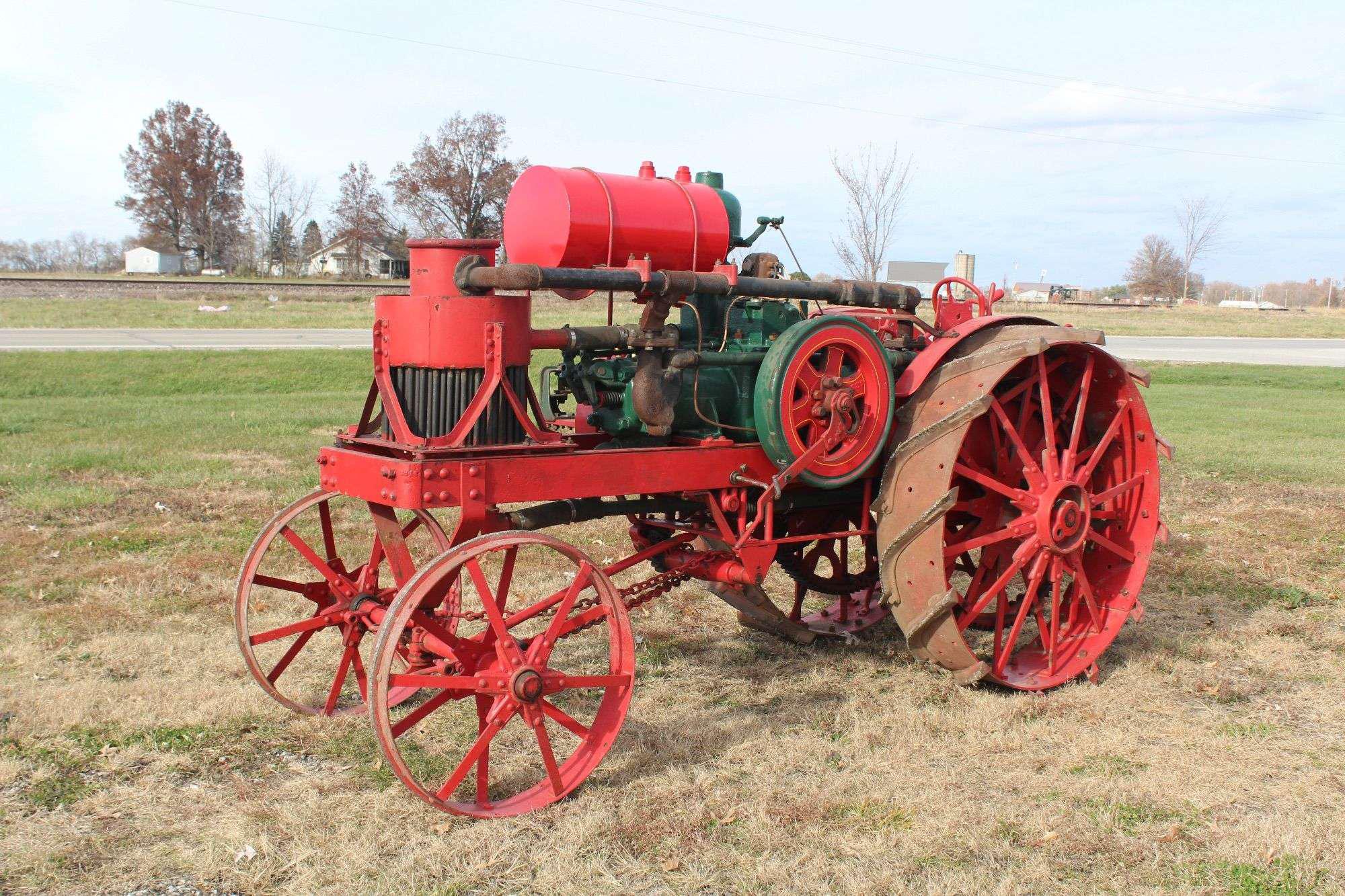

Avery 8-16
Avery 8-16 · 9 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
9 hp
Max power
7.4 kW
Weight
2222 kg
Hover a source tag to verify
Overview
ManufacturerAveryReference
Built in Peoria, IllinoisReference
Two-wheel driveReference
Engine
Avery 4.7L 2-cyl gasolineReference
Fuel tank45.4 LReference
Drawbar (claimed)6.7 kWReference
Belt (claimed)11.9 kWReference
Drawbar (tested)7.4 kWReference
Belt (tested)12.5 kWReference
AveryReference
gasolineReference
2-cylinderReference
opposed horizontalReference
Displacement4.7 LReference
Bore/Stroke140 x 152 mmReference
Rated RPM750Reference
Belt power (max)12.5 kWReference
Max power7.4 kWReference
Transmission
2-speedReference
TransmissiongearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2222 kgReference
Front tire30x5Reference
Rear tire50x12Reference
Ag front30x5 steelReference
Ag rear50x12 steelReference
Length330 cmReference
Width142 cmReference
Height182 cmReference
8-16 Serial Numbers
Location:frameReference
Test results
March 1921Reference
Drawbar performanceReference
Max pull766 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
