Tractor · 2021Unverified

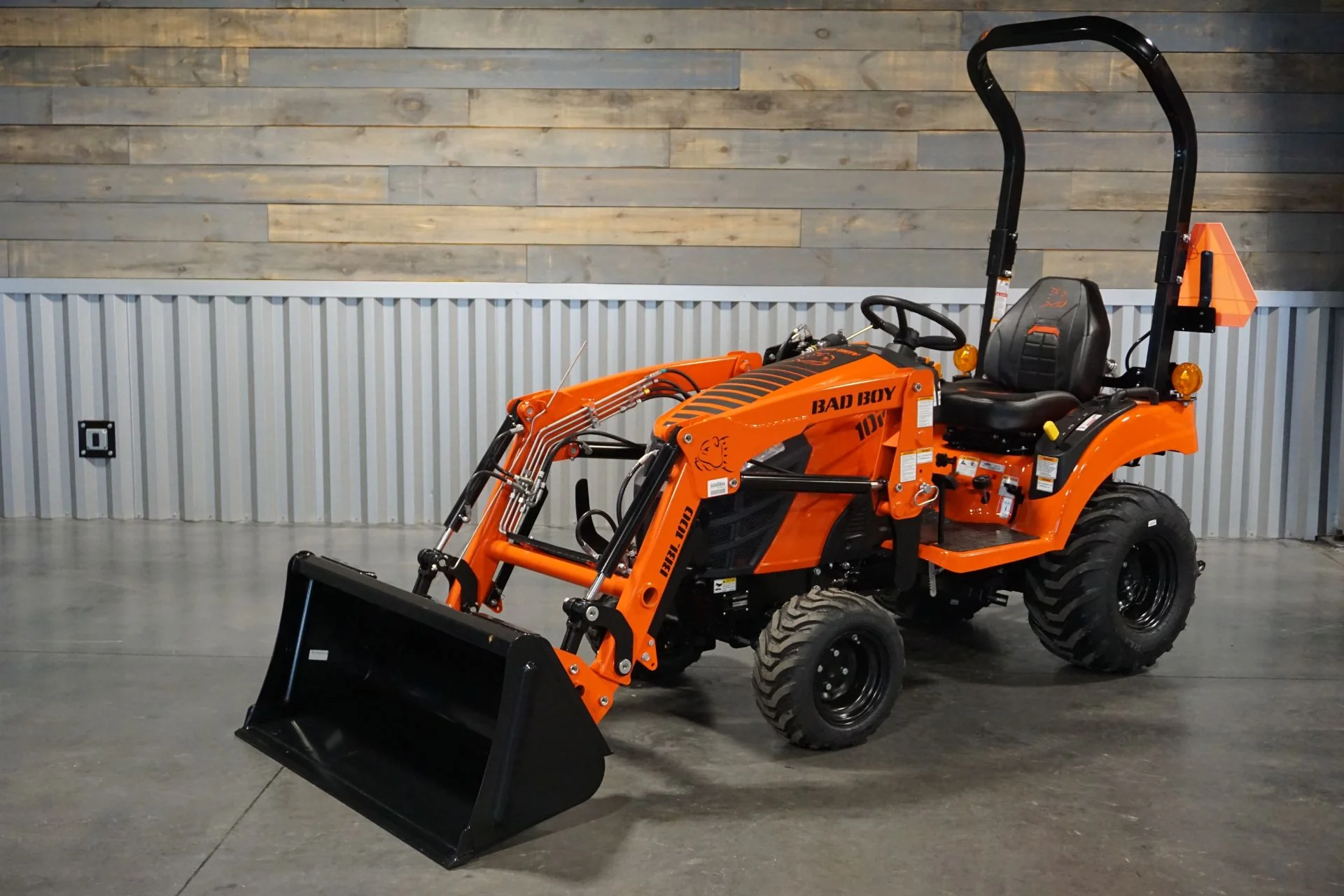

Bad Boy 1022
Bad Boy 1022 — 10 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
650 kg
Hover a source tag to verify
Overview
DistributorBad BoyReference
ManufacturerTYMReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine (gross)16.0 kWReference
Yanmar 3TNM74FReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke74 x 77 mmReference
Power (gross)16.0 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM3200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.0 LReference
Coolant capacity3.5 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity13.4 LReference
PTO & Hydraulics
PTO (claimed)11.5 kWReference
Hydraulic system13.6 LReference
Typeopen centerReference
Capacity13.6 LReference
Pump flow15.9 lpmReference
Total flow23.8 lpmReference
Steering flow7.9 lpmReference
Rear TypeINReference
Controlposition controlReference
Rear lift (at 24"/610mm)226 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@3200Reference
Mid PTOindependentReference
Engine RPM2500@3200Reference
Capacities
Fuel25.0 LReference
Dimensions
Wheelbase134 cmReference
Weight650 kgReference
Front tire16x7.50-9Reference
Rear tire24x12.00-12Reference
Weight338 kgReference
Standard tires (ag)Front: 16x7.50-9. Rear: 24x12.00-12Reference
Industrial front16x7.50-8Reference
Industrial rear16x12.00-12Reference
Length239 cmReference
Width113 cmReference
Height (ROPS)219 cmReference
Ground clearance21 cmReference
Bad Boy 1022 attachments
front-end loaderReference
backhoeReference
1022 Serial Numbers
Location:Serial number decal on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Bad Boy BBH100 Backhoe
Backhoe typeBad Boy BBH100 BackhoeReference
Transport height154 cmReference
Bucket width30 cmReference
2-Foot flat digging depth168 cmReference
Reach from pivot227 cmReference
Loading height154 cmReference
Bucket Rotation169°Reference
Swing Arc140°Reference
Bucket force895 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
