Tractor · 2022Unverified

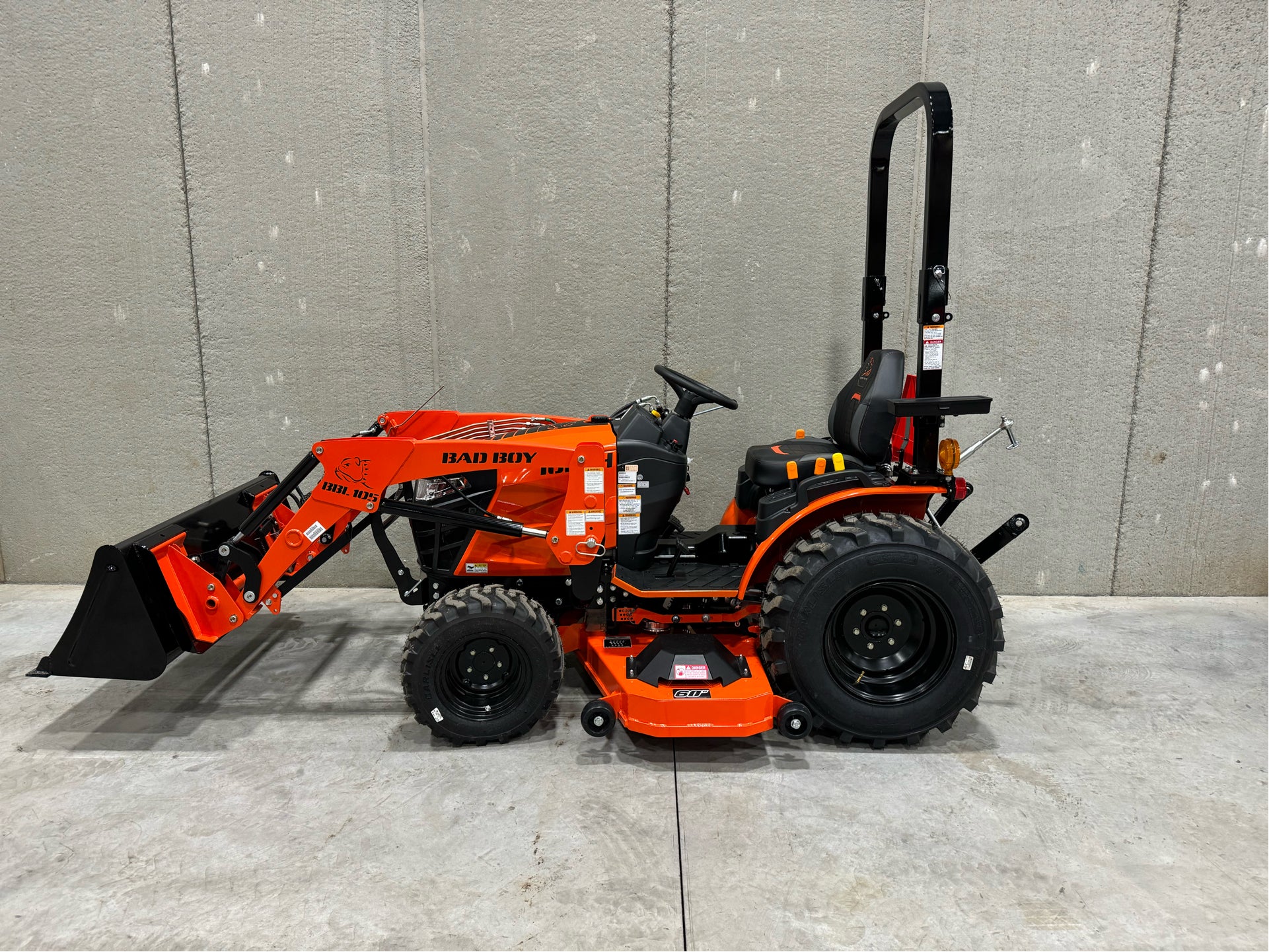

Bad Boy 1025
Bad Boy 1025 — 10 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
742 kg
Hover a source tag to verify
Overview
DistributorBad BoyReference
ManufacturerTYMReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine (gross)18.3 kWReference
Yanmar 3TNV80FReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke80 x 84 mmReference
Power (gross)18.3 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Compression23:1Reference
Rated RPM3000Reference
Idle RPM1350-3235Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity3.6 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.0 kWReference
Typeopen centerReference
Pressure152.0 barReference
Pump flow15.9 lpmReference
Total flow26.5 lpmReference
Steering flow10.6 lpmReference
Steering press.108.0 barReference
Rear TypeINReference
Controlposition controlReference
Rear lift (at ends)600 kgReference
Rear lift (at 24"/610mm)204 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2893Reference
Mid PTOindependentReference
Mid PTO Type1-inch 15-splineReference
Engine RPM2000@2875Reference
Dimensions
Wheelbase146 cmReference
Weight742 kgReference
Weight158 kgReference
Weight370 kgReference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length264 cmReference
Width116 cmReference
Height (ROPS)231 cmReference
Ground clearance23 cmReference
Bad Boy 1025 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
1025 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Bad BoyReference
Cutting width152 cmReference
DriveshaftReference
Overall width186 cmReference
Cut height2 to 12 cmReference
Bad Boy BBH105 Backhoe
Backhoe typeBad Boy BBH105 BackhoeReference
Transport height180 cmReference
Bucket width30 cmReference
2-Foot flat digging depth192 cmReference
Reach from pivot274 cmReference
Loading height159 cmReference
Bucket Rotation180°Reference
Swing Arc140°Reference
Bucket force916 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
