Tractor · 2021Unverified

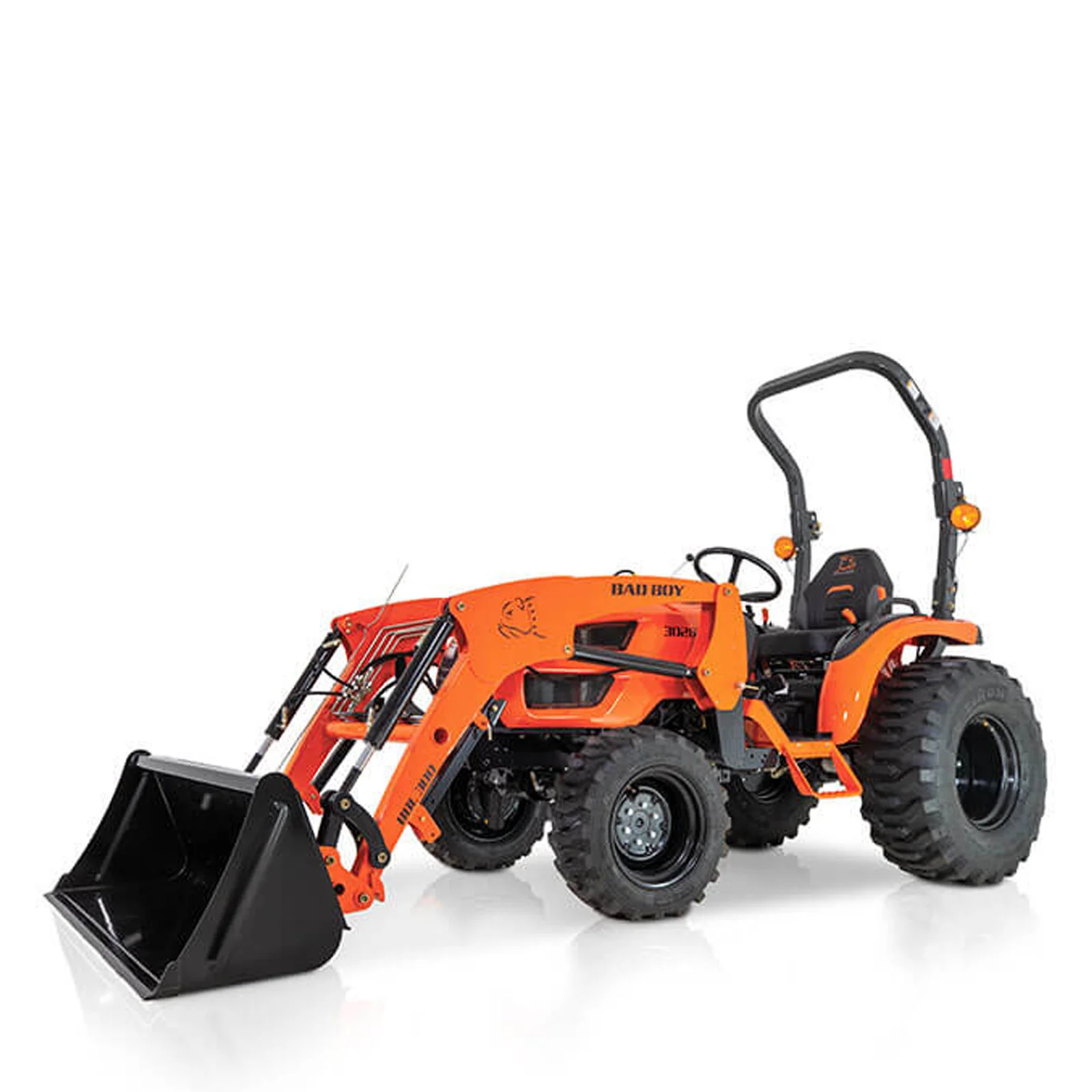

Bad Boy 3026
Bad Boy 3026 — 30 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
955 kg
Hover a source tag to verify
Overview
DistributorBad BoyReference
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
TYM 1.2L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)17.9 kWReference
TYM A1100N2Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.2 LReference
Bore/Stroke78 x 82 mmReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Compression21.5:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)13.4 kWReference
Typeopen centerReference
Pump flow16.3 lpmReference
Total flow28.0 lpmReference
Steering flow11.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)650 kgReference
Rear lift (at 24"/610mm)294 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM960@2600Reference
Mid PTOindependentReference
Engine RPM2500@2600Reference
Dimensions
Wheelbase166 cmReference
Weight955 kgReference
Weight375 kgReference
Industrial front25x8.50-14Reference
Industrial rear14-17.5Reference
Length279 cmReference
Width136 cmReference
Height (ROPS)232 cmReference
Ground clearance41 cmReference
Front tread114 cmReference
Rear tread109 cmReference
Bad Boy 3026 attachments
front-end loaderReference
backhoeReference
3026 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery CCA540Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Bad Boy BBH200 Backhoe
Backhoe typeBad Boy BBH200 BackhoeReference
Transport height179 cmReference
Bucket width30 cmReference
2-Foot flat digging depth193 cmReference
Reach from pivot264 cmReference
Loading height162 cmReference
Bucket Rotation180°Reference
Swing Arc150°Reference
Bucket force929 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
