Tractor · 2021Unverified

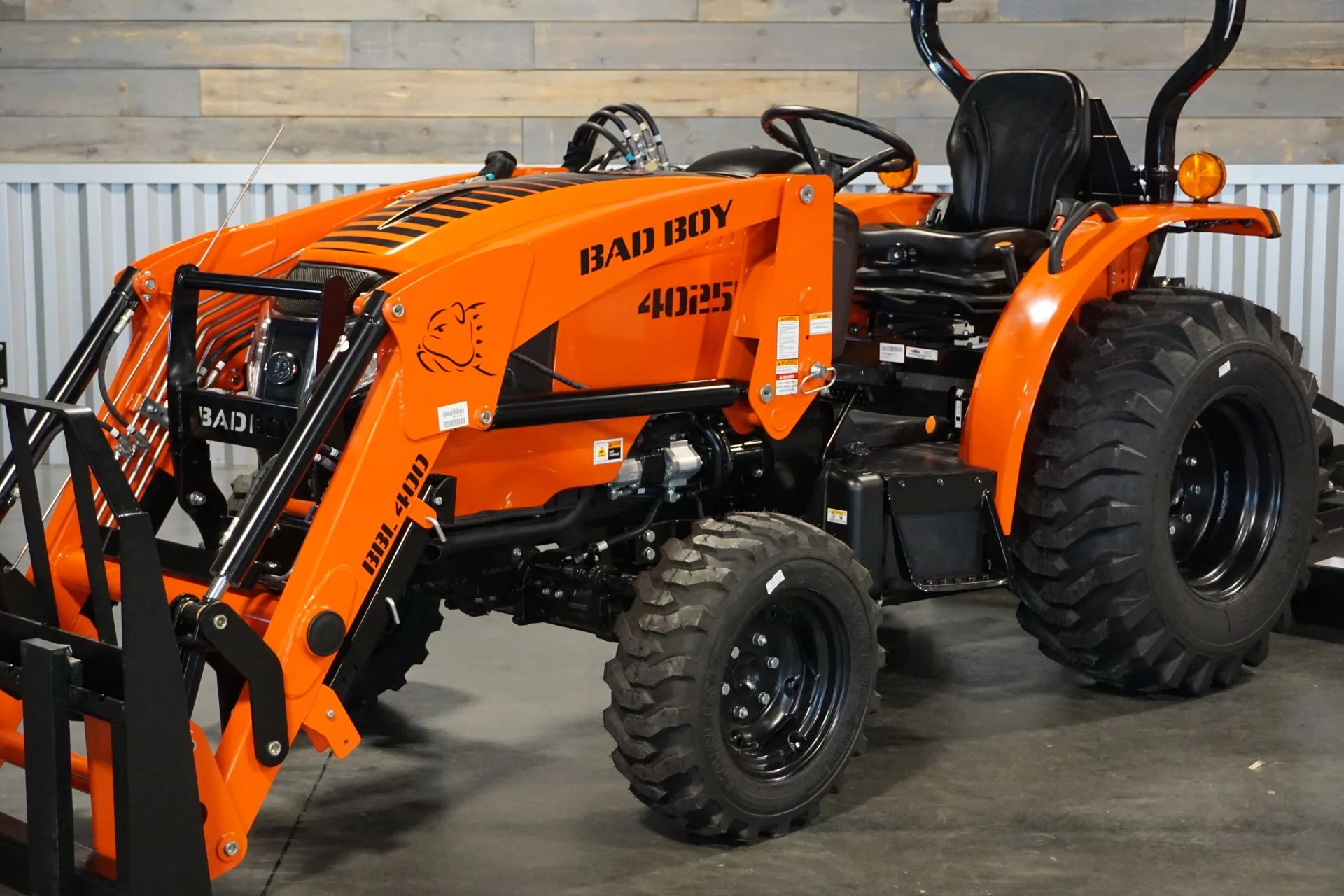

Bad Boy 4025
Bad Boy 4025 — 40 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1347 kg
Hover a source tag to verify
Overview
DistributorBad BoyReference
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
TYM 1.7L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)18.3 kWReference
TYM A1700N6Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)18.3 kWReference
Air cleanerdryReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.3 LReference
Coolant capacity5.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Typeopen centerReference
Pump flow43.5 lpmReference
Total flow28.4 lpmReference
Steering flow15.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)498 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase166 cmReference
Weight1347 kgReference
Weight607 kgReference
Industrial front25x8.50-14Reference
Industrial rear15-19.5Reference
Length342 cmReference
Width144 cmReference
Height (ROPS)246 cmReference
Ground clearance38 cmReference
Front tread120 cmReference
Rear tread113 cmReference
Bad Boy 4025 attachments
front-end loaderReference
backhoeReference
4025 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery CCA540Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Bad Boy BBH400 Backhoe
Backhoe typeBad Boy BBH400 BackhoeReference
Transport height193 cmReference
Bucket width40 cmReference
2-Foot flat digging depth219 cmReference
Reach from pivot299 cmReference
Loading height146 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1079 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
