Tractor · 2024Unverified

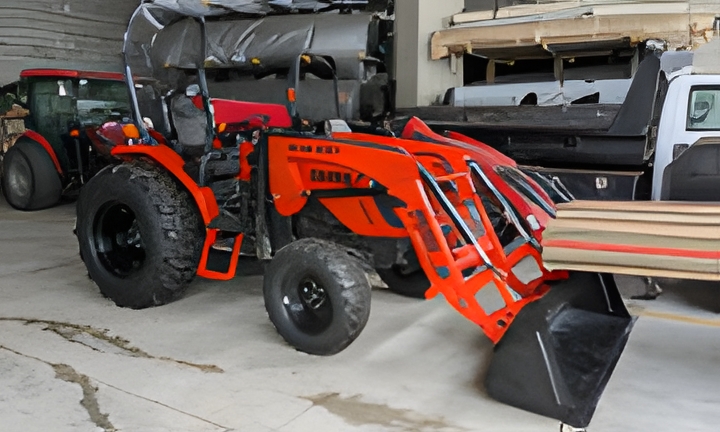

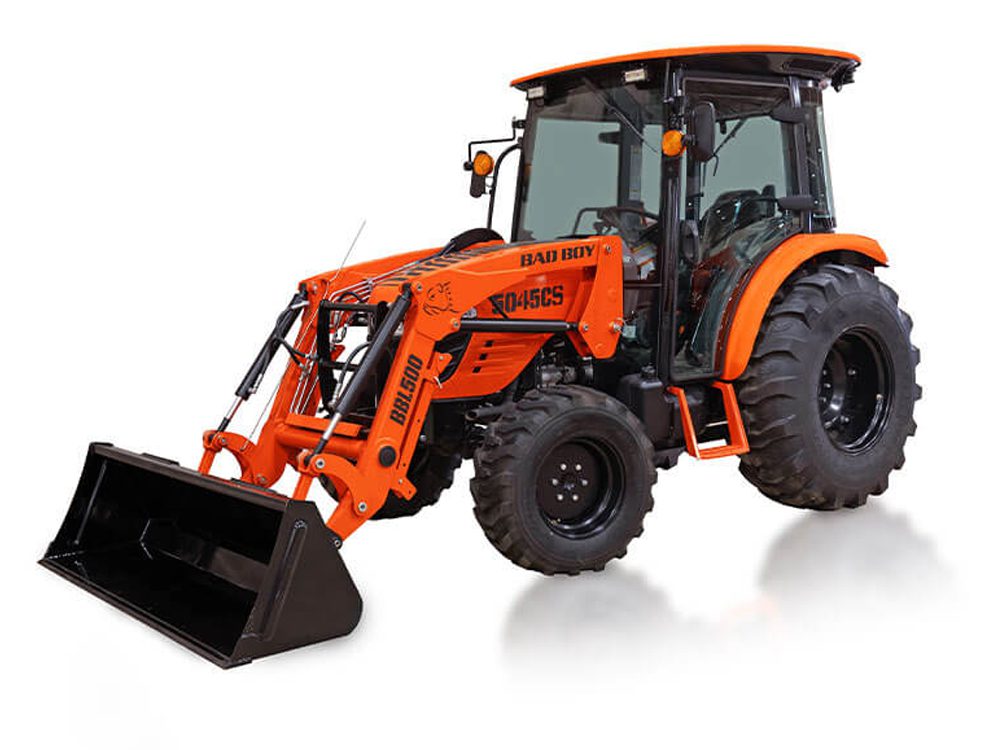

Bad Boy 5045
Bad Boy 5045 — 50 Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3831 to 4349 pounds
Hover a source tag to verify
Overview
DistributorBad BoyReference
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
5045SROPS shuttleReference
5045HROPS hydrostaticReference
5045SCCab shuttleReference
5045HCCab hydrostaticReference
Engine
TYM 2.3L 4-cyl dieselReference
Engine (gross)33.6 kWReference
TYM A2300N2Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)33.6 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears16 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (4-range)Reference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Typeopen centerReference
Shuttle Pump flow43.1 lpmReference
Hydro Pump flow40.5 lpmReference
Shuttle Total flow62.1 lpmReference
Hydro Total flow59.4 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight3831 to 4349 poundsReference
Length322 cmReference
Width165 cmReference
Height (ROPS)249 cmReference
Height (cab)246 cmReference
ROPS Weight1737 kgReference
Cab Weight1972 kgReference
Ground clearance39 cmReference
Bad Boy 5045 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
