Tractor · 2024Unverified

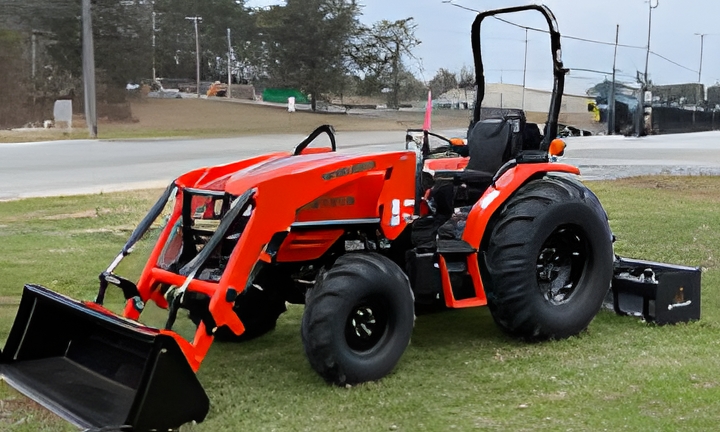

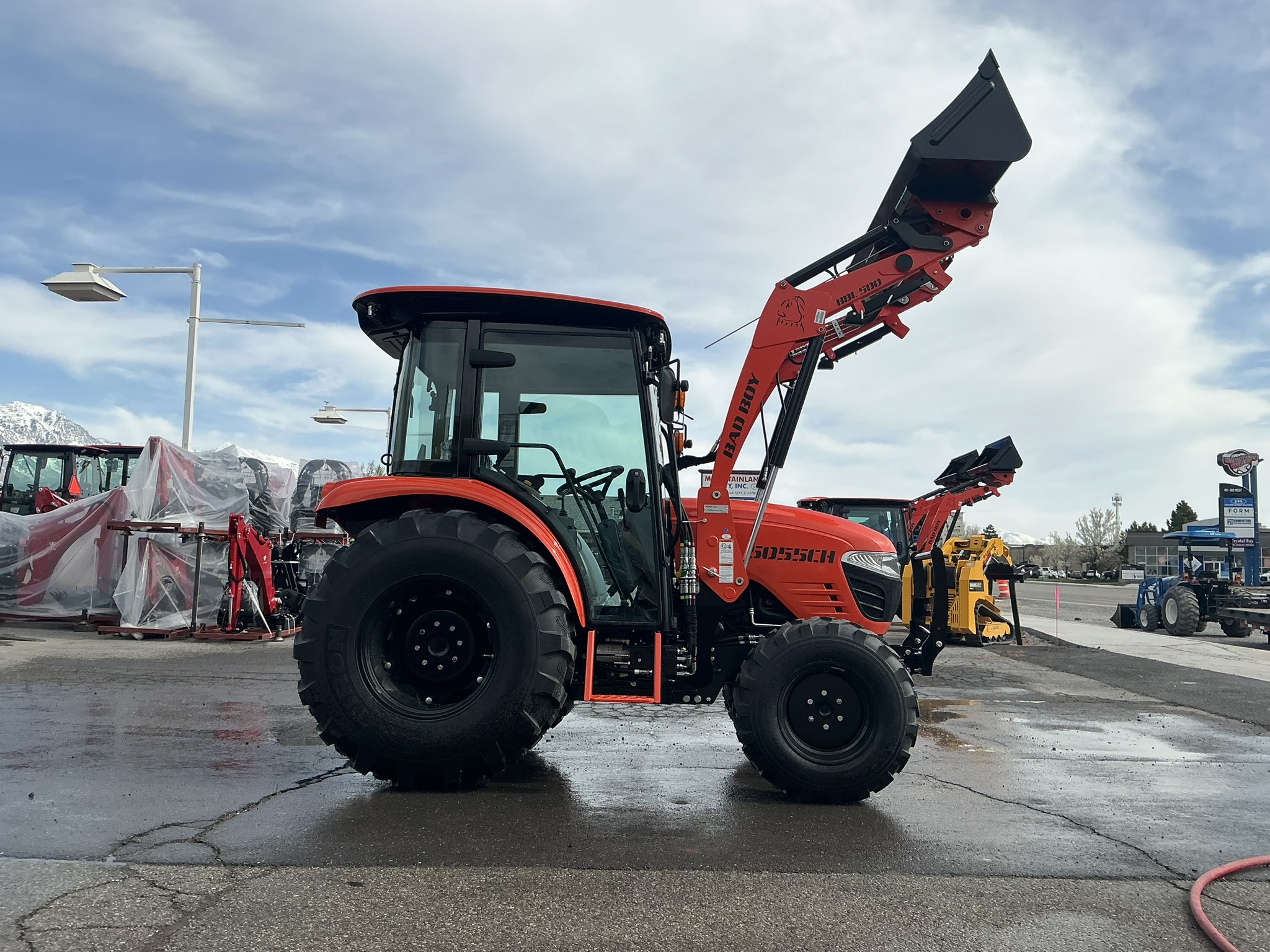

Bad Boy 5055

Name: Bad Boy 5055
Brand: Bad Boy

Bad Boy 5055 — 50 Series · 55 hp. Reference specifications; pending source verification.

The Bad Boy 5055 is a compact tractor model with a 55 hp rating, making it a suitable option for smaller-scale operations. Manufactured in 2024, it features a 4-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive system. The tractor's weight ranges from 3836 to 4349 pounds. It is designed to manage landholdings of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

3836 to 4349 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

55 hp

Recorded weight

1740 kg

Transmissions

16-speed shuttle

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorBad BoyReference

ManufacturerTYMReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab available with air-conditioning.Reference

Variants

5055SROPS shuttleReference

5055HROPS hydrostaticReference

5055SCCab shuttleReference

5055HCCab hydrostaticReference

Engine

TYM 2.3L 4-cyl dieselReference

Engine (gross)41.0 kWReference

TYM A2300N2Reference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

Power (gross)41.0 kWReference

Air cleanerdryReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed shuttleReference

hydrostaticReference

TypeshuttleReference

Gears16 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (4-range)Reference

PTO & Hydraulics

PTO (claimed)32.8 kWReference

Typeopen centerReference

Shuttle Pump flow43.1 lpmReference

Hydro Pump flow40.5 lpmReference

Shuttle Total flow62.1 lpmReference

Hydro Total flow59.4 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Rear lift (at ends)1499 kgReference

Rear lift (at 24"/610mm)1099 kgReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase180 cmReference

Weight3836 to 4349 poundsReference

Length322 cmReference

Width165 cmReference

Height (ROPS)249 cmReference

Height (cab)246 cmReference

ROPS Weight1740 kgReference

Cab Weight1972 kgReference

Ground clearance39 cmReference

Bad Boy 5055 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
