Tractor · 1986Unverified

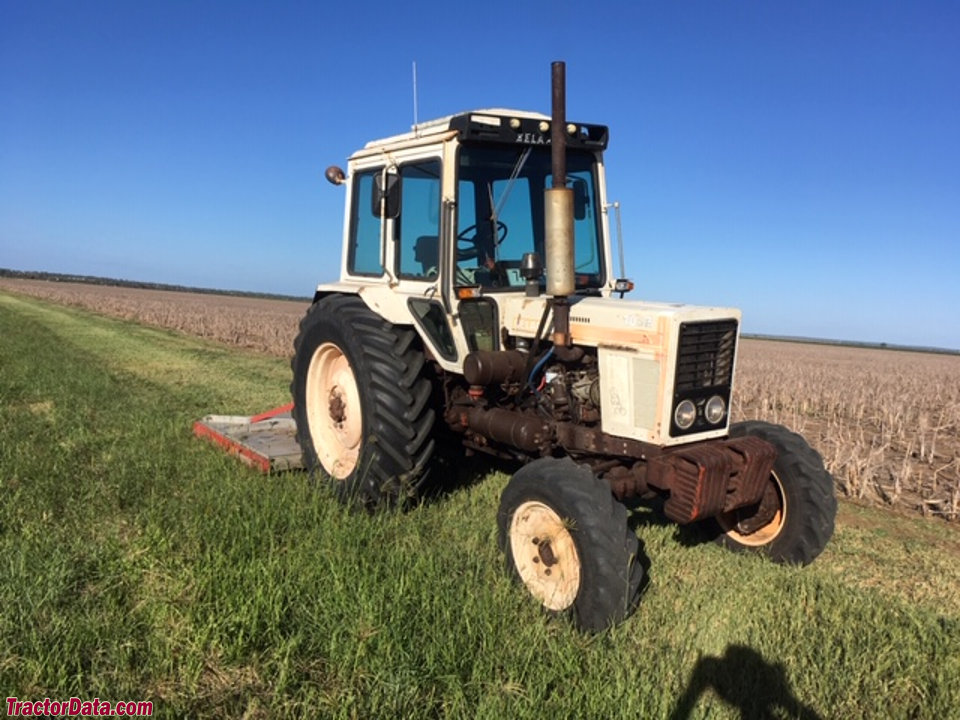

Belarus 1052
Belarus 1052 — Utility tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
3270 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Utility tractorReference
Four-wheel driveReference
Mechanical dry disc brakesReference
Cab standard with optional air-conditioning.Reference
Engine
Belarus 4.7L 4-cyl dieselReference
Engine78.3 kWReference
Belarus D240Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power78.3 kWReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM600-2400Reference
Torque372.6 NmReference
Torque RPM1250Reference
Transmission
18-speed gearReference
TypegearReference
Gears18 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Hydraulic system20.4 LReference
Typeopen centerReference
Capacity20.4 LReference
Pressure156.8 barReference
Valves3Reference
Pump flow37.5 lpmReference
Rear TypeIIReference
Rear lift (at ends)1999 kgReference
Rear lift (at 24"/610mm)800 kgReference
Rear PTO Type540/1000Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Capacities
Fuel129.8 LReference
Dimensions
Weight3270 kgReference
Front tire7.5x20Reference
Rear tire15.5x38Reference
Ag front7.5x20Reference
Ag rear15.5x38Reference
Length385 cmReference
Width197 cmReference
Height (cab)290 cmReference
Ground clearance62 cmReference
Front tread119 to 180 cmReference
Rear tread135 to 184 cmReference
Speeds
With 15.5x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
