Tractor · 2004Unverified

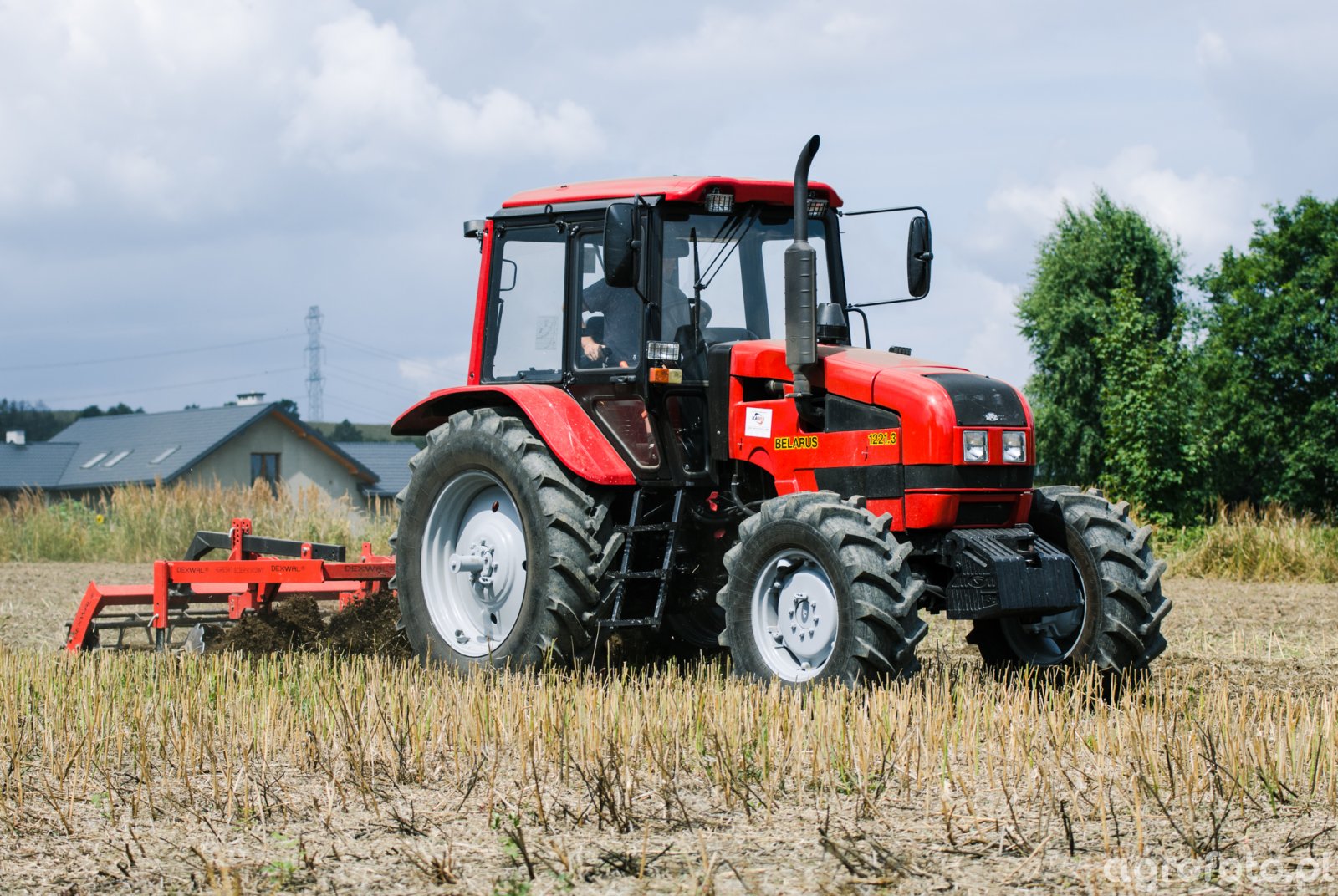

Belarus 1221 MIG
Belarus 1221 MIG — MIG Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
5148 kg
Hover a source tag to verify
Overview
DistributorBelarusReference
ManufacturerPronarReference
Utility tractorReference
Built in PolandReference
Differential lockhydraulicReference
Power steeringReference
Dry disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Belarus 7.1L 6-cyl dieselReference
Engine96.9 kWReference
Belarus D-260.2cReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke110 x 125 mmReference
Power96.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Oil capacity15.0 LReference
Coolant capacity20.0 LReference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Oil capacity40.0 LReference
Capacities
Fuel169.9 LReference
PTO & Hydraulics
Hydraulic system22.0 LReference
Typeopen centerReference
Capacity22.0 LReference
Valves3Reference
Pump flow53.0 lpmReference
Rear TypeIIReference
Rear lift4500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight5148 kgReference
Front tire420/70R24Reference
Rear tire520/70R38Reference
Ag front420/70R24Reference
Ag rear520/70R38Reference
Length495 cmReference
Width225 cmReference
Height284 cmReference
Clearance (rear axle)46 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
