Tractor · 1977Unverified
Belarus 1500
Belarus 1500 — Four-wheel Drive (4WD) tractor · 169 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
169 hp
Max power
109.6 kW
Weight
8436 kg
Hover a source tag to verify
Overview
DistributorBelarusReference
ManufacturerXTZReference
Four-wheel Drive (4WD) tractorReference
Built in Kharkiv, UkraineReference
Original price was $37,000 in 1985Reference
Four-wheel driveReference
Articulated power steeringReference
Pneumatic shoe brakesReference
Cab standard.Reference
Variants
T-150KEuropean model designationReference
Engine
Belarus 9.1L 6-cyl dieselReference
Engine130.5 kWReference
Drawbar (claimed)109.6 kWReference
Drawbar (tested)109.6 kWReference
Belarus CMD-62Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled V-6Reference
Displacement9.1 LReference
Bore/Stroke130 x 115 mmReference
Power130.5 kWReference
Air cleanerdryReference
Compression15:1Reference
Rated RPM2100Reference
Starter typegasoline pony motorReference
Coolant capacity41.6 LReference

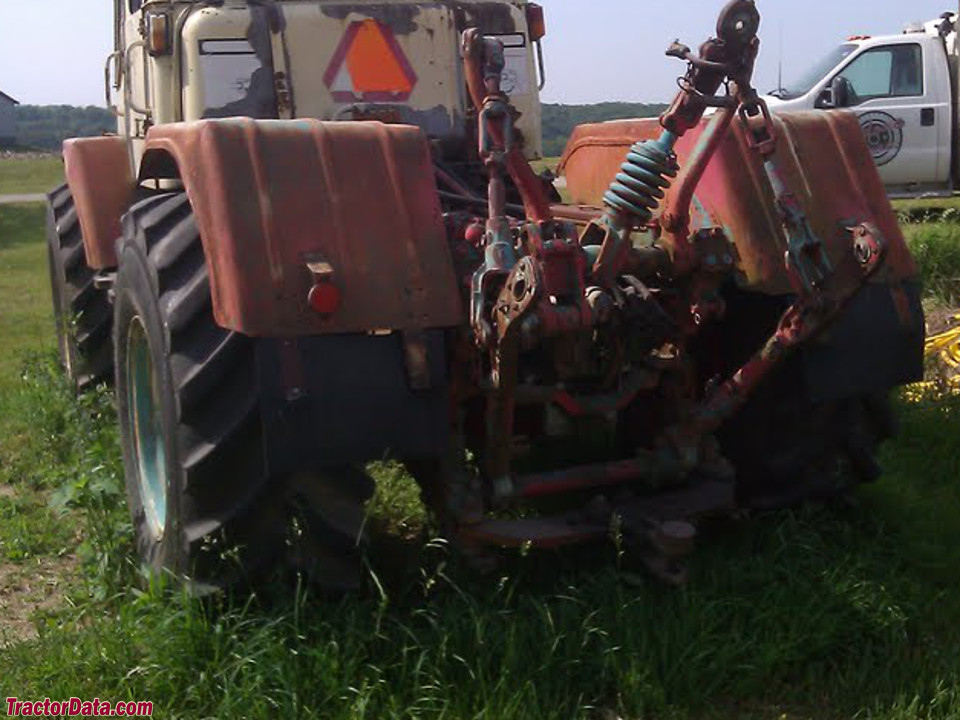

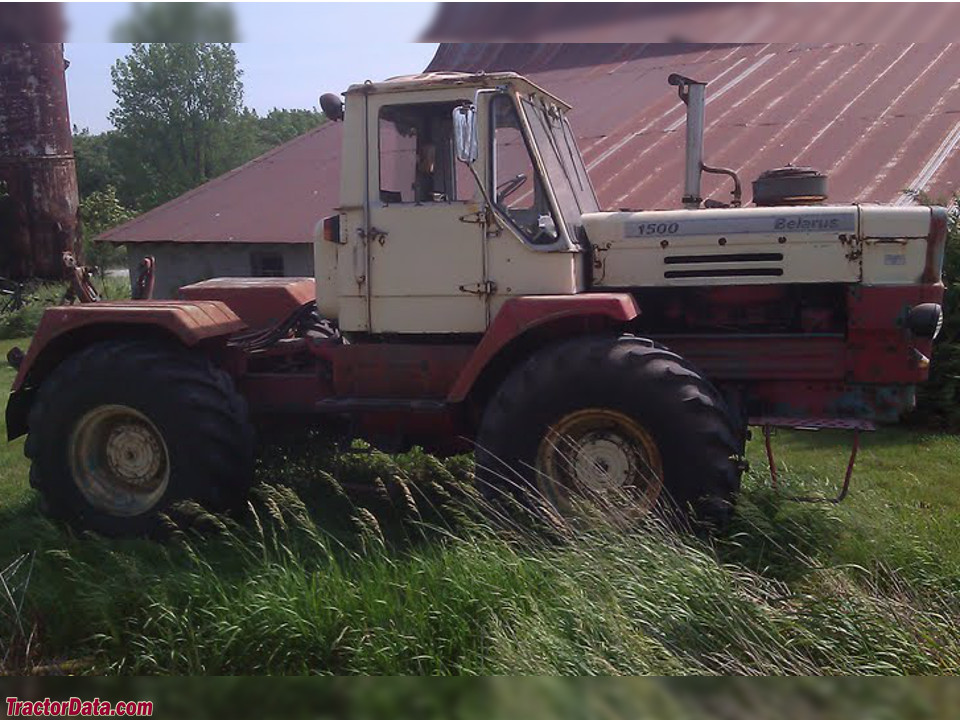

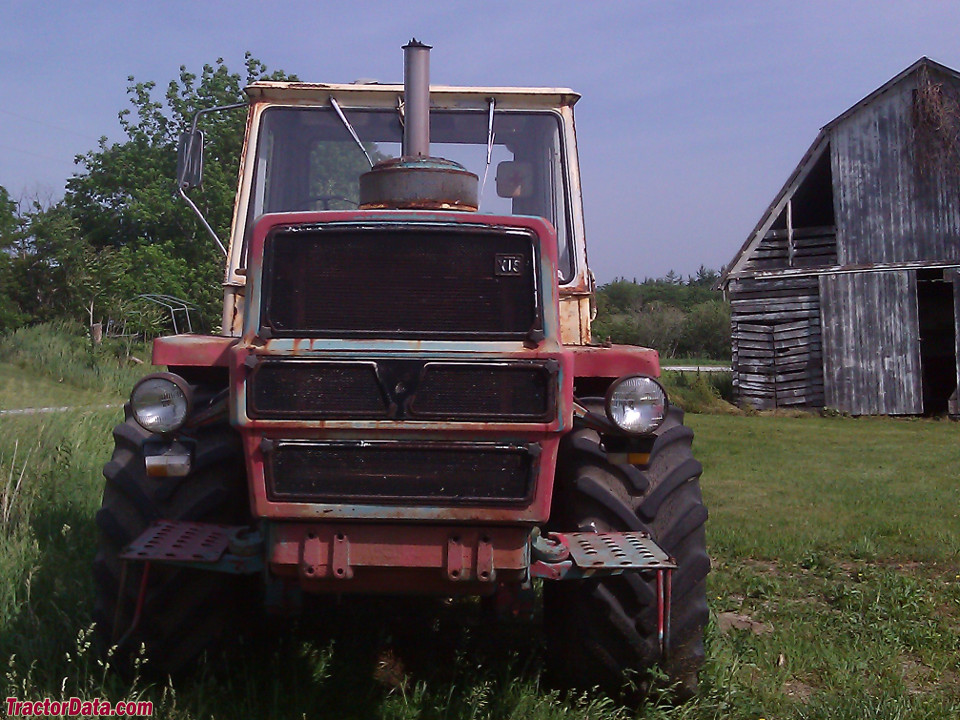

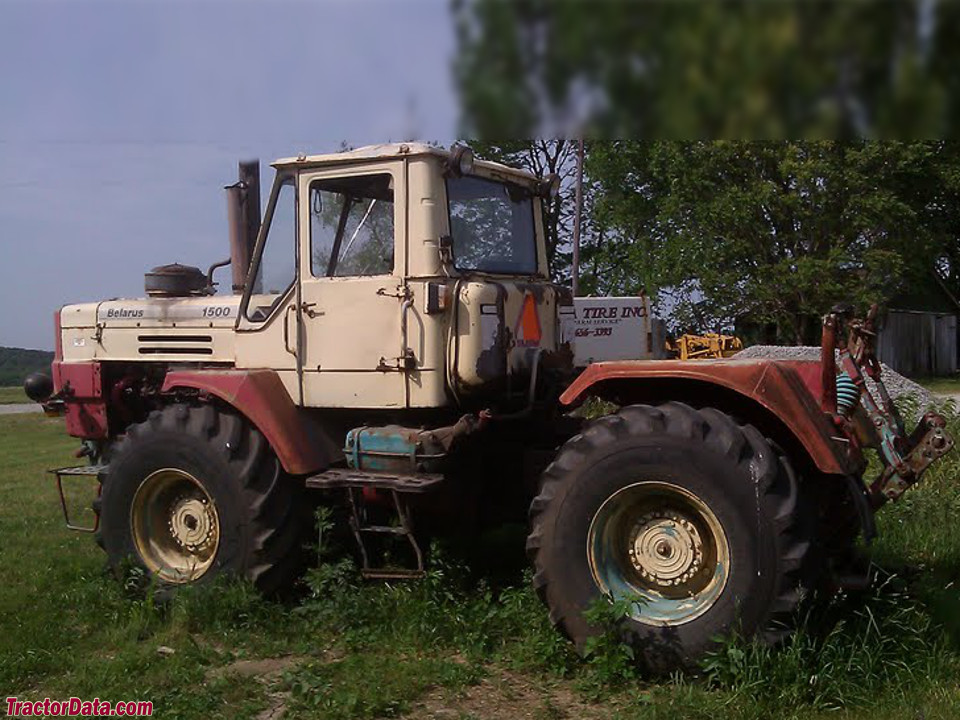

Image courtesy of Nevin BontragerReference
Power at rated engine speed125.8 kWReference
Max power109.6 kWReference
Transmission
12-speed partial power shiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)125.3 kWReference
PTO (tested)125.8 kWReference
Hydraulic system37.1 LReference
Capacity37.1 LReference
Pump flow79.9 lpmReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Engine RPM540@2100Reference
Engine RPM1000@2048Reference
Power at rated PTO speed126.5 kWReference
Capacities
Fuel314.9 LReference
Dimensions
Wheelbase286 cmReference
Weight8436 kgReference
Front tire21.3-24Reference
Rear tire21.3-24Reference
Ag front21.3-24Reference
Ag rear21.3-24Reference
Length612 cmReference
Width240 cmReference
Height316 cmReference
Operating weight8436 kgReference
Ballasted weight9019 kgReference
Front tread185 cmReference
Rear tread185 cmReference
Test results
Diesel 12-speed 4WDNovember 14 - 27, 1979Link: Nebraska Tractor Test 1333 fileReference
PTO performanceReference
Fuel use39.4 l/hourReference
Fuel use39.0 l/hourReference
Drawbar performanceReference
Fuel use38.2 l/hourReference
Gear 2-2 used for power test.Reference
Max pull8759 kgReference
Gear 1-3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
