Tractor · Unverified

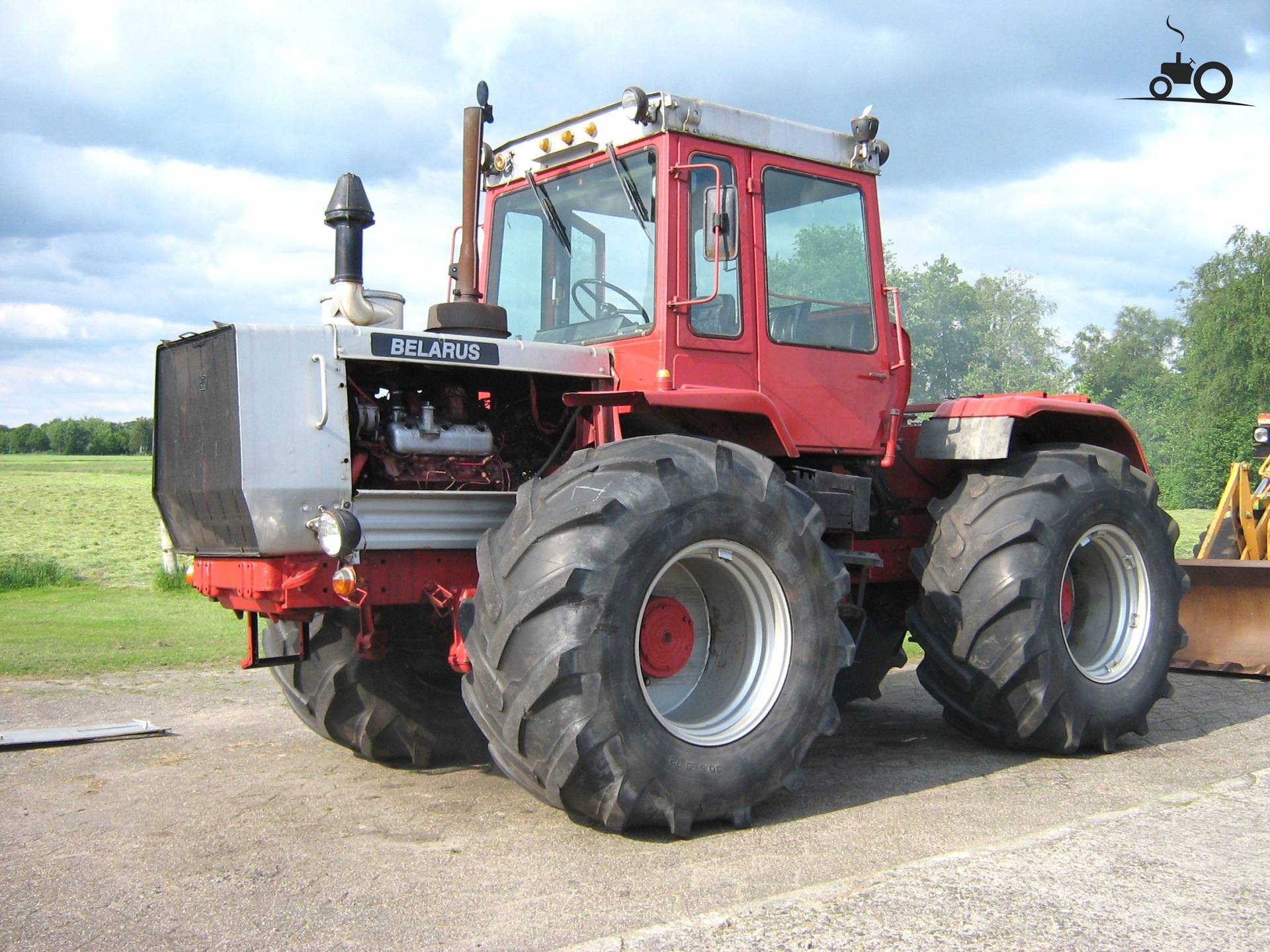

Belarus 1507
Belarus 1507 — Four-wheel Drive (4WD) tractor · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
9200 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 artciulated 4WDReference
Final drivesplanetaryReference
Articulated power steeringReference
Pneumatic drum brakesReference
Cab standard with heat.Reference
Engine
Belarus 9.2L 6-cyl dieselReference
Engine123.0 kWReference
Belarus CMD-63Reference
turbocharged dieselReference
6-cylinder V6-valveReference
liquid-cooledReference
Displacement9.2 LReference
Bore/Stroke130 x 115 mmReference
Power123.0 kWReference
Air cleanerdryReference
Compression15:1Reference
Rated RPM2100Reference
Firing order1-4-2-5-3-6Reference
StarterelectricReference
Starter volts24Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutchpneumatic dry discReference
Four gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow79.9 lpmReference
Rear TypeIIIReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase286 cmReference
Weight9200 kgReference
Front tire21.3x24Reference
Rear tire21.3x24Reference
Ag front21.3x24Reference
Ag rear21.3x24Reference
Length593 cmReference
Width246 cmReference
Height331 cmReference
Operating weight9200 kgReference
Ground clearance40 cmReference
Front tread185 cmReference
Rear tread185 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
