Tractor · 1985Unverified

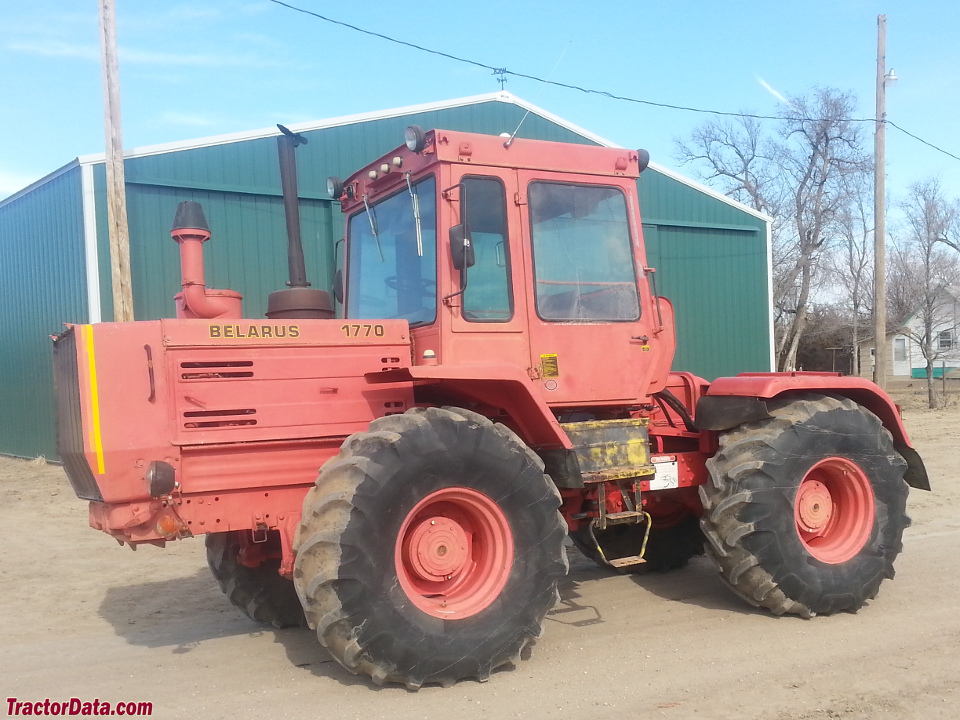

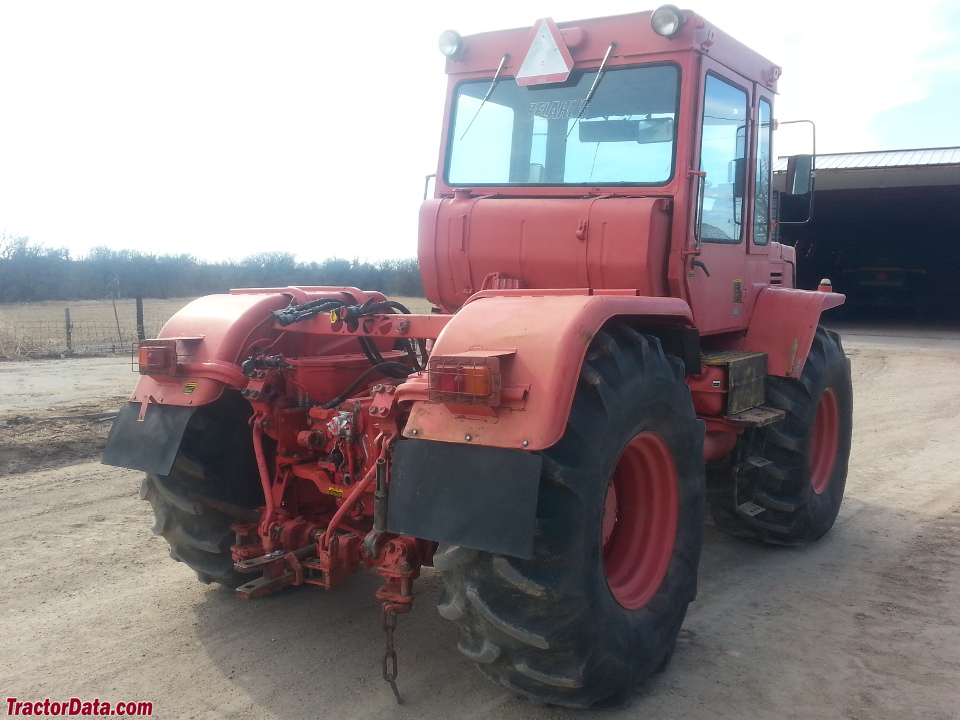

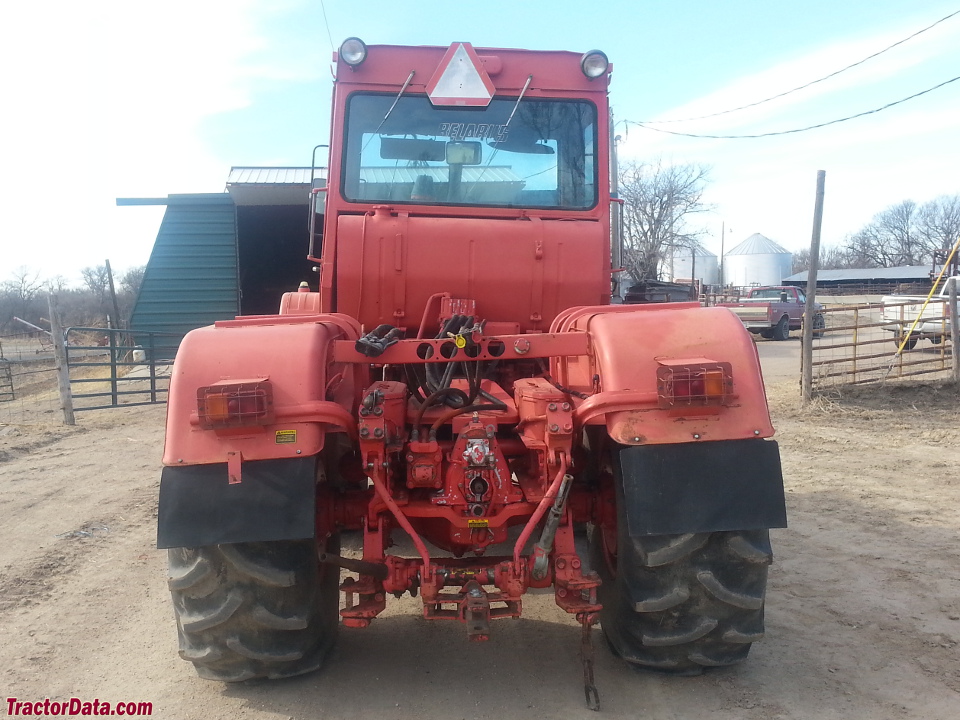

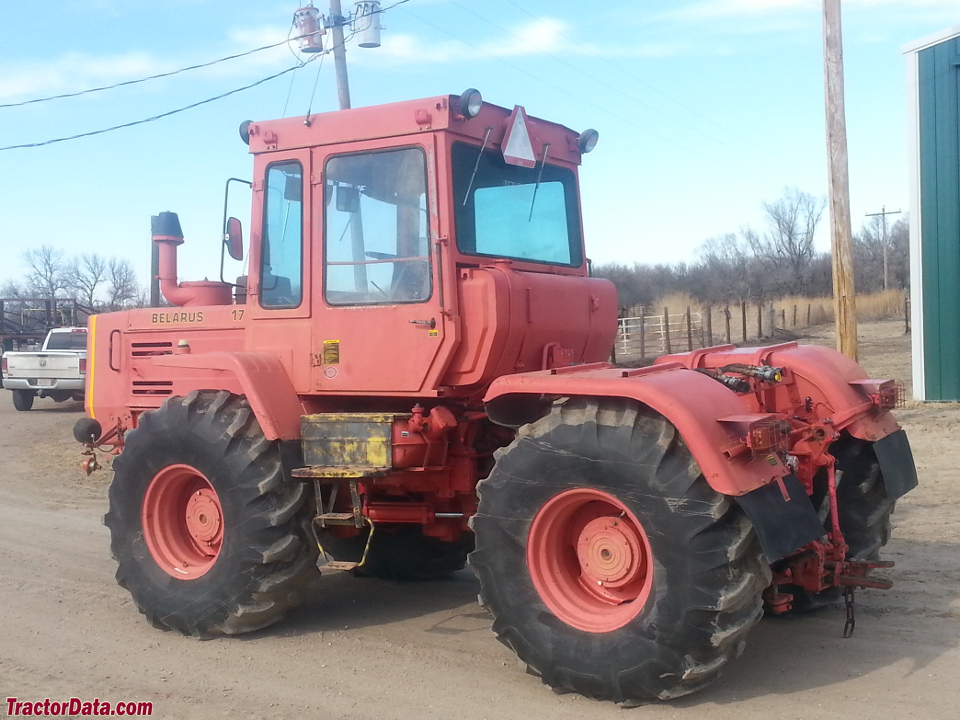

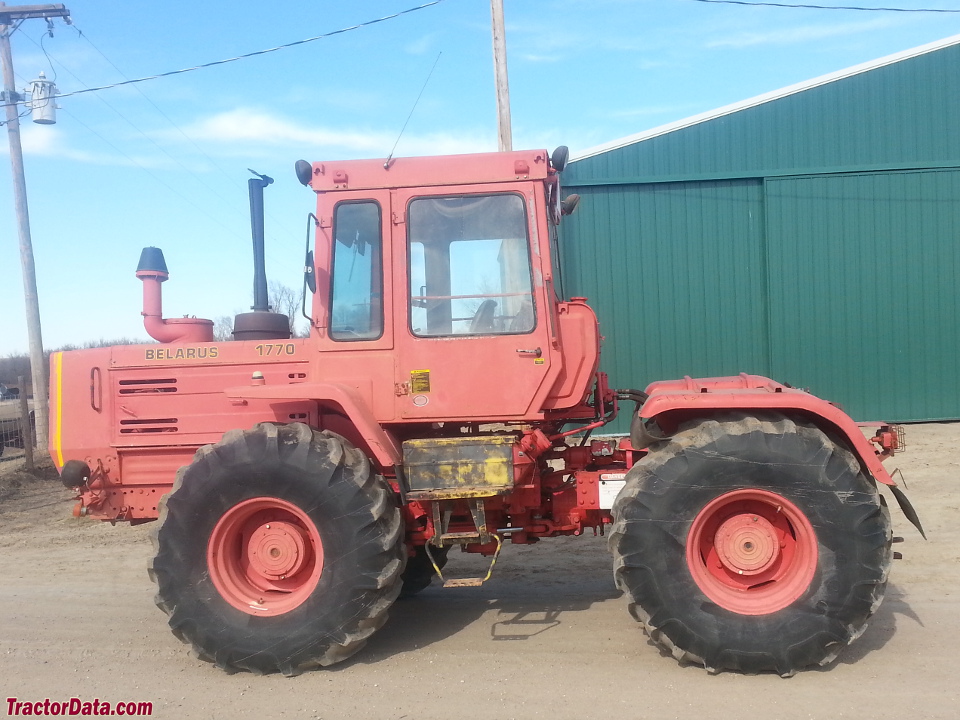

Belarus 1770
Belarus 1770 — Four-wheel Drive (4WD) tractor · 168 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
168 hp
Max power
110.4 kW
Weight
8883 kg
Hover a source tag to verify
Overview
DistributorBelarusReference
ManufacturerXTZReference
Four-wheel Drive (4WD) tractorReference
Built in Kharkiv, UkraineReference
Original price was $44,000 in 1997Reference
Four-wheel driveReference
Steeringarticulated hydraulic powerReference
Pneumatic shoe brakesReference
Cab standard.Reference
Engine
Belarus 9.2L 6-cyl dieselReference
Engine138.0 kWReference
Drawbar (claimed)112.6 kWReference
Drawbar (tested)110.4 kWReference
Belarus SMD-63Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled V-6Reference
Displacement9.2 LReference
Bore/Stroke130 x 115 mmReference
Power138.0 kWReference
Fuel systemdirect injectionReference
Compression15:1Reference
Rated RPM2100Reference
Starter volts24Reference
Coolant capacity41.6 LReference
Power at rated engine speed125.0 kWReference
Max power110.4 kWReference
Transmission
12-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears12 forward and 4 reverseReference
Clutchpneumatic dry discReference
PTO & Hydraulics
PTO (claimed)127.5 kWReference
PTO (tested)125.0 kWReference
Hydraulic system38.8 LReference
Typeopen centerReference
Capacity38.8 LReference
Pressure156.9 barReference
Valves2Reference
Pump flow106.7 lpmReference
Rear TypeIIIReference
Rear lift5660 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2025Reference
Engine RPM1000@2050Reference
Power at rated PTO speed127.7 kWReference
Capacities
Fuel314.9 LReference
Dimensions
Wheelbase286 cmReference
Weight8883 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Length612 cmReference
Width240 cmReference
Height316 cmReference
Operating weight8883 kgReference
Front tread185 cmReference
Rear tread185 cmReference
Test results
Diesel 12-speed 4WDMay 7 - 17, 1990Link: Nebraska Tractor Test 1641 fileReference
PTO performanceReference
Fuel use38.2 l/hourReference
Fuel use38.6 l/hourReference
Drawbar performanceReference
Gear 2-2 used for power test.Reference
Max pull8364 kgReference
Gear 1-2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
