Tractor · 1995Unverified

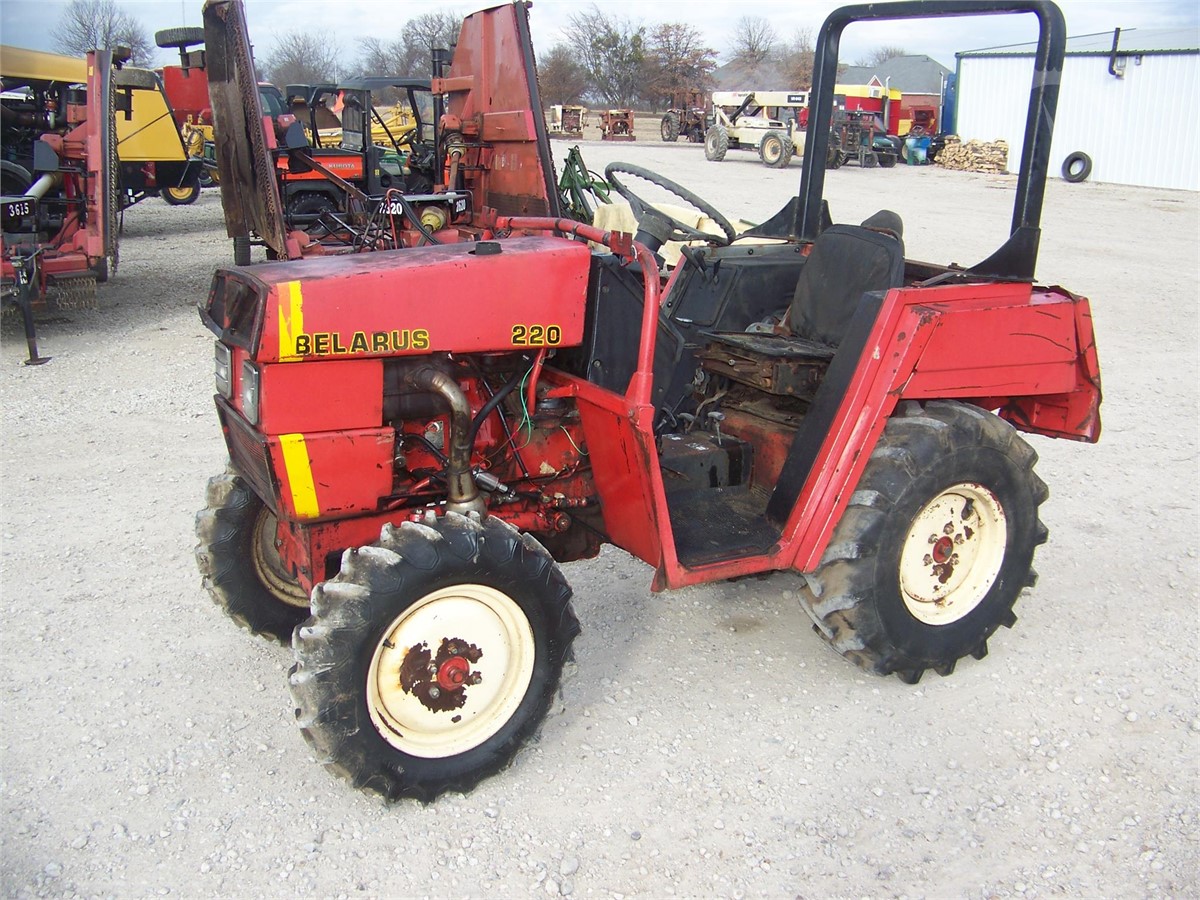

Belarus 220
Belarus 220 — 200 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1230 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Compact Utility tractorReference
Built in Minsk, BelarusReference
Original price was $8,300 in 1996Reference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Slavia 1.1L 2-cyl dieselReference
Engine (gross)16.4 kWReference
Slavia 2S90AReference
dieselReference
2-cylinderReference
air-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke90 x 90 mmReference
Power (gross)16.4 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17.6:1Reference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.9 LReference
Transmission
16-speed gearReference
TypegearReference
Gears16 forward and 8 reverseReference
Clutchmechanical dry discReference
Oil capacity3.8 LReference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Hydraulic system8.3 LReference
Typeopen centerReference
Capacity8.3 LReference
Pressure160.0 barReference
Valves1Reference
Pump flow15.9 lpmReference
Rear TypeIReference
Rear lift453 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2857Reference
Engine RPM1000@2921Reference
Capacities
Fuel30.3 LReference
Dimensions
Wheelbase164 cmReference
Weight1230 kgReference
Front tire5.5-16Reference
Rear tire12.4-16Reference
Ag front5.5-16Reference
Ag rear12.4-16Reference
Length270 cmReference
Width122 cmReference
Height (ROPS)204 cmReference
Shipping weight1230 kgReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 11.2-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
