Tractor · 1998Unverified

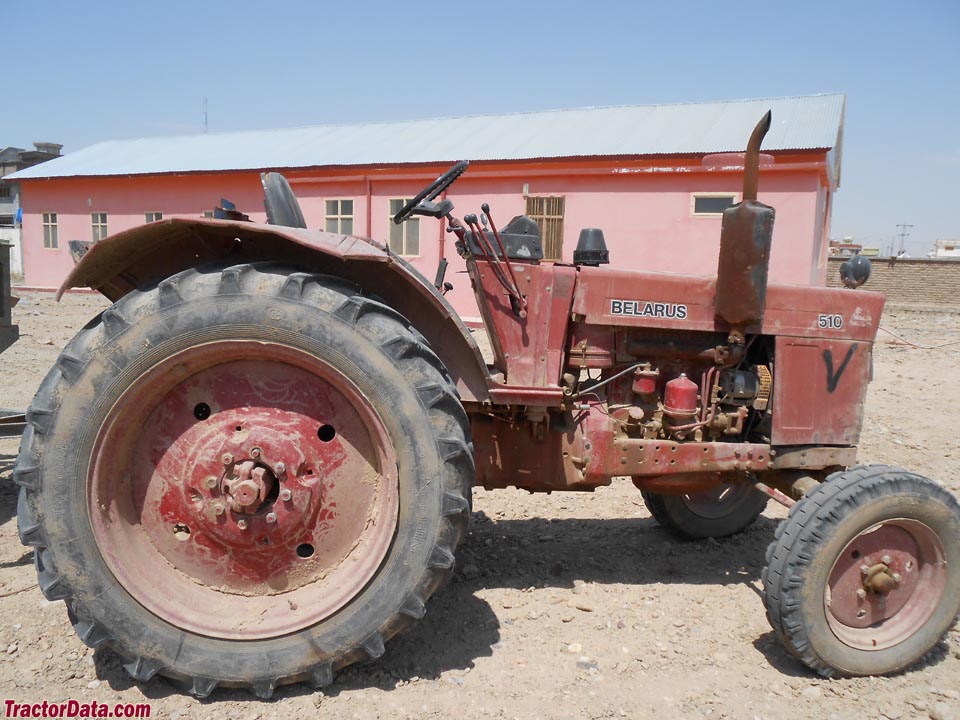

Belarus 510
Belarus 510 · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
3175 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Built in Minsk, BelarusReference
Original price was $13,000 in 1999Reference
Two-wheel driveReference
ROPS.Reference
Variants
5102WDReference
5124WDReference
Engine
Belarus 4.8L 4-cyl dieselReference
Fuel tank128.7 LReference
Engine46.2 kWReference
Belarus D-244Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Power46.2 kWReference
Compression16:1Reference
Rated RPM1700Reference
Starter volts12Reference
Coolant capacity15.1 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow42.8 lpmReference
Rear TypeIIReference
Rear lift1977 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase237 cmReference
Weight3175 kgReference
Front tire9.00-20Reference
Rear tire15.5-38Reference
Ag front9.00-20Reference
Ag rear15.5-38Reference
Length385 cmReference
Width197 cmReference
Height245 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
