Tractor · 1994Unverified

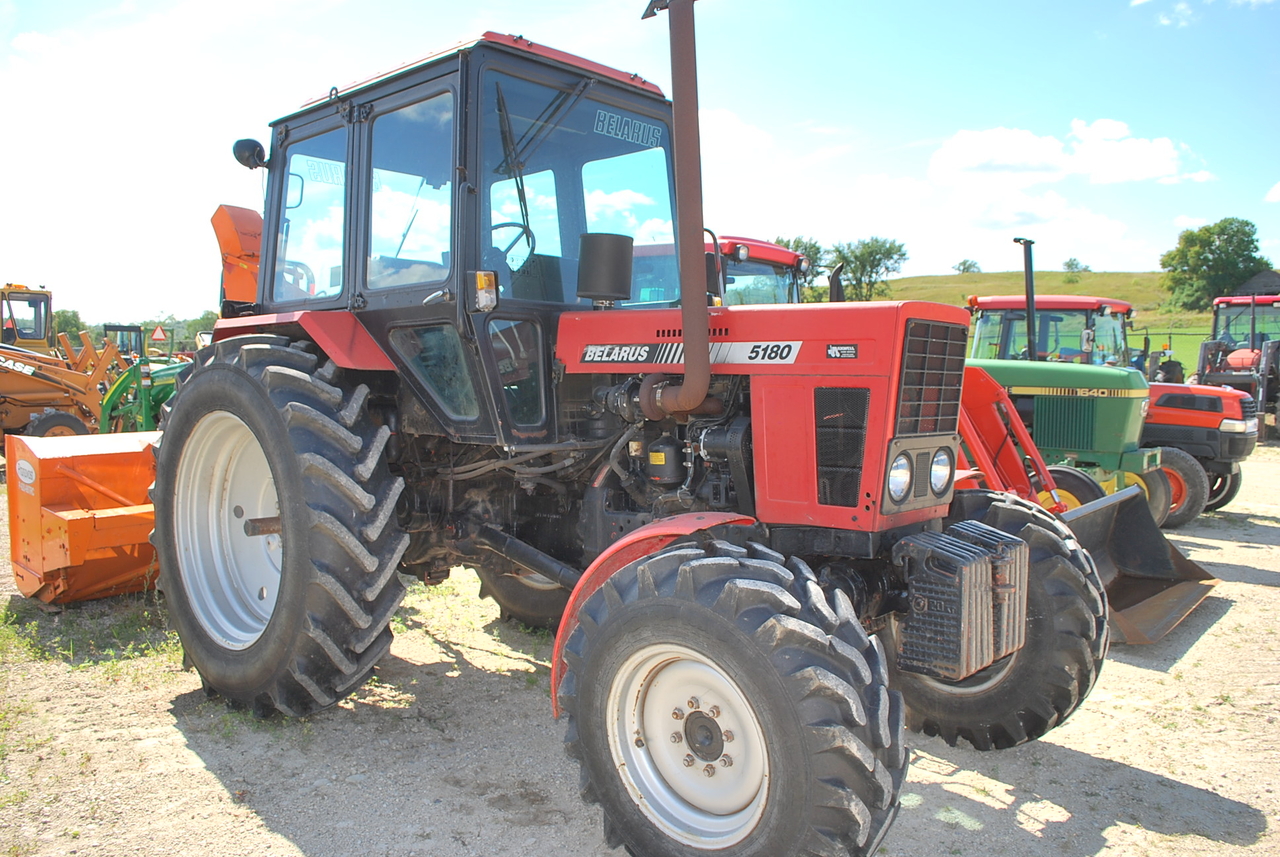

Belarus 5180

Name: Belarus 5180
Brand: Belarus

Belarus 5180 · 85 hp. Reference specifications; pending source verification.

The Belarus 5180 is a tractor with an engine rating of approximately 85 hp, falling within the mid-range of its class. It was manufactured from 1994 to 1995. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 3719 kg, and it is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

85 hp

Weight

3719 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

85 hp

Recorded weight

3719 kg

Transmissions

18-speed

Production years

1994-1995

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBelarusReference

Four-wheel driveReference

Differential lockhydraulic rear lockReference

Steeringhydrostatic powerReference

Mechanical dry disc brakesReference

Cab standard.Reference

Engine

Belarus 4.8L 4-cyl dieselReference

Belarus D240Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.8 LReference

Bore/Stroke110 x 125 mmReference

Fuel systemdirect injectionReference

Air cleaneroil bath with pre-cleanerReference

Compression16:1Reference

Rated RPM2200Reference

Idle RPM600-2380Reference

StarterelectricReference

Starter volts24Reference

Oil capacity15.0 LReference

Coolant capacity19.0 LReference

Transmission

18-speedReference

Gears18 forward and 4 reverseReference

Clutchdry discReference

Oil capacity40.0 LReference

Nine gears in two ranges.Reference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

Hydraulic system18.2 LReference

Typelive open centerReference

Capacity18.2 LReference

Pressure193.1 barReference

Valves2Reference

Pump flow37.5 lpmReference

Rear TypeIIReference

Rear lift1995 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel108.3 LReference

Dimensions

Wheelbase244 cmReference

Weight3719 kgReference

Front tire11.2x20Reference

Rear tire18.4x34Reference

Standard tires (ag)Front: 11.2x20. Rear: 18.4x34Reference

Length392 cmReference

Width196 cmReference

Height (hood)163 cmReference

Height (cab)275 cmReference

Shipping weight3719 kgReference

Ground clearance46 cmReference

Front tread145 to 180 cmReference

Rear tread145 to 210 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Batteries2Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
