Tractor · 1994Unverified

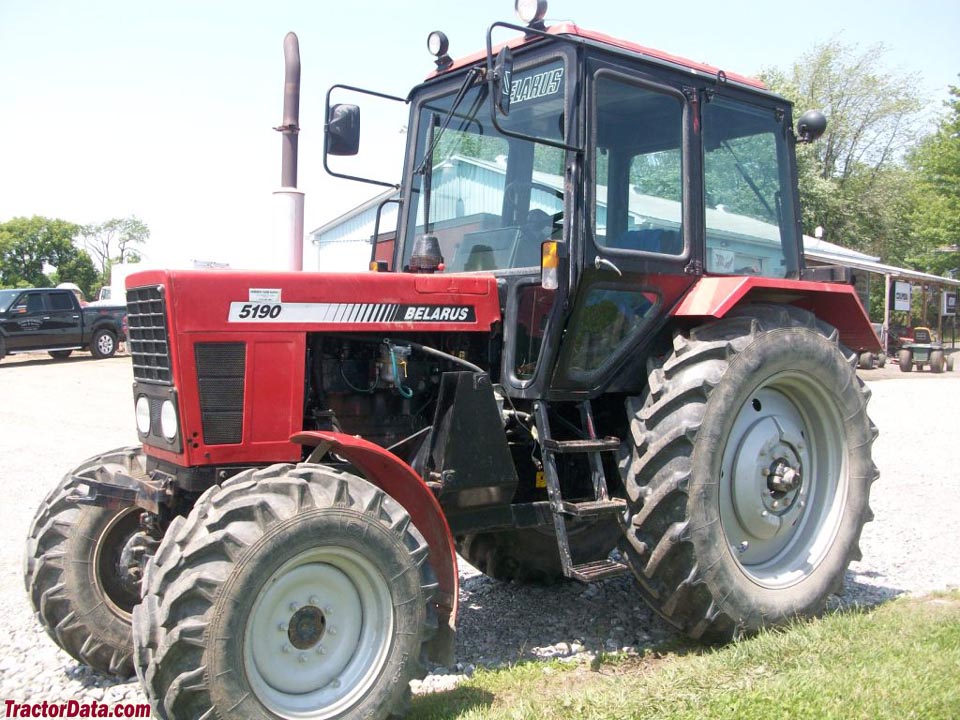

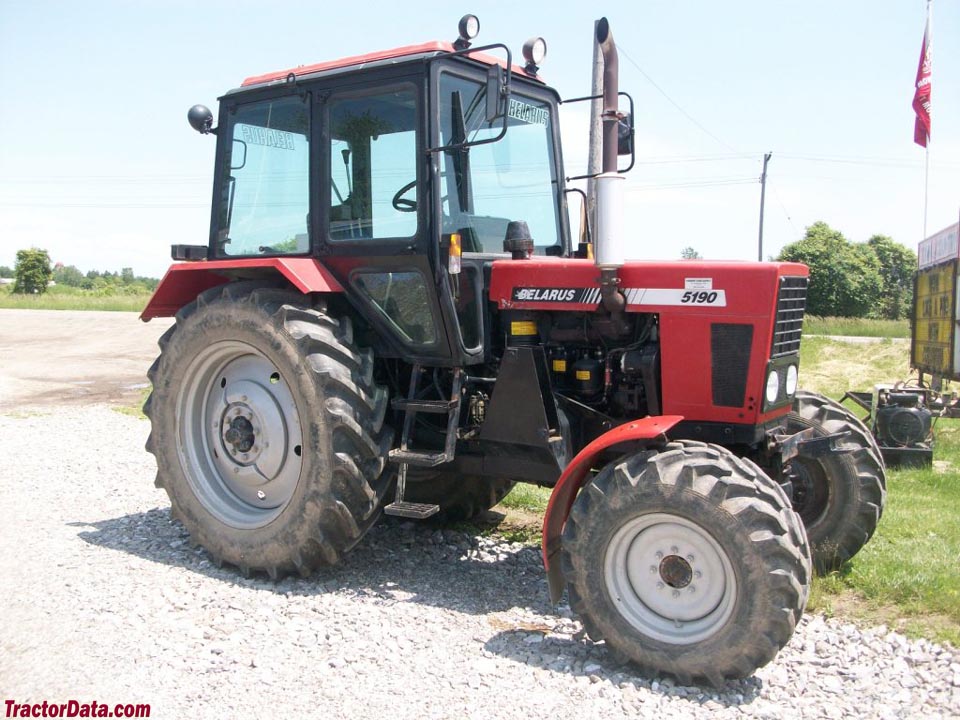

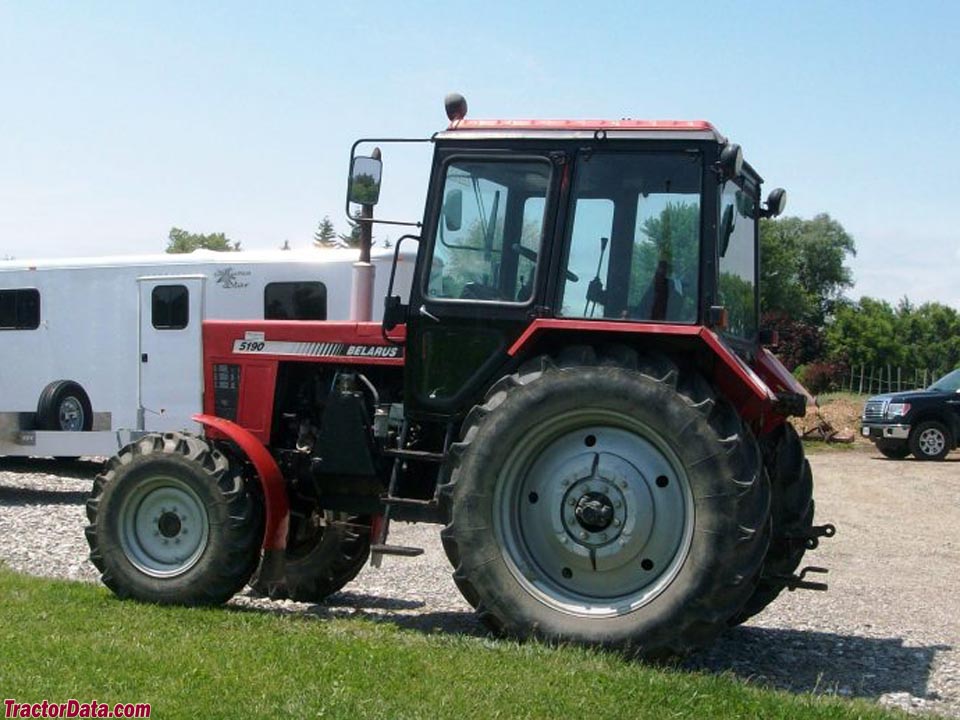

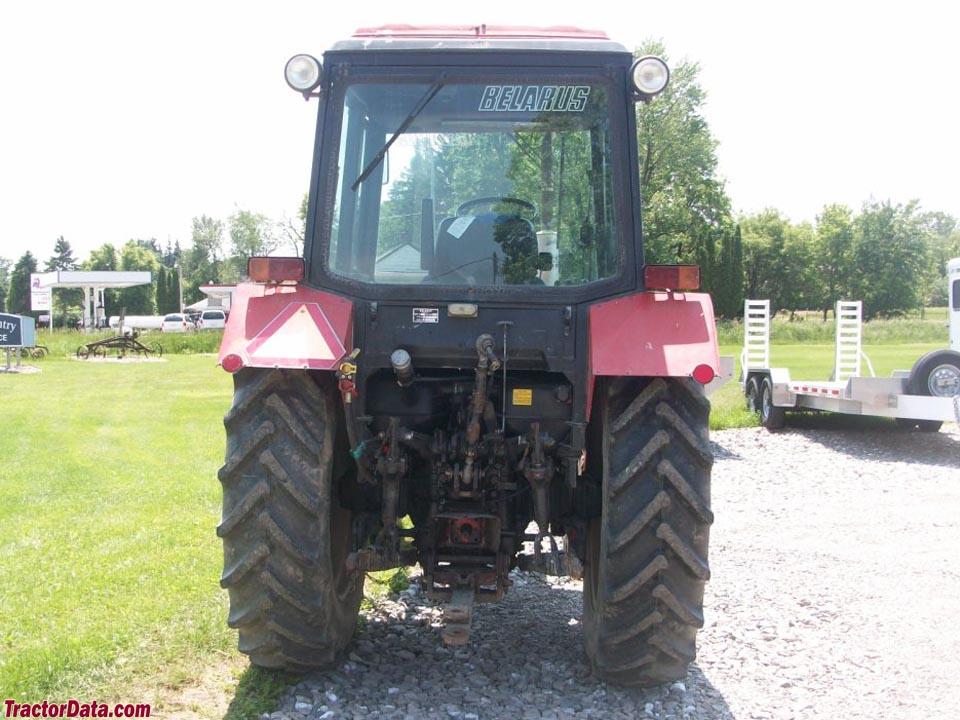

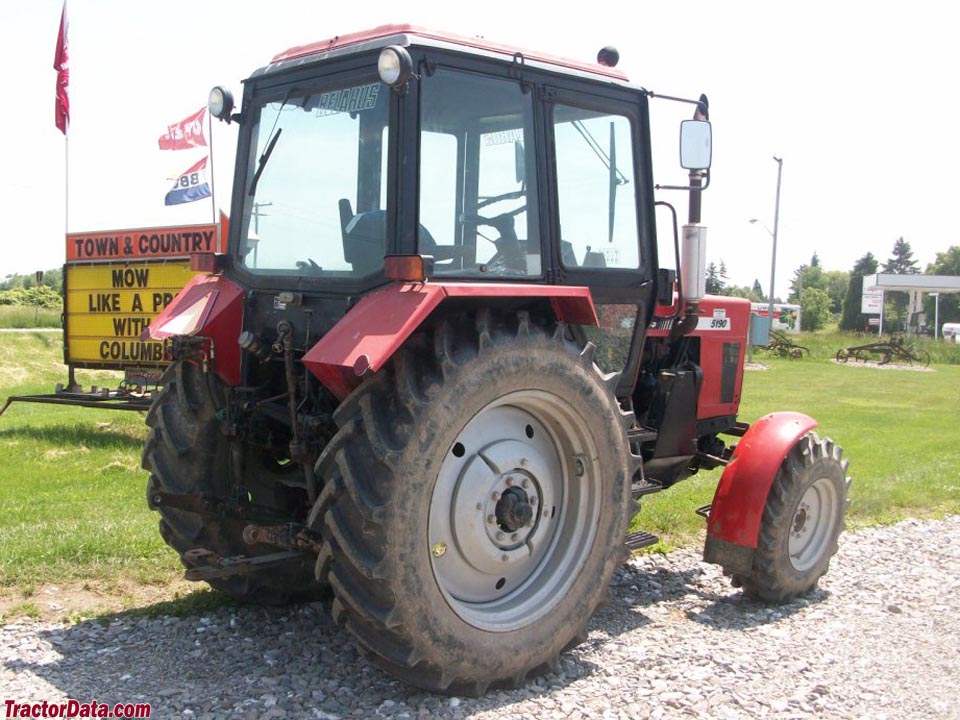

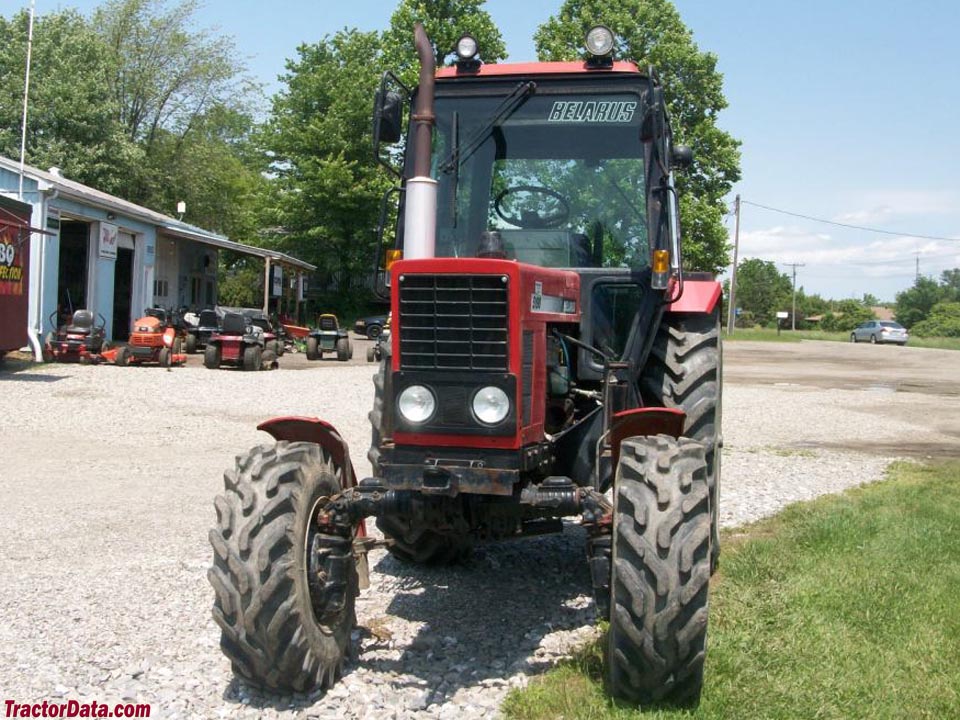

Belarus 5190
Belarus 5190 · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
3719 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Four-wheel driveReference
Differential lockhydraulic rear lockReference
Steeringhydrostatic powerReference
Mechanical dry disc brakesReference
Cab standard.Reference
Engine
Belarus 4.8L 4-cyl dieselReference
Belarus D245.5Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Fuel systemdirect injectionReference
Air cleaneroil bath with pre-cleanerReference
Compression16:1Reference
Rated RPM1800Reference
Idle RPM600-1950Reference
StarterelectricReference
Starter volts24Reference
Oil capacity15.0 LReference
Coolant capacity19.0 LReference
Transmission
18-speedReference
Gears18 forward and 4 reverseReference
Clutchdry discReference
Oil capacity40.0 LReference
Nine gears in two ranges.Reference
PTO & Hydraulics
PTO (claimed)69.4 kWReference
Hydraulic system18.2 LReference
Typelive open centerReference
Capacity18.2 LReference
Pressure193.1 barReference
Valves2Reference
Pump flow37.5 lpmReference
Rear TypeIIReference
Rear lift1995 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel108.3 LReference
Dimensions
Wheelbase244 cmReference
Weight3719 kgReference
Front tire13.6x20Reference
Rear tire16.9x38Reference
Standard tires (ag)Front: 13.6x20. Rear: 16.9x38Reference
Length392 cmReference
Width196 cmReference
Height (hood)163 cmReference
Height (cab)275 cmReference
Shipping weight3719 kgReference
Ground clearance46 cmReference
Front tread145 to 180 cmReference
Rear tread145 to 210 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
