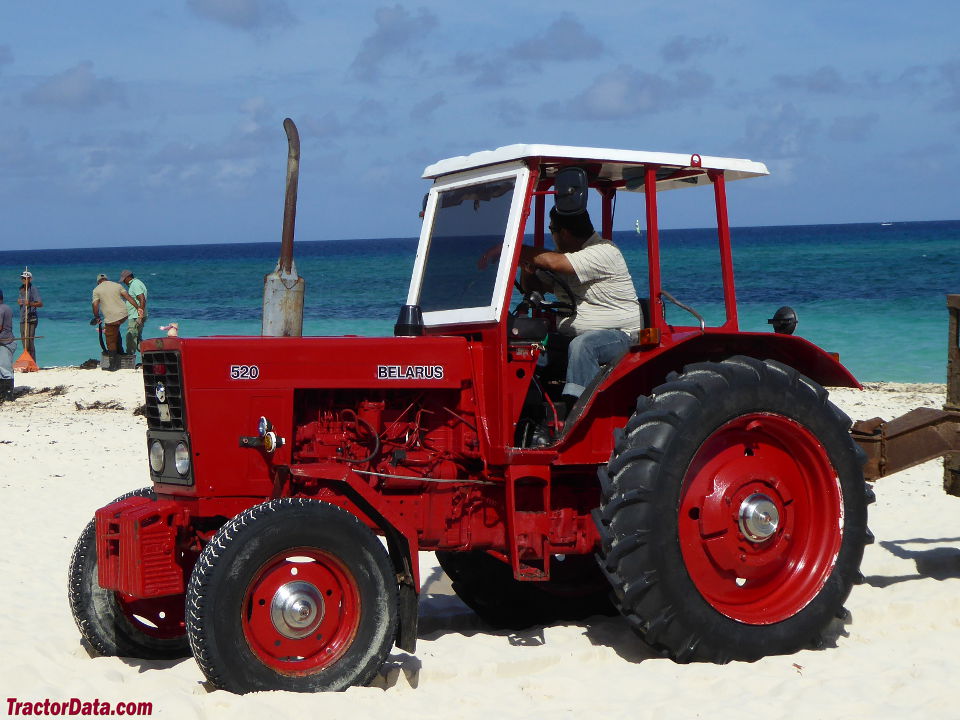

The Belarus 520 is a compact tractor model rated at 58 hp, featuring a 4-cylinder diesel liquid-cooled engine. It was manufactured from 1979 to 1991 and is equipped with four-wheel drive and a 9-speed gearbox. The listed weight of the tractor is 2948 kg, suitable for jobs spanning approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
2948 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
58 hp
Recorded weight
2948 kg
Transmissions
9-speed
Production years
1979-1991
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Built in Minsk, BelarusReference
Original price was $8,600 in 1991Reference
Four-wheel driveReference
Open operator station.Reference
Variants
5002WDReference
5204WDReference
Engine
Belarus 4.7L 4-cyl dieselReference
Engine48.5 kWReference
BelarusReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power48.5 kWReference
Compression16:1Reference
Coolant capacity20.0 LReference
Transmission
9-speedReference
Transmissionsliding gearReference
Gears9 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)43.3 kWReference
Hydraulic system20.4 LReference
Typeopen centerReference
Capacity20.4 LReference
Valves2Reference
Pump flow44.7 lpmReference
Rear TypeIIReference
Rear lift1678 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel129.8 LReference
Dimensions
Wheelbase245 cmReference
Weight2948 kgReference
Front tire11.20-20Reference
Rear tire15.5-38Reference
Ag front11.20-20Reference
Ag rear15.5-38Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
