Tractor · 1983Unverified

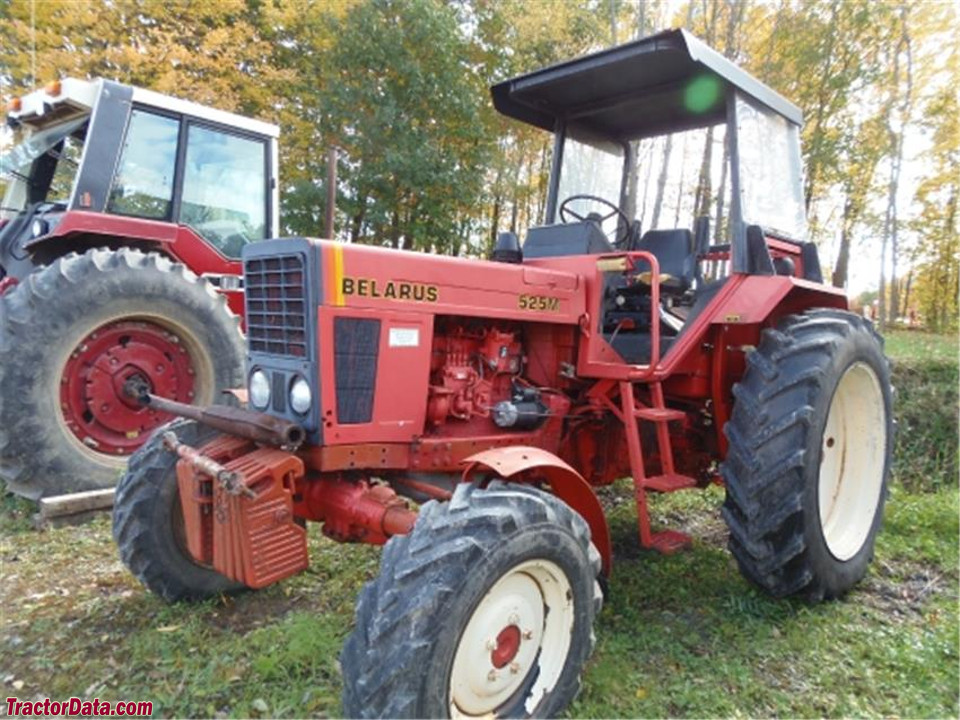

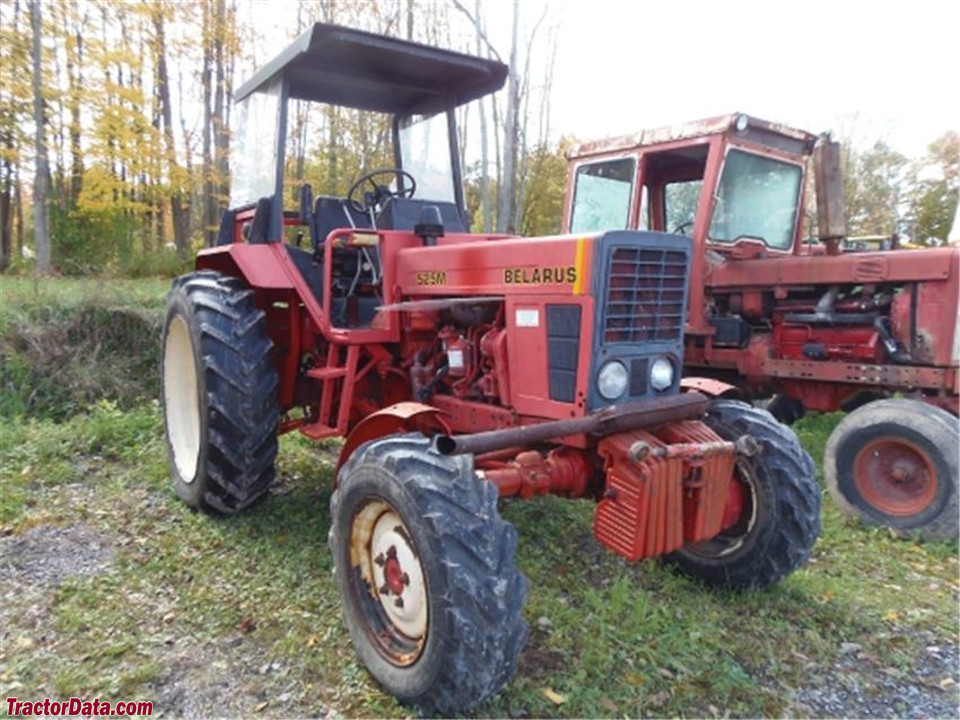

Belarus 525

Name: Belarus 525
Brand: Belarus

Belarus 525 — Progress Series · 63 hp. Reference specifications; pending source verification.

The Belarus 525 is a compact tractor model with an engine rating of 63 hp. It was produced between 1983 and 1996. The tractor features a 4-cylinder diesel liquid-cooled engine, coupled with a 9-speed gearbox and four-wheel drive. Its listed weight is 2948 kg, suitable for tasks of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

63 hp

Weight

2948 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

63 hp

Recorded weight

2948 kg

Transmissions

9-speed unsynchronized

Production years

1983-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBelarusReference

Built in Minsk, BelarusReference

Original price was $18,000 in 1996Reference

Four-wheel driveReference

Power steeringReference

Mechanical disc brakesReference

Open operator station. Cab optional with air-conditioning.Reference

Variants

5052WDReference

5254WDReference

Engine

MTZ 4.8L 4-cyl dieselReference

Engine48.5 kWReference

MTZ D-60Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.8 LReference

Bore/Stroke110 x 125 mmReference

Power48.5 kWReference

Air cleaneroil bathReference

Compression16:1Reference

Rated RPM1800Reference

Torque267.1 NmReference

Torque RPM1300Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Coolant capacity19.9 LReference

Intake valve clearance0.305 mmReference

Exhaust valve clearance0.305 mmReference

Oil capacity15.1 LReference

Transmission

9-speed unsynchronizedReference

TypeunsynchronizedReference

Gears9 forward and 2 reverseReference

Oil capacity39.7 LReference

Oil typeSAE 80-90 or 90 GL-5Reference

Tractor must be stopped and clutch used to change gears or ranges. With the shift lever in neutral and clutch pressed, a knob on top can be rotated to select range, then the lever can be moved to select the gear.Reference

PTO & Hydraulics

PTO (claimed)47.0 kWReference

Hydraulic system17.0 LReference

Typeopen centerReference

Capacity17.0 LReference

Pressure196.5 barReference

Valves2Reference

Pump flow39.7 lpmReference

Steering flow20.8 lpmReference

Steering press.103.4 barReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)1678 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1630Reference

Engine RPM596@1800Reference

Capacities

Fuel128.7 LReference

Dimensions

Wheelbase245 cmReference

Weight2948 kgReference

Front tire11.20-20Reference

Rear tire15.5-38Reference

Ag front11.20-20Reference

Ag rear15.5-38Reference

Length374 cmReference

Height (hood)175 cmReference

Height (ROPS)271 cmReference

Shipping weight2948 kgReference

Max weight5443 kgReference

Clearance (front axle)45 cmReference

Clearance (rear axle)60 cmReference

Clearance (drawbar)30 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Batteries2Reference

Battery CCA900Reference

Battery volts6Reference

Speeds

15.8x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
