Tractor · 1996Unverified

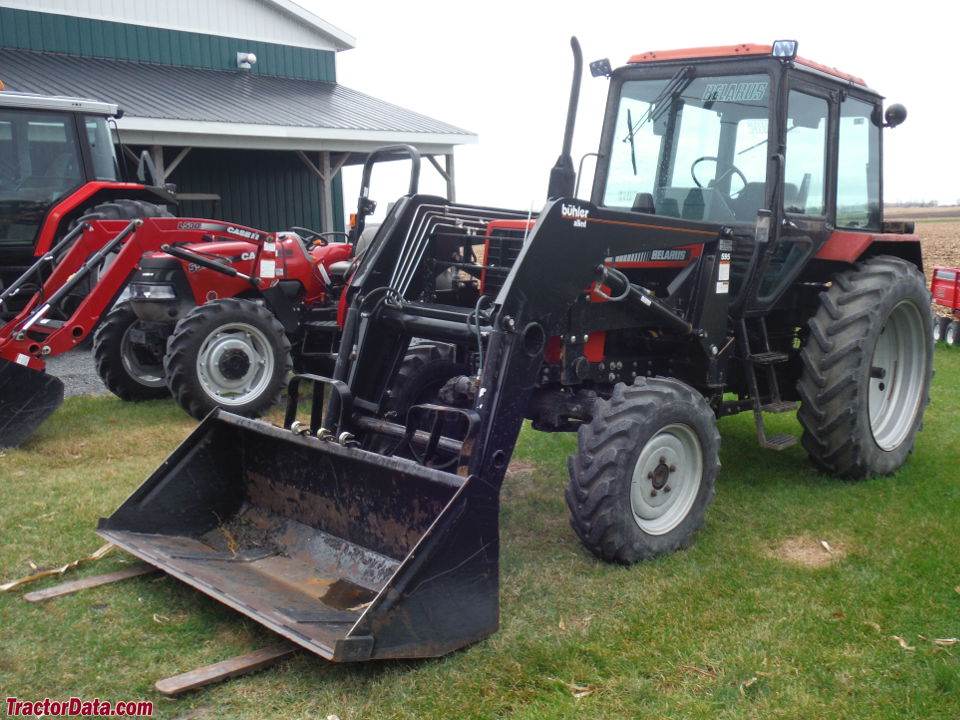

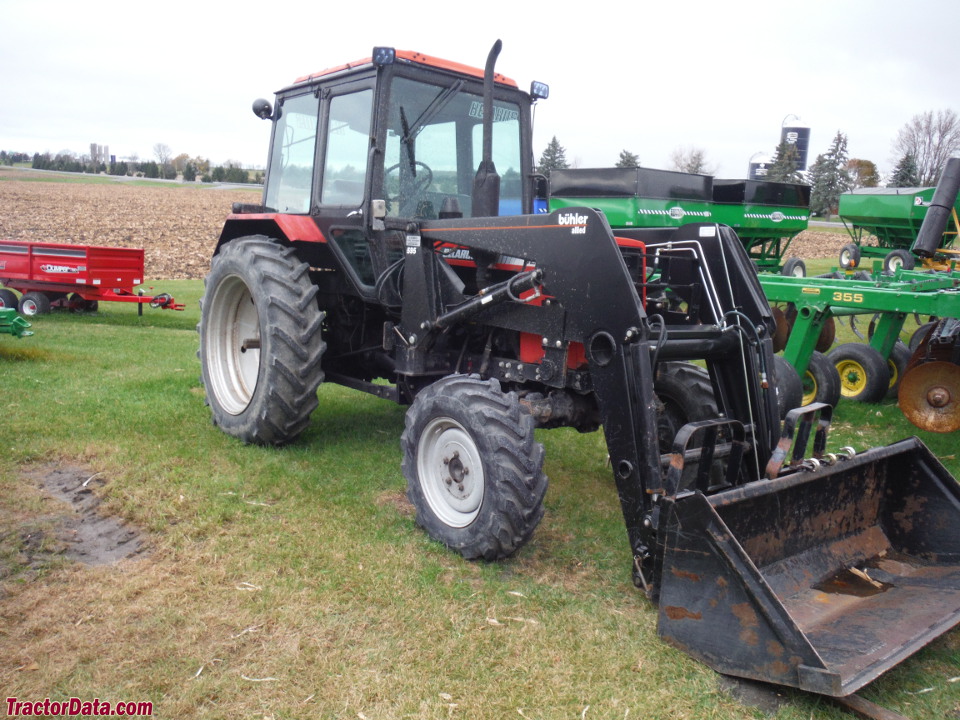

Belarus 5260

Name: Belarus 5260
Brand: Belarus

Belarus 5260 · 65 hp. Reference specifications; pending source verification.

The Belarus 5260 is a tractor with a rated output of 65 hp, positioning it in the middle of its class in terms of power. Manufactured in 1996, it features a 4-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The tractor's weight falls within the range of 6710 to 7870 pounds. It is designed for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

65 hp

Weight

6710 to 7870 pounds

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

65 hp

Transmissions

18-speed

Production years

1996-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBelarusReference

Two- or four-wheel driveReference

Differential lockhydraulic rear lockReference

Steeringhydrostatic powerReference

Mechanical dry disc brakesReference

Four-post ROPS. Cab optional.Reference

Engine

Belarus 4.8L 4-cyl dieselReference

Belarus D242Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.8 LReference

Bore/Stroke110 x 125 mmReference

Fuel systemdirect injectionReference

Air cleaneroil bath with pre-cleanerReference

Compression16:1Reference

Rated RPM1800Reference

Idle RPM600-1950Reference

StarterelectricReference

Starter volts24Reference

Oil capacity15.0 LReference

Coolant capacity19.0 LReference

Transmission

18-speedReference

Gears18 forward and 4 reverseReference

Clutchdry discReference

Oil capacity40.0 LReference

Nine gears in two ranges.Reference

PTO & Hydraulics

PTO (claimed)48.5 kWReference

Hydraulic system18.2 LReference

Typelive open centerReference

Capacity18.2 LReference

Pressure193.1 barReference

Valves2Reference

Pump flow37.5 lpmReference

Rear TypeIIReference

Rear lift1995 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Capacities

Fuel108.3 LReference

Dimensions

Wheelbase244 cmReference

Weight6710 to 7870 poundsReference

Front tire9.0x20Reference

Rear tire15.5x38 (2WD)Reference

Standard tires (ag)Front: 9.0x20. Rear: 15.5x38 (2WD)Reference

Standard tires (ag)Front: 11.2x20. Rear: 15.5x38 (4WD)Reference

Length392 cmReference

Width196 cmReference

Height (hood)163 cmReference

Height (cab)275 cmReference

Ground clearance46 cmReference

Front tread145 to 180 cmReference

Rear tread145 to 210 cmReference

2WD ROPS Shipping3043 kgReference

2WD Cab Shipping3470 kgReference

4WD ROPS Shipping3243 kgReference

4WD Cab Shipping3569 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Batteries2Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
